Summary of Contents for PDi PDI-P23LCD

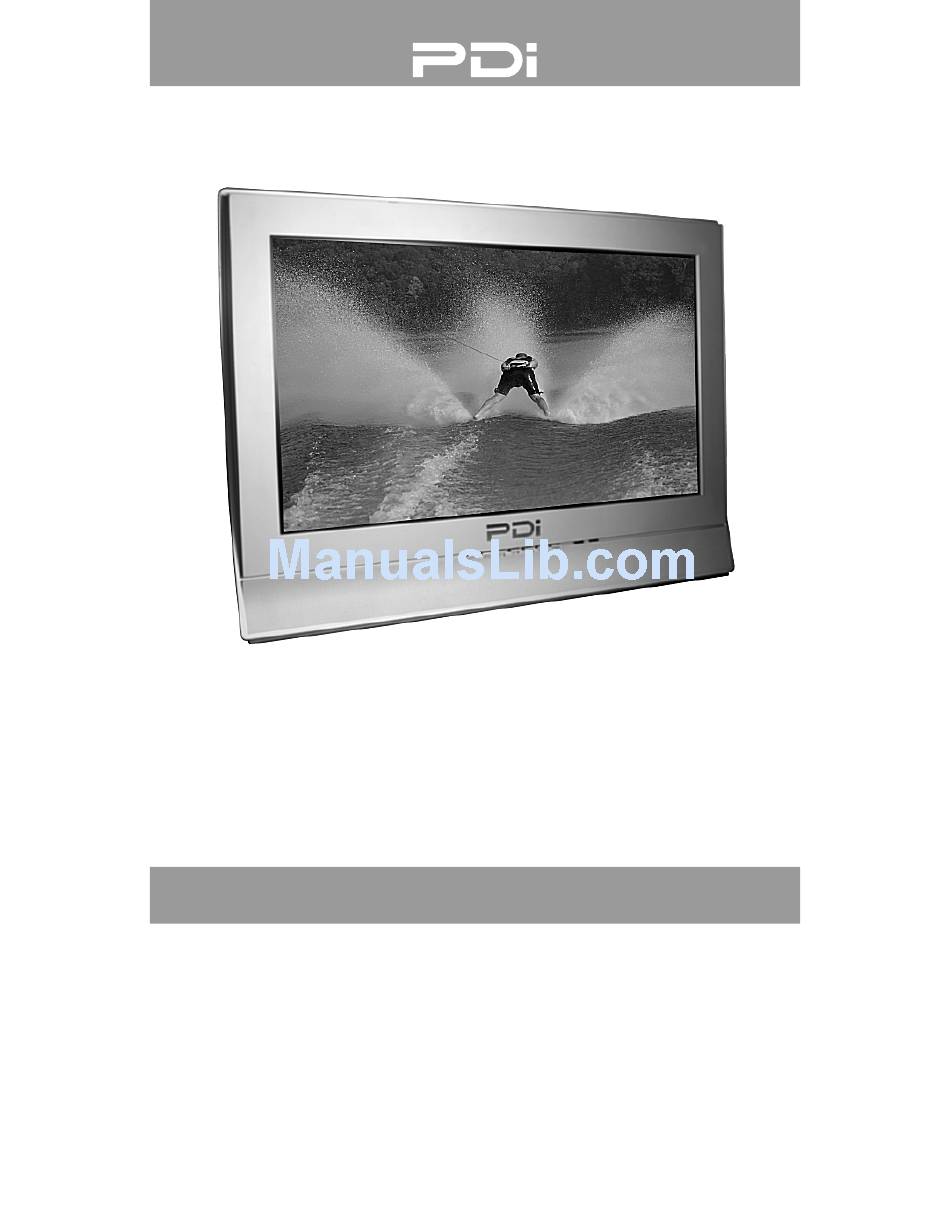

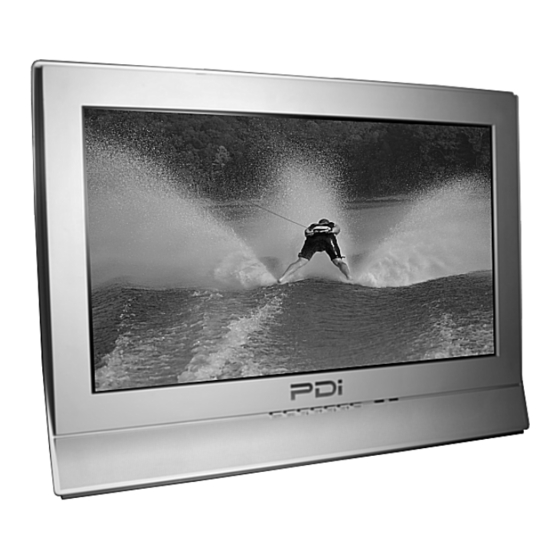

- Page 1 Owner’s Manual 23" WIDE HOSPITAL GRADE LCD TV Model: PDI-P23LCD...
-
Page 2: Warnings
Never remove the back cover of the TV; this can expose you to high voltage and other hazards. If the TV does not operate properly, unplug it and call an authorized service center or PDI . CLEANING AND DISINFECTION Clean the exterior of this television by removing dust with a lint-free cloth. -
Page 3: Warnings
Consult the dealer or an experienced radio/TV technician for help. Underwriters Laboratories The model PDI-P23LCD Hospital Grade LCD TV is a specialized LCD television. This TV is intended for entertainment and educational purposes for use in a hospital, a nursing home, a medical-care center, or a similar health-care facility in which installation is limited to a non-hazardous area in accordance with the National Electrical Code, ANSI/NFPA70. -
Page 4: Important Safety Instructions
Copyright © 2005 by PDI Communication Systems, Inc. All rights reserved. DISCLAIMER The author and publisher have used their best efforts in preparing this manual. PDI Communication Systems, Inc. makes no representation or warranties with respect to the accuracy or completeness of... -
Page 5: Table Of Contents
Contents Warnings Parental Control Important Safety Instructions TV Rating Contents MPAA Rating Supplied Accessories… Block Hour Controls 7,8,9 Parental Lock Installation Change Password Locations Guidelines Glossary and Rating OSHPD (State of California Only) Other Functions Cable System Grounding PIP Function Wall Mounting TV with the Supplied Bracket Viewing the PIP Picture Exploded View... -
Page 6: Supplied Accessories
Supplied Accessories The following accessories are provided with the product. 1. AC Cord 2. Owner’s manual 3. Mounting Brackets & Hardware (Not included with the “-NB”model) Pillow Speaker Jumper (Not included with the “-NB”model) Document Number PD196-086 Rev 2... -
Page 7: Controls
Controls 1. ON/OFF Switches TV set on or off. 2. MENU Displays a menu. 3. + CH - (Program Up/Down) Selects a channel or menu item. 4. + VOL - (Volume Up/Down) Adjusts the volume or menu settings. 5. TV/AV Selects TV, VIDEO, S-VIDEO, RADIO (Only when the Radio is set to On), PC ANALOG, PC DIGITAL or DTV mode. -
Page 8: Controls 7
Controls All the functions can be controlled with the remote control. Some functions can also be adjusted with the buttons on the front panel of the set. NOTE: A remote control is NOT packed with each TV. The remote control must be ordered separately. Remote control Before you use the remote control, please install the batteries. -
Page 9: Controls 7
Controls 12. VOL▲▼ (Volume Up/Down) Adjusts the sound level. Adjusts menu settings. 13. TV/PC Selects TV or PC mode directly. 14. PSM (Picture Status Memory) Recalls your preferred picture setting. 15. SSM (Sound Status Memory) Recalls your preferred sound setting. 16. -
Page 10: Installation
OSHPD (State of California Only) The combined weight of the PDI-P23LCD TV and wall mount totals less than 20 pounds. At the time of this writing, the involvement of a written, submitted, reviewed, and approved plan by OSHPD is not required to install the PDI- P23LCD TV in the state of California. -
Page 11: Wall Mounting Tv With The Supplied Bracket
INSTALLATION Wall Mounting TV with the Supplied Bracket Refer to Figure 1. Select a location on the wall 7½ inches or greater below the ceiling. Position the Wall Bracket and 7 ½’’ locate two mounting holes. Secure the bracket to the wall (mounting hardware is not included). -
Page 12: Exploded View
INSTALLATION Exploded View Back Mount M4 Screws (4) Wall Bracket CATV Coax Connector (Coax Not Shown) Pilfer Screws (2) AC Power Cord Pillow Speaker Jumper Figure 2 Document Number PD196-086 Rev 2... -
Page 13: Across-Room Wiring
A ¼” stereo style pillow speaker (pendant control) jack is located on the TV’s connector panel on the backside. The PDI-P23LCD is designed to work with either a digital pillow speaker or a single-button analog (switch-style) pillow speaker. The PDI-P23LCD also supports certain style pillow speakers with a number pad for direct channel access. -
Page 14: Basic Operation
Basic Operation Turning the TV On and Off The AC power cord must be plugged into a powered AC wall outlet and connected to the TV. A LED indicator will light RED on the front panel of the TV indicating proper AC power to the television. -
Page 15: On Screen Menus And Displays
On Screen Menus and Displays Menu navigation Press the MENU button to display main menu. Press the CH▲▼ button to select menu’s Picture, Sound, Special, Setup, Service Setup. Adjust each menu with the VOL◄► button. Press the MENU button to return to preceding Menu. -
Page 16: Setting Up Tv Channels
Setting up TV Channels Three different Service Levels (banks) are available to hold channels, Free, Basic, and Premium. Channels can be programmed using either an Automatic or Manual method. Auto Program Automatically memorizes all of the receivable channels on a hospital’s cable TV system. Press the MENU Button on the remote. -
Page 17: Manual Program
Setting up TV Program Manual Program Manual Program allows you to manually add or delete channels within a particular Service Level and also add or edit channel name labels. Tune to the channel you wish to add or delete. Press the MENU button. Select the Setup menu. -
Page 18: Picture Controls
Picture Control You can adjust t h e picture Contrast, Brightness, Color, Sharpness and Tint to the levels you prefer or use preset factory settings. Picture Press the MENU Button. Select the Picture menu. Press CH▲▼ buttons to select a picture item. -
Page 19: Equalizer
Sound Control You can select factory preset sound responses - Flat, Music, Movie, Speech or create a custom User sound response using the Equalizer menu. Equalizer Press the MENU button on the remote. Select the Sound menu. Press the CH▲▼ button and select Equalizer. -
Page 20: Avl (Automatic Volume Level)
Sound Control AVL (Automatic Volume Level) Automatic Volume Level automatically limits the volume level to two-thirds of maximum loudness. This feature prevents sound blasting during commercials. Press the MENU button. Select Sound from the menu. Press the CH▲▼ button and select AVL. Press VOL◄►... -
Page 21: Special Functions
Special Functions Clock Setting the Clock is necessary in order to use the various timer features of the TV. The TV can be programmed to turn itself On and Off at specified times. NOTE: On screen time display is not available with this model television. Press the MENU button. -
Page 22: Auto Sleep
Special Functions Auto Sleep If you select Auto Sleep On the set will automatically turn itself Off approximately ten minutes after a TV Channel stops broadcasting. This setting helps reduces power consumption. Press the MENU button. Select the Special menu. Press the CH▲▼... -
Page 23: Auto Power On
Special Functions Auto Power on The TV will turn On and stay On whenever electrical power is applied to the set. This feature is useful for activating the TV through a switch controlled wall outlet. When the wall switch is turned On and powers the outlet, the TV turns On also. -
Page 24: Parental Control
Parental Control A parental control feature is available to restrict or block undesirable programs from appearing on the TV. This feature is of particular importance for TV’s installed in pediatric wards. TV Rating Most television programs are now rated. TV Rating allows the TV to selectively present only program content that is unblocked per its preset level. -
Page 25: Mpaa Rating
Parental Control How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA. Next, while the TV-Rating is selected, repeatedly press the VOL buttons. This will cycle through the available sub-ratings (FV, L, S, D or V). A highlighted letter ("U"... -
Page 26: Glossary And Rating
Glossary and Rating MOTION PICTURE ASSOCIATION OF USA (MPAA) RATING SYSTEM Grade Meaning General Content not offensive to most viewers. Audiences Parental Guidance Content is such that parents may not want their Suggested children to view the program. Parental Guidance Program is inappropriate for preteens, with a greater degree PG-13 Suggested... -
Page 27: Other Functions
Other Functions PIP Function PIP provides viewing two separate source inputs on your TV screen at the same time. PIP can only be activated and controlled using the remote control. Viewing the PIP Picture Press the PIP button on the remote control. Press the PIP button on the remote control again, to turn PIP off. -
Page 28: Power On Channel
Service Setup Power On Channel The Power on Channel is used to determine the start up channel of each service level when the TV turns On. This setting is useful for display of hospital welcome channels. Press the MENU button to select the Service Setup menu. -
Page 29: Service Level
Service Option Service Level The TV has four distinct channel memory tiers called Service Levels; Disabled, Free, Basic, and Premium. With Disabled selected, the TV displays a black screen with the message “To use this TV, Please contact a TV representative” for 10 seconds and then shuts itself off. -
Page 30: Radio Control
Radio Control You can listen to FM radio with the TV’s internal radio provided FM radio station signals are present on the hospital’s cable TV system. The Radio must first be enabled in the Special menu. Radio is then added to the TV’s signal source list and can only be accessed using the TV/AV button. -
Page 31: Radio Auto Program
Radio Control Radio Auto Program Press the CH▲▼ button to select Auto Program. Press the VOL◄► button repeatedly to begin Auto Program. The radio automatically scans all available radio stations on the hospital CATV cable system and memorizes them to Program Memory. -
Page 32: External Equipment Connection
External Equipment Connection Additional equipment, such as VCRs, camcorders etc. may be viewed on the television set. Antenna Connection The television’s tuner is used to tune the RF output from any external device capable of providing a modulate RF signal. CAUTION: Some hospital cable systems provide power voltage on the coaxial cable. -
Page 33: Dtv Input
External Equipment Connection DTV Input Connect the DTV video output jacks (Y, Pb, Pr) of the DTV set top box to the DTV Input sockets of the television. Connect the audio cable from the DTV set top box to the Audio Input sockets of the set. -
Page 34: A/V Input
External Equipment Connection A/V INPUT Connect the A/V Out jacks on the VCR to A/V- In jacks on the TV. Press the TV/AV button to select VIDEO mode. Press the PLAY button on the VCR. The VCR playback picture appears on the screen. -
Page 35: Computer Video In
Connecting the PC as a monitor The TV functions as a computer monitor only when set to PC mode using the TV/AV button on the remote control or the TV. Computer Video In Computer video signal connection jacks are provided on the back of the cabinet. -
Page 36: Arc (Aspect Ratio Control)
Connecting the PC as a monitor ARC (Aspect Ratio Control) Selects a screen mode of 4:3 or 16:9. * 4:3 mode : Sets the picture to 4:3 normal mode. * 16:9 mode : Sets the picture to 16:9 wide mode. 4 : 3 16 : 9 Sound adjustment... -
Page 37: Position Adjustment
Connecting the PC as a monitor 13. Select the Input with CH▲▼ button. 14. Press the VOL◄► button to select an Input either PC or Radio. NOTE: With the input set to Radio, TV audio will also be available when using the PIP mode. -
Page 38: Product Specification
Product Specification Model PDI-P23LCD Width 23 ¾” Thickness 3 ¾” Cabinet Dimensions Height 17 ½” Weight 19.15 lbs. Power Requirements 120 VAC, 60 HZ. Television System NTSC Tuner VHF 2-13, UHF 14-69, Cable 01-125 LCD Panel 23” Wide (Diagonal) TFT LCD Panel... -
Page 39: Troubleshooting
Troubleshooting Problem Check Item • Insert the AC power cord plug securely in AC power outlet. • Make sure the TV is not turned off. The front power indicator will No Picture on screen and no sound illuminate RED if the TV is off. from speakers •... -
Page 40: Limited Warranty
As a condition to obtaining warranty service, written notification must be received by PDI within at least ten (10) days after defect is first observed. Repair of said product requires it to be shipped to the PDI factory in Springboro, Ohio. All shipments shall be F.O.B. - Page 41 Blank Page Document Number PD196-086 Rev 2...
- Page 42 Blank Page Document Number PD196-086 Rev 2...
- Page 43 Blank Page Document Number PD196-086 Rev 2...
- Page 44 40 Greenwood Lane Springboro, Ohio 45066 USA 500-0000050630 Document Number PD196-086 Rev 2...
