Better Solutions Are Within Reach
Wall Mounting for CV2600 LCD TV
The CV2600LCD TV is mounted to the wall with a PD168-033 mounting kit. (Purchased separately).
Contact PDi for any questions regarding TV installation.

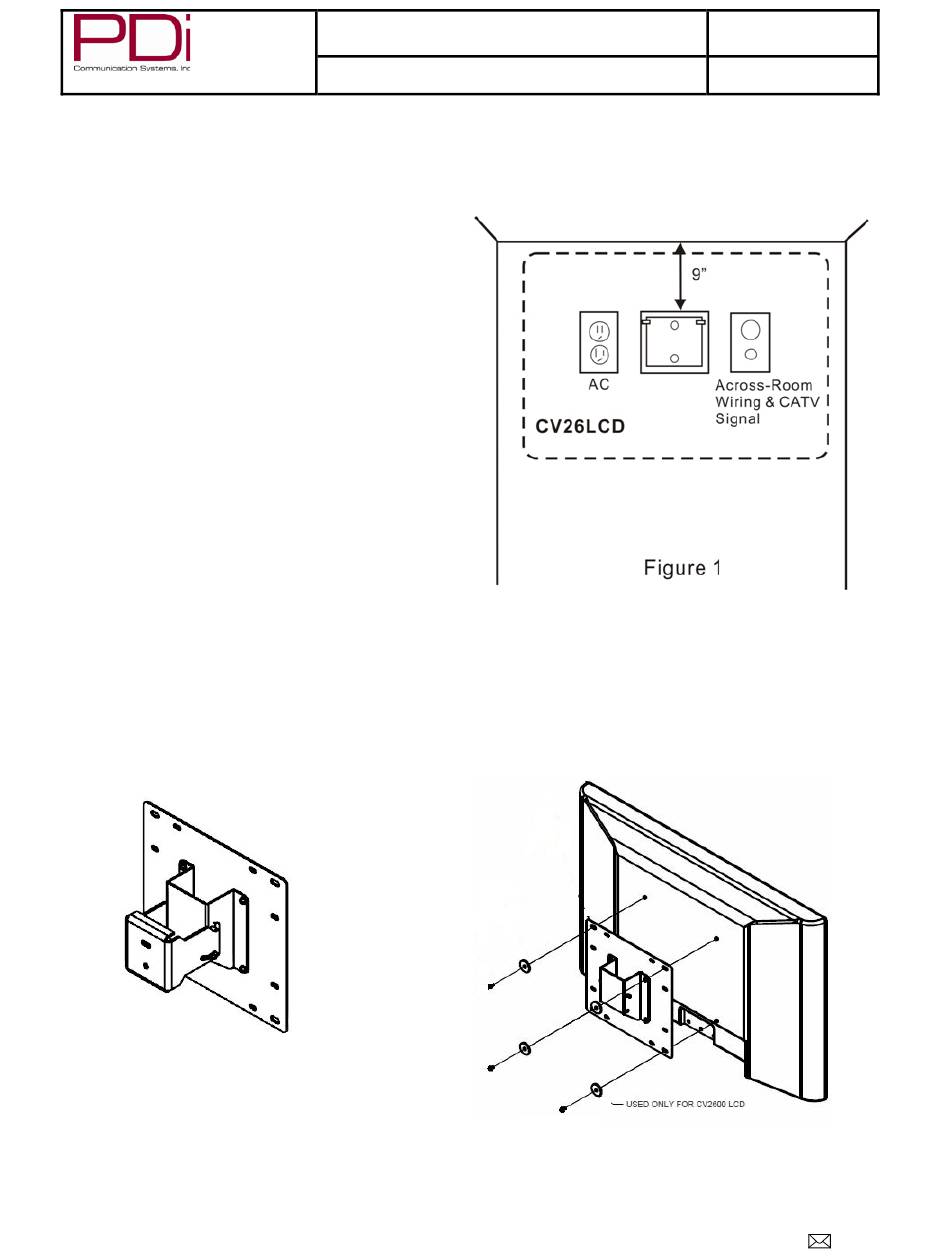

Refer to Figure 1. Select a location on the wall
approximately 9 inches below the ceiling.
NOTE: DO NOT locate AC, Across-Room
Wiring, and CATV Signal outlets below the Wall
Bracket's location as it will cause clearance
issues and interfere with the TV's cabinet when
mounted to the bracket.
2. Position the wall mount and locate the two
mounting holes. Secure the bracket to the wall
(mounting hardware is not included).
3. Refer to Figure 2 and 3. Position the LCD mount
on the LCD TV cabinet.
Attach with the four M4 screws (PDIPPHMSM4X76)
that are provided.
4. Mate the LCD mount to the wall mount, making
sure the pivot pins are retained in the slots.
5. Secure with two 10x32 Pilfer screws
(PDIPPBHSCS103250).
6. The TV's tilt can be adjusted by loosening both
pilfer screws, adjusting tilt, and then tightening the
screws.
Figure 2
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 800-628-9870 FX 937-743-5664
MODEL NUMBER:
CV2600, CV3200
Healthcare LCD TV
TM
Document Number:
PD196-241R2
Page 3 of 9
Figure 3
