Summary of Contents for PDi PDI-CV2600

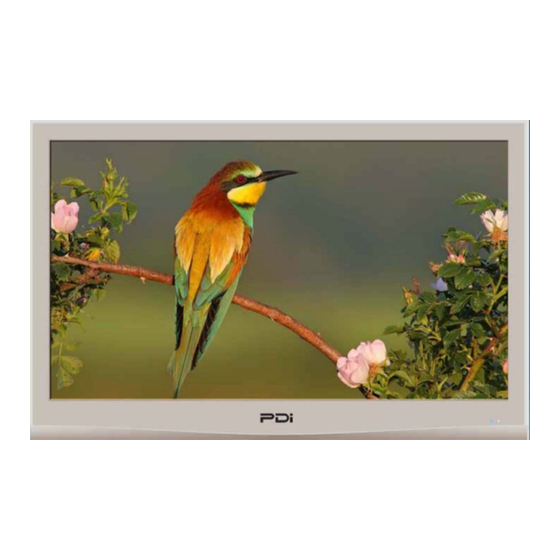

- Page 1 PDI Communication Systems 26” and 32” Healthcare LCD TV User Manual Models PDI-CV2600 PDI-CV3200 Document Number: PD196-167R2 Document Number: PD196-167R2...
-
Page 2: Regulatory Information
Consult the dealer or an experienced radio/TV technician for help. Modifications Any changes or modifications made to this device that are not expressly ap- proved by PDI may void the user’s authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. openings. 2. Keep these instructions. 17. If an outside antenna or cable system is connected 3. Heed all warnings. to the video product, be sure the antenna or cable 4. Follow all instructions. system is grounded so as to provide some protection 5. -
Page 4: Optional Accessories
OPTIONAL ACCESSORIES The following optional accessories are available for your PDI Healthcare television. Patient Remotes Programming Remotes POWER POWER MUTE SETUP TV/AV TV/FM CH LIST POWER MUTE SLEEP LAST TV/AV TV/FM LAST Page Page Down MTS/SAP. PSM. MUTE CV2600 Table Stand CV1003... -
Page 5: Pillow Speaker Connections
Digital style pillow speaker (neither supplied with TV). TV PILLOW SPEAKER WIRING The PDI Healthcare television series utilizes the industry standard 3-wire interface via a 1/4 inch stereo jack located on the back of the TV. Additionally, the TV employes a universal pillow speaker interface that can be configured to operate with many different model pillow speakers. -
Page 6: Tv Controls & Connections
POWER Turns TV On and Off. TV Connections The PDI CV series televisions offer connection jacks for many different types of external devices such as DVD players, Game Boxes, and other similar devices. Connections are located along the back edge of the Television. -
Page 7: Hour Meter
TV Connectors ANT TV/FM F Connector input jack for the hospital cable TV signal. NOTE: FM radio channels are also received on this input. MPEG4 Upgrade USB Port for service use only. CLONING USB Port for cloning the TV. The TV can be programmed (cloned) from information stored on a USB Flash Drive. -
Page 8: Programming The Tv
Programming the TV SETUP Connect the TV to a Cable TV signal before proceeding. Verify the Service Level Free handheld remote control operates the TV. Picture Sound Channels Press the setup button on the remote. Features OSD Language English From the Setup menu, select Channels. Sources FM Radio Position: ... -
Page 9: Pillow Speaker Sound Setup
Pillow Speaker Sound Setup SETUP Proper setup of the TV’s Sound is required for use with a Service Level Free wired Pillow Speaker. Setup involves disabling the TV’s Picture Sound internal speakers and then setting the audio level to the Channels pillow speaker. -
Page 10: Programming The Tv's Fm Radio
Programming the TV’s FM Radio Connect the TV to a Cable TV signal before proceeding. Verify the SETUP handheld remote control operates the TV. Service Level Free Press the setup button on the remote. Picture Sound Channels From the Setup menu, select FM Radio. NOTE: if the FM Radio Features item is non-selectable, enable FM Radio in the Sources menu OSD Language... -
Page 11: Troubleshooting
Troubleshooting Problem CHECK • Ensure the TV is connected to a powered AC outlet. The TV’s front lamp will glow Red when correctly connected to power. • Operate the TV directly by pressing the TV’s POWER button located on No Picture and No Sound the side of the cabinet. -
Page 12: Cloning The Tv - Saving Settings
The TV settings can be saved to a USB Flash Drive and then used to Cloning Main Menu program another television. A specially prepared USB Flash Drive Restore Settings to TV (not supplied) is required. Please contact PDI to purchase this optional Save Settings to USB item. Download Firmware to TV Information SAVING A TV’S SETTINGS... -
Page 13: Cloning The Tv - Restoring Settings
A TV settings once saved to a USB Flash Drive and then be used to Cloning Main Menu program another television. A specially prepared USB Flash Drive (not supplied) is required. Please contact PDI to purchase this optional Restore Settings to TV item. -
Page 14: Tv Menu Navigation
TV Menu Navigation Color Temperature Standard Reddish SETUP Picture Greenish Blueish Service Level Free Brightness User Picture Contrast Sound Color Channel Setup Tint Features Color Temp OSD Language English Sharpness Source Setup PC Analog/HDMI Picture FM Radio Component Input Picture Position: ... - Page 15 TV Menu Navigation- continued SETUP Clear Service Level Con rm Clear Free Programmed Service Level Free Con rmation Basic Blank Picture Premium Blank Sound Channel Setup Features OSD Language English Source Setup FM Radio Position: Position: Yes Exit: SETUP Next: ...
- Page 16 TV Menu Navigation- continued Digital Captions Mode Default Font Default Size Default SETUP Features FG Color Default Service Level Free Power On Caption Mode Last BG Color Default Picture Auto Power On Disabled FG Opacity Default Sound Power Management Disabled BG Opacity Default Channel Setup...
-
Page 17: Tv Menu Explanations
TV Menu Explanations Menu Item Explanation Sub-Item Explanation Setup Service Level 3 programmable Service Levels (banks of channels) plus a Disable service level. Picture Adjusts picture appearance. Brightness Adjust the brightness of the dark areas in the picture. 50% is the default value. Contrast Adjust the brightness of the light areas in the picture. - Page 18 TV Menu Explanations - continued Menu Item Explanation Sub-Item Explanation Channel Setup Programs different channels and sources into each of the 3 service levels Signal Sets the TV to tune 1 of 4 different signal styles: Air, Cable STD, Cable IRC, Cable Auto Program TV automatically scans for active Mode Scan for “Analog Only”, “Digital Only”, or channels and memorizes them into the “Analog and Digital”...
- Page 19 TV Menu Explanations - continued Menu Item Explanation Sub-Item Explanation Parental Control Control Access of TV and Movie content. TV Rating Displays a list of parental TV viewing levels and allows for Blocking or Unblocking of TV content. MPAA Rating Displays a list of parental Movie viewing levels and allows for Blocking or Unblocking of Movie content.
- Page 20 TV Menu Explanations - continued Menu Item Explanation Sub-Item Explanation Features Digital Captions Customize the look of captions when Font Size Default, Small, Standard, Large tuned to a digital channel. Font Style Default, Style 0 thru Style 7 Foreground Color Default, White, Black, Red, Green, Blue, Yellow, Magenta, Cyan Background Color...
- Page 21 TV Menu Explanations - continued Menu Item Explanation Sub-Item Explanation Setup Source Setup The individual auxiliary in- Disabled, Enabled/APO, put connectors on the back Enabled/No APO of the TV can be turned On or Off. The source can also be set to Auto Power Off (APO) after 5 minutes of a no signal condition.
- Page 22 This page intentionally blank. Document Number: PD196-167R2...
- Page 23 IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA, AND CANADA. If this product is found to be defective, PDI will repair or replace defective parts at no charge to the original owner during the warranty period. Such repair and replacement services shall be rendered by PDI or a PDI Authorized Servicer during normal business hours.
- Page 24 PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 Document Number: PD196-167R1.DOC Document Number: PD196-167R2...
