Pillow Speaker - PDi -P15LCDC-ARM User Manual

Connections

Pillow Speaker

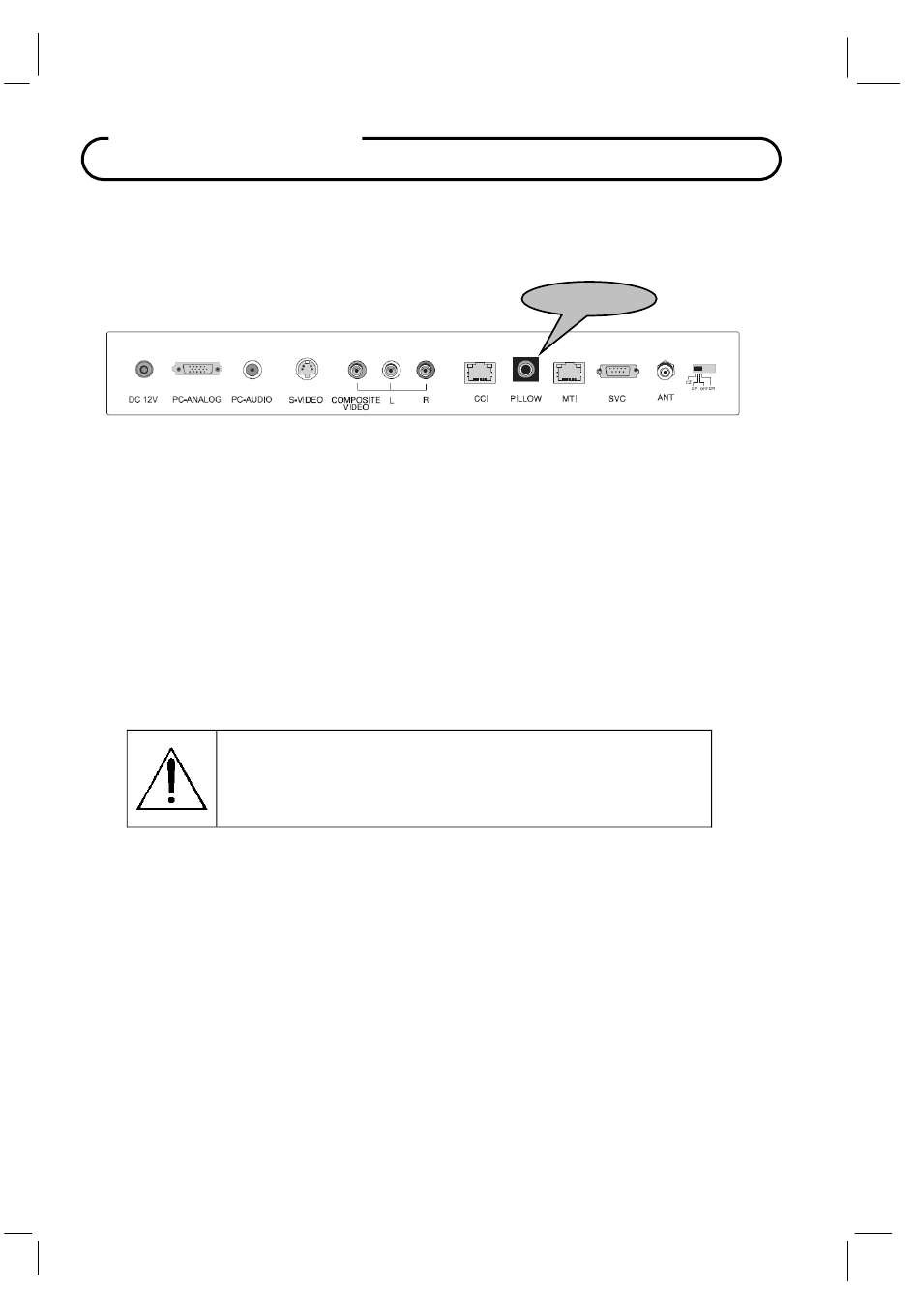

The pillow speaker (pendant control) jack is located on the TV's connector panel. Control of
the TV using an externally wired pillow speaker is possible. Please see the "Installation"
section elsewhere in this manual for wiring details.
1. Select the appropriate brand of digital pillow speaker using the recess slide switch
next to the PILLOW jack.
CZ for Zenith
CP for Philips
CR for RCA
OFF to disable the pillow speaker
For analog style pillow speakers set the switch to either CZ, CP, or CR.
NOTE: The TV is shipped from the factory with the switch in the OFF position.
CAUTION: Confirm pillow speaker type and set the slide switch
appropriately BEFORE connection the pillow speaker to the TV.
Failure to follow this procedure could result in damage to the pillow
speaker and / or TV.
2. Connect the pillow speaker to the PILLOW jack.
3. Operate the pillow speaker and verify correct control.
