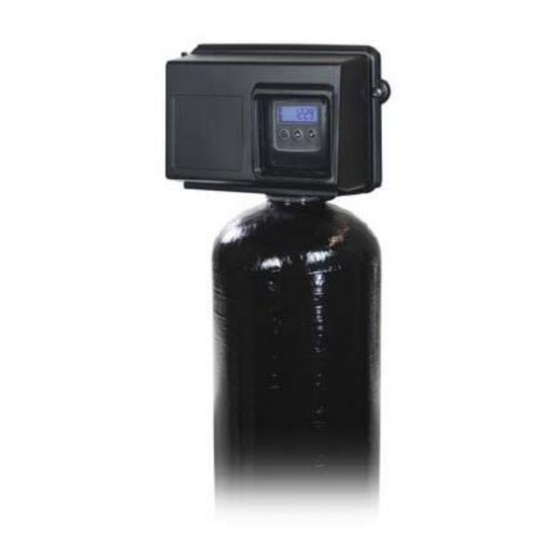

Sulfur Air Charge 2510-SXT
Installation & Start-Up Guide
Thank you for purchasing a Clean Water System! With proper
installation and a little routine maintenance your system will be
providing iron free water for many years.
Please review this start-up guide entirely before beginning to install
your system and follow the steps outlined for best results.
MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO
AVOID BREATHING DUST.
Packing List by Model
1.0 Cubic Foot 2510 SXT Air Charger:
2806-A Soquel Ave Santa Cruz CA 95062
For assistance call: 1-831-462-8500
Email us:
office@cleanwaterstore.com
More information online:
www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems 2510-SXT
Summary of Contents for Clean Water Systems 2510-SXT
- Page 1 Sulfur Air Charge 2510-SXT Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years. Please review this start-up guide entirely before beginning to install your system and follow the steps outlined for best results.
- Page 2 Packing List by Model 1.0 Cubic Foot Size System Air Charger Sulfur Filter 5900e-AIR control valve w/ bypass assembly and pipe connector kit (1” or 3/4”) 9” x 48” standard filter tank with distributor tube Blue media funnel for adding Air Charger Sulfur Filter media 1.0 cubic feet of Jacobi Catalytic Carbon media 12 lbs.
- Page 3 Sulfur Air Charge 2510-SXT Installation & Startup Guide The Air Charger AIO Filter, when properly applied, is an efficient and cost effective system for the removal of iron and sulfur. The AIO control valve maintains a compressed “air pocket” in the top of the tank while the system is in service. As the water passes thru the air pocket, iron and sulfur are oxidized.
- Page 4 Sulfur Air Charge 2510-SXT Installation & Startup Guide Pre-Installation 1. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentially drained.
- Page 5 Sulfur Air Charge 2510-SXT Installation & Startup Guide Fig 2 - AIO 2510 SXT Control Valve, Back View Insure the brine line check valve with screen is installed on the brine valve (See Fig. 2) This is the AIR DRAW point of entry.
- Page 6 System Limitations • The Air Charger Filter utilizes air, oxidation and filtration for the removal of Iron and Sulfur. This process will leave some air or effervescence in the water. The effervescence may give the water a milky appearance and is simply excess air in the water. While a certain amount of effervescence will always be present, it may be most noticeable during the first 30 days.
- Page 7 Sulfur Air Charge 2510-SXT Installation & Startup Guide Bypass Assembly The system must be backwashed once upon startup. First, put the system into service mode. Normally the system ships in the bypass position. Once the system is properly plumbed in, make sure to turn both of the bypass valve knobs 90 degrees into service mode.
- Page 8 How To Remove Media From Control Head Sometimes, when doing the Initial Backwash, the media gets lifted up into the control head. You can tell this happened because you will have little or no flow, either going out to drain while in the backwash positon, or when in the service positon.
