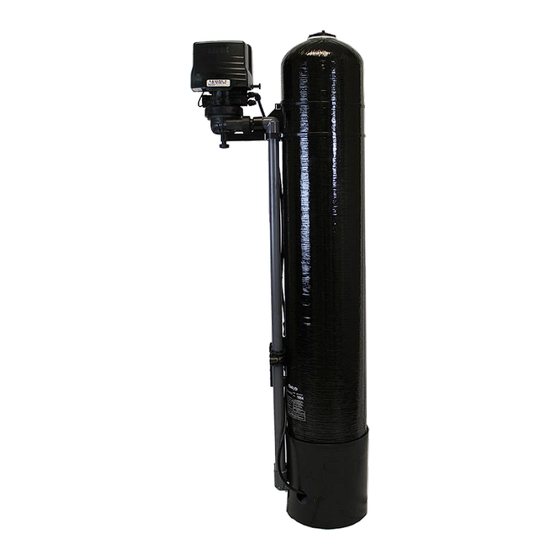

Pro-Ox 5900-BT-SIDE AIR Installation
& Maintenance Guide
Thank you for purchasing a Clean Water System! With proper
installation and a little routine maintenance your system will be
providing iron free water for many years.
Please review this start-up guide entirely before beginning to install
your system and follow the steps outlined for best results.
The Pro-OX 5900-BT-SIDE-AIR Iron Filter must be activated with a 1
cup of un-scented liquid chlorine bleach when first installing it. Read
instructions for more information. It is easy to do, but a critical step.
The Pro-OX media contains dust. Use paper mask and ventilate area to
avoid breathing dust when first pouring the media into the tank.
Minimum 30 PSI required. Maximum pressure 90 PSI.
For indoor installation. Protect from sunlight, rain, and freezing.
Watch This How-to Video:
https://youtu.be/lebGfwAcsX0
For assistance call: 1-831-462-8500 M-F 8AM to 4PM PST
Email us:
support@cleanwaterstore.com
More information online:
www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems Pro-Ox 5900-BT-SIDE AIR
Summary of Contents for Clean Water Systems Pro-Ox 5900-BT-SIDE AIR
- Page 1 Pro-Ox 5900-BT-SIDE AIR Installation & Maintenance Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years. Please review this start-up guide entirely before beginning to install your system and follow the steps outlined for best results.
-
Page 2: Table Of Contents
Table of Contents: Packing Lists ............................. 3 How Your Pro Ox 5900-BT-SIDE-AIR Works ..................4 Note About Aeration ........................4 Pre-Installation Notes ........................4 Best Practices for Piping & Drain Installation .................. 5 Mounting Valve on Tank ........................6 Add Media and Connect Piping ....................... 7 Fig 2. -
Page 3: Packing Lists
Pro Ox 5900-BT-SIDE-AIR Installation & Maintenance Guide Packing Lists Pro-Ox 5900-BT-SIDE-AIR 1.5 CF Pro-Ox 5900-BT-SIDE-AIR control valve w/ bypass assembly with 1” pipe connectors 10” x 54” standard filter tank with distributor tube and bottom basket Plastic media funnel for adding Pro-OX media 110 lbs. -
Page 4: How Your Pro Ox 5900-Bt-Side-Air Works
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide How Your Pro Ox 5900-BT-SIDE-AIR Works The Pro Ox 5900-BT-SIDE-AIR control valve maintains a compressed “air pocket” in the filter free space top of the tank while system is in service. As the water passes through the air pocket, iron is oxidized. -
Page 5: Best Practices For Piping & Drain Installation
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Best Practices for Piping & Drain Installation 1. The Pro-OX-AIR filter is installed after the pressure tank. 2. Install on a level floor or surface. 3. Filter system must be installed at least 10 feet ahead of inlet to water heater to prevent damage due to back-up hot water or use a check valve to prevent hot water back-up. -
Page 6: Mounting Valve On Tank
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Mounting Valve on Tank Page 6 www.cleanwaterstore.com Rev. 60921... -
Page 7: Add Media And Connect Piping
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Add Media and Connect Piping 1. Make sure control valve is mounted and blue bypass valves are closed 2. Remove cap (1) and pour gravel in first, then Pro- OX media, then Turbidex media to Tank (3). 3. -
Page 8: Fig 2. Typical Installation
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Fig 2. Typical installation (install hose bib after Pro-OX Side Air) Attach the Bypass Make sure there is lubricant on all three sets of O-rings and insert and screw bypass onto end connectors (O-rings are already on valve, with the Inlet Air Check Valve on the left, Inlet side). -
Page 9: Electrical Connections
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Electrical Connections P = Power – Use this connection B = Plug Optional Ozone in here, powered in air replenish cycle only S = Optional, powered for entire backwash cycle. Connect the power supply to the control valve connection P. This is the connection on the outside of the valve, nearest the side or outer section of the valve. -
Page 10: Program Time Of Day And Days Between Backwashes
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Program Time of Day and Days Between Backwashes 1. Enter main menu, by pressing the Menu/Enter button (Time of day will flash) 2. Set time of day by pressing the Set/Change button (First digit will begin to flash) 3. -
Page 11: Program Your Valve: Master Programming Mode
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Program Your Valve: Master Programming Mode 1. Regeneration Time (r) Press the Menu/Enter Button. To enter Master Programming Mode press and hold both buttons for 5 seconds. “Regeneration” refers to the backwash/air-draw/rinse cycles. The next display viewed is the option setting for Regeneration Time. -
Page 12: See Historical Data And Real Time Flow Rate
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Pressing the menu/enter button again displays: “bE 1”. Setting this to -00 disables blue tooth and -01 enables blue tooth setting for using the Legacy View App. Pressing the menu/enter button again displays: bTPP and then changes to 1234. This is used for setting password protection. - Page 13 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide 7. Next press and hold the Set/Change button, until the valve begins the backwash cycle and the display reads 1 [1- 10]. This is the first cycle that starts a backwash. 8. Start to put the valve into the service position by turning the inlet bypass knob counter- clockwise a little, slowly, until you can hear water passing through the bypass into the filter.
-
Page 14: Optional Chlorine Side Tank System
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Optional Chlorine Side Tank System The chlorine side tank feature allows bleach to be drawn during Air Draw cycle. In the Legacy View App this is referred to as “Pulse Chlorine Setting” Chlorine has a very good effect on the Pro-OX media, cleaning and restoring the Pro-OX. This helps eliminate slime and rust build-up inside the filter and keeps seals and spacers cleaner. -
Page 15: Optional Ozone Oxy-03
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Optional Ozone OXY-03 Hang the Ozone Complete by sliding its hooks down into Injector Bracket. No screws required. Connect Blue Tubing Connect plug to “B” Port on Control valve and plug ozone Once installation is complete, the OXY-03 will automatically activate during every air replenish... -
Page 16: Installing And Using The Optional Blue Tooth Legacy View App
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Installing and Using the Optional Blue Tooth Legacy View App For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. Note that times and settings EXCEPT the Air Draw minutes can be set or adjusted. - Page 17 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Legacy Phone App Dashboard From the Dashboard, all items in ORANGE be changed (except Air Draw, do that directly on the control valve, see Page 13 – 14), while blue fields are informational only. If you are unsure about the function of the field, click the Info icon for more information Change Time of day (Press “set”...
- Page 18 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide 3. Set Regeneration Time. Example: For 2am, just type 2 and press OK. Legacy App Advanced Settings From the Advanced Settings, all items in ORANGE with a “set” button can be changed. Touch any table to explode a detailed list of the last 60 days. Page 18 www.cleanwaterstore.com Rev.
- Page 19 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Status and History Using Legacy View App From the Status and History, all items in ORANGE can be reset. Start a regeneration or backwash cycle Option 1: Click on “Regenerate Unit Now.” If you would like to force the unit into the next cycle step, Click “Go to next Regeneration Step.”...
-
Page 20: How To Start A Manual Backwash
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Filter System Normal Operation • Normal display alternates between time of day and days until regeneration. • Days remaining until the next regeneration will count down from the regeneration day override value to 1 day remaining. Once count reaches 1, a regeneration will be initiated at next scheduled regen time. -
Page 21: How To Remove Media Accidentally Stuck In Control Head
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide How to Remove Media Accidentally Stuck in Control Head Sometimes, when doing the Initial Backwash and Start-Up only, the media can get lifted into the control head. You can tell this has happened because you will have little or no flow, either going out to drain while in the backwash position, or when in the service position. -
Page 22: Troubleshooting Chart
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Troubleshooting Chart Page 22 www.cleanwaterstore.com Rev. 60921... -
Page 23: Error Codes
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Error Codes There are five (5) error codes that could indicate a possible problem with the control valve: Error 2 - Homing slot expected. Valve will start looking for home. (Normal operation continues) Error 3 - Encoder is not sending a signal (Either encoder chip has failed, or is not connected) Error 4 - Unable to find homing slot (Usually because encoder chip has failed) Error 5 - Motor overload (stalled position or shorted motor, valve requires service to continue) -
Page 24: Service Instructions - Perform Before Doing Any Service
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide 4. The filter media: As is already noted in the guide, backwash must be done with sufficient flow rate and be backwashed frequently enough to keep the Pro-OX filter media clean. 5. Mud-ball formation: If your water has high levels of sediment, silts, or clay getting into the filter, over time these elements combine to form balls which will ruin filter performance. -
Page 25: How To Replace Piston Assembly
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide How to Replace Piston Assembly C1. Follow steps A1 - A3 C2. Disconnect the meter signal wire from the circuit board. C3. Remove lower back base screws and detach lower back base. C4. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws. The entire powerhead assembly will now lift off easily. -
Page 26: How To Replace Seals And Spacers
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide How to Replace Seals and Spacers D1. Follow steps A1 - A3. D2. Disconnect the meter signal wire from the circuit board. D3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws. The entire powerhead assembly will now lift off easily. -
Page 27: How To Replace The Pro-Ox Filter Media
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide How to Replace the Pro-OX Filter Media 1. Typically, after 5 to 15 years the Pro-OX media will start to allow a small amount of iron to flow through the Pro-OX media and the media can be replaced. 2. -
Page 28: Side Kick Air Assembly Exploded View
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Side Kick Air Assembly Exploded View e Inscsiwater.com Page 28 www.cleanwaterstore.com Rev. 60921... - Page 29 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Page 29 www.cleanwaterstore.com Rev. 60921...
-
Page 30: Control Valve Powerhead Assembly Exploded View
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Control Valve Powerhead Assembly Exploded View Valve Body Assembly Exploded View Page 30 www.cleanwaterstore.com Rev. 60921... - Page 31 Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Page 31 www.cleanwaterstore.com Rev. 60921...
-
Page 32: Limited Warranty
Pro Ox 5900-BT-SIDE-AIR Installation & Startup Guide Limited Warranty We warrant this water filter/ softener/ conditioner, when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ----------Limited Warranty---------- This water conditioner unit is comprised of the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
