Machine description – quick overview

Front view

4 Machine description – quick overview

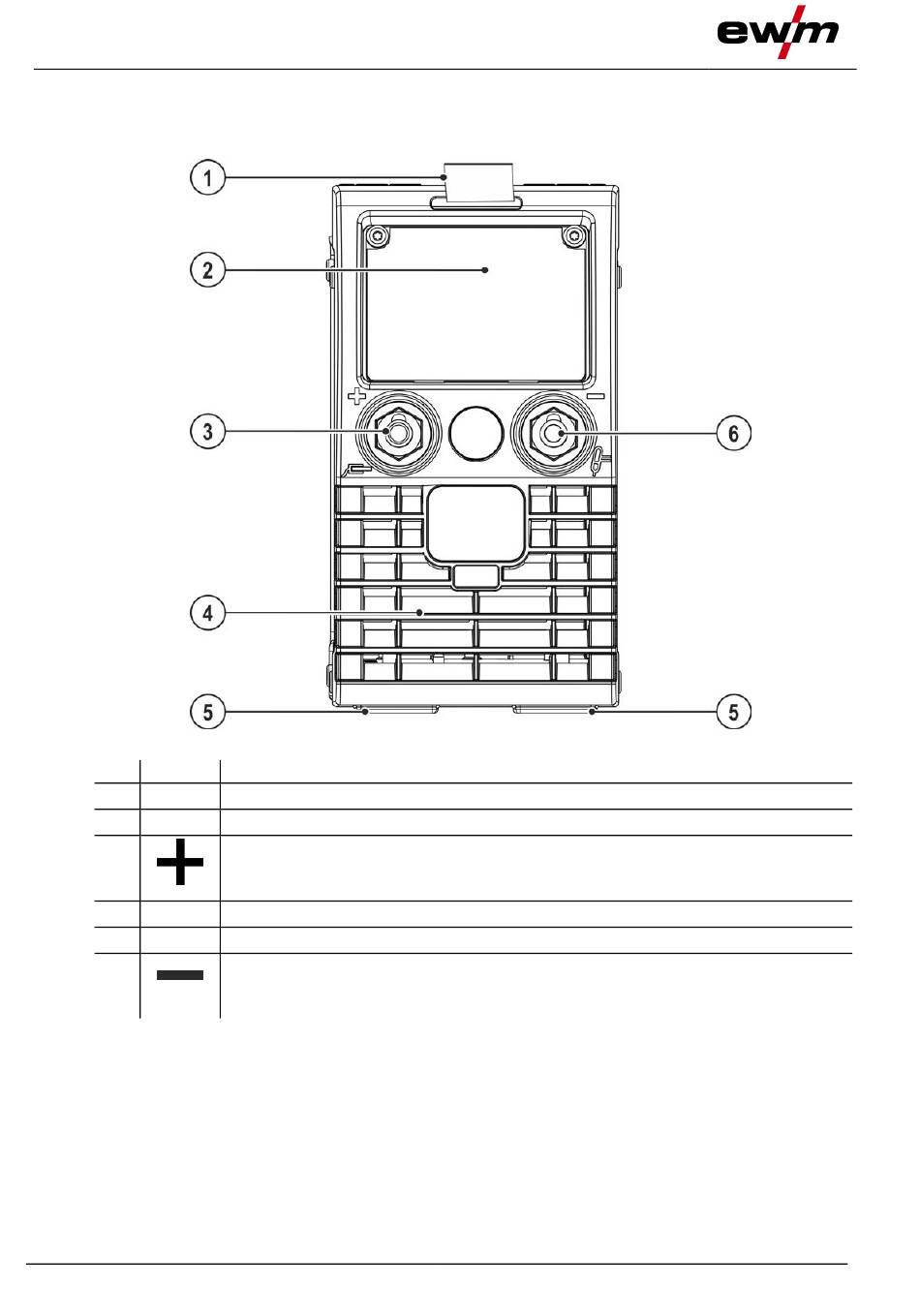

4.1 Front view
Item Symbol
1
2
3
4
5
6
14
Description 0
Carrying strap > see 5.1.4.1 chapter
Machine control > see 4.3 chapter
Connection socket, "+" welding current
• MMA: Electrode holder or workpiece lead connection
• TIG: Connection for workpiece lead
Cooling air outlet
Machine feet
Connection socket, "-" welding current
• TIG: Welding current lead connection for TIG welding torch
• MMA: Electrode holder or workpiece lead connection
Figure 4-1
