Expert menu (MMA)

The Expert menu has adjustable parameters stored that don't require regular setting. The number of pa-
rameters shown may be limited, e.g. if a function is deactivated.
Display
The setting ranges for the parameter values are summarised in the Parameter overview sec-
tion > see 10.1 chapter.
5.3

TIG welding

5.3.1

Shielding gas supply (shielding gas cylinder for welding machine)

Risk of injury due to improper handling of shielding gas cylinders!
Improper handling and insufficient securing of shielding gas cylinders
can cause serious injuries!
• Place shielding gas cylinder into the designated holder and secure with
fastening elements (chain/belt)!
• Attach the fastening elements within the upper half of the shielding gas
cylinder!
• The fastening elements must tightly enclose the shielding gas cylinder!
An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a
fundamental requirement for optimum welding results. In addition, a blocked shielding gas
supply may result in the welding torch being destroyed.
• Always re-fit the yellow protective cap when not using the shielding gas connection.
• All shielding gas connections must be gas tight.
099-002003-EW501
01.02.2022
Setting/selection
Arcforce correction
• Increase value > harder arc
• Decrease value > softer arc

Pulse balance

Pulse current > see 5.2.6 chapter

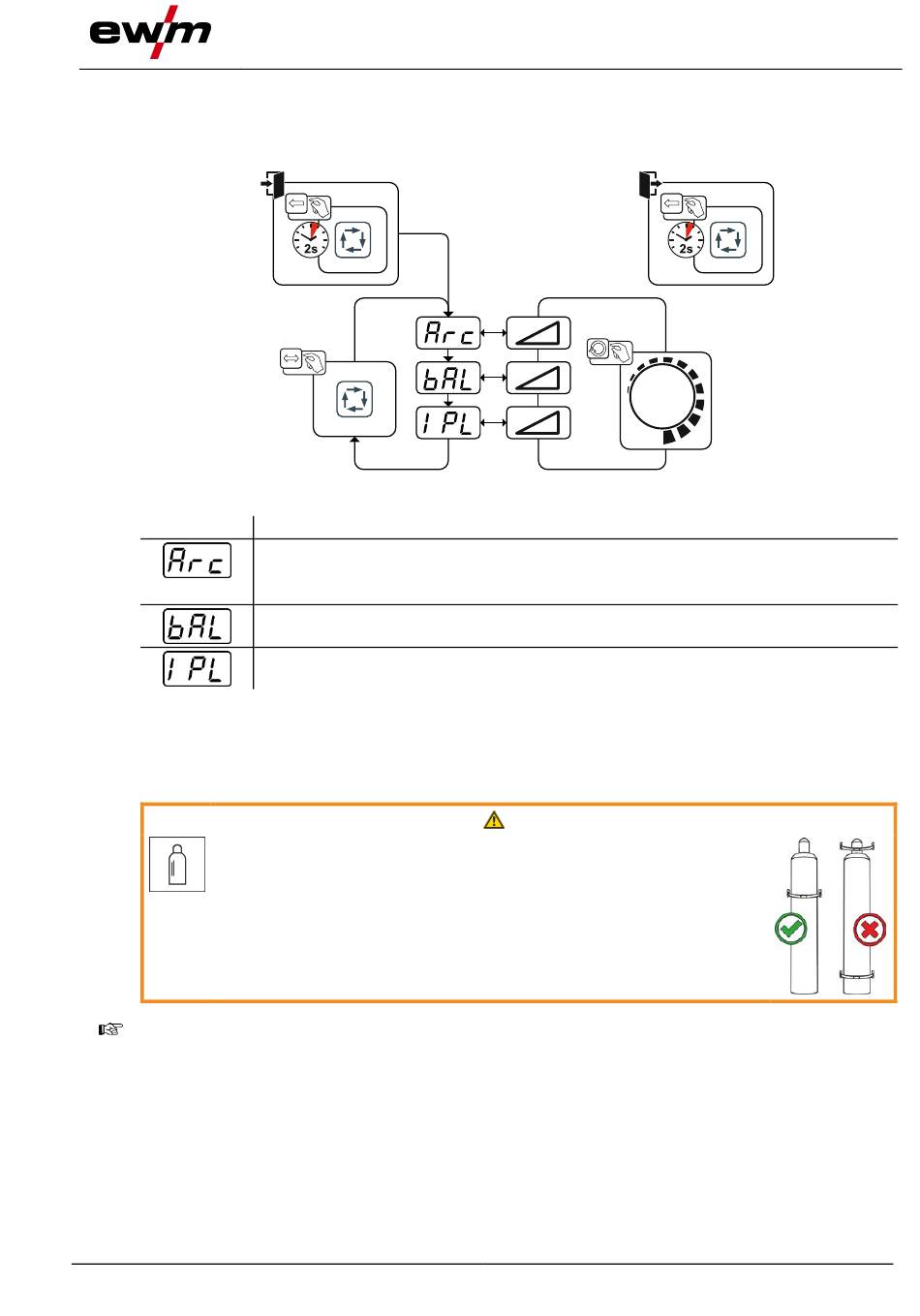

Figure 5-13
WARNING
Design and function
TIG welding
25
