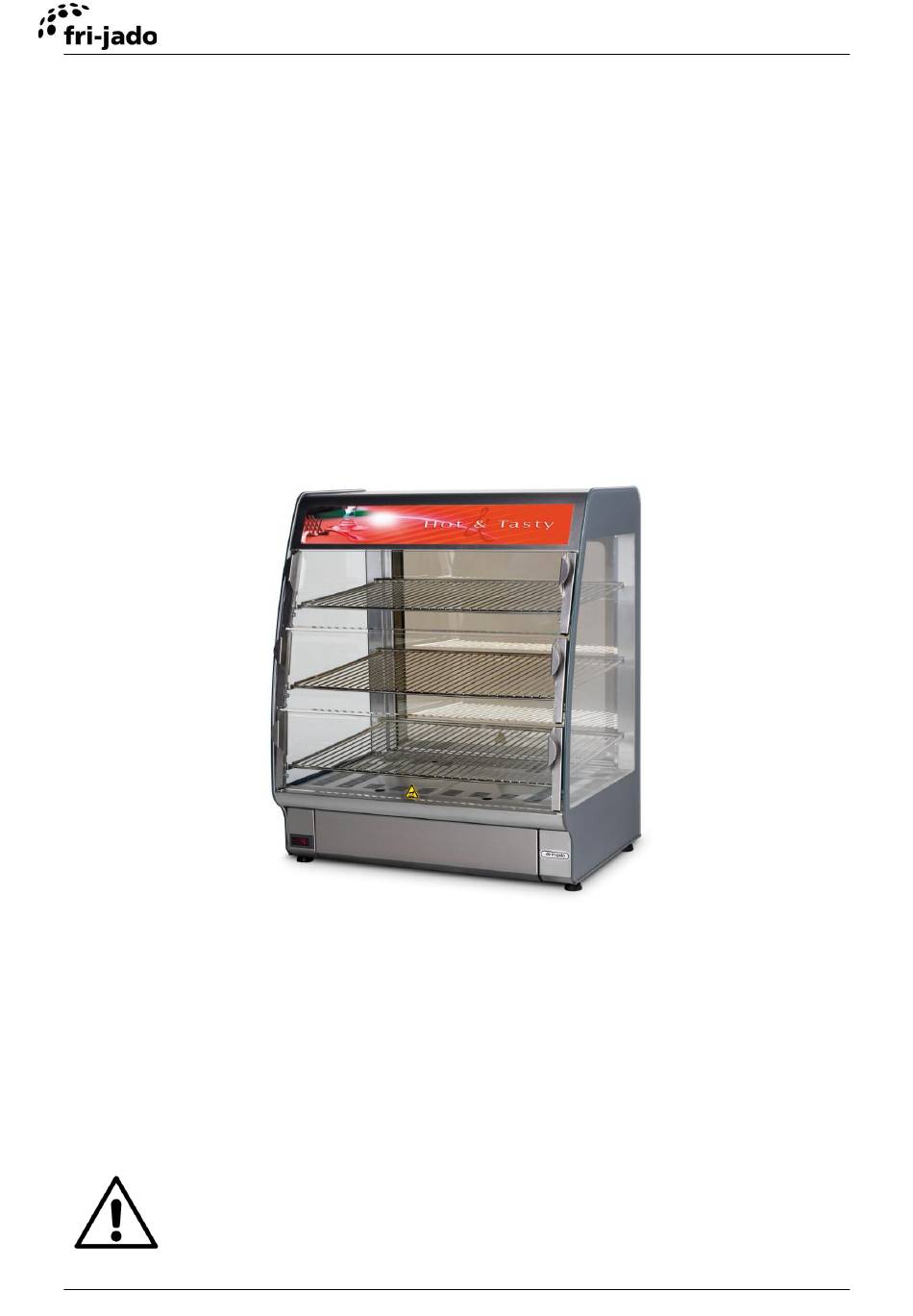

- Page 1 CSD 180 ‒ USER MANUAL EU version Convenience Store Displayer 180 WARNING Read the instructions before using the machine. EN (Original Instruction) 9123529 / 2305...
- Page 2 CSD 180 KEEP THIS USER MANUAL FOR FUTURE USE! © 2023 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
CSD 180 CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 1.4.2 Moving (when applicable) .................... 6 1.4.3 Outdoor use restrictions ....................6 Hygiene .......................... -
Page 4: Introduction
INTRODUCTION General This manual is intended for the user of the CSD 180 (Convenience Store Displayer 180). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. -
Page 5: Safety Instructions
CSD 180 Safety instructions WARNING The outside and shelves of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 10 kg. WARNING See installation instructions for grounding requirements. 1.4.1 General The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and regulations. -
Page 6: Moving (When Applicable)
CSD 180 1.4.2 Moving (when applicable) When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket. • Remove pans containing a liquid product from the unit. •... -
Page 7: Storage
CSD 180 Storage If the unit will not be used temporarily, and will be stored, follow these instructions: • Clean the unit thoroughly. • Wrap the unit from getting dusty. • Store the unit in a dry, non-condensing environment. •... -
Page 8: Description Of The Unit
CSD 180 DESCRIPTION OF THE UNIT Technical description The display warmer keeps the products warm by means of a warm airflow with a high humidity level. The fan in the display ensures an even distribution of heat. The products maintain the required quality in the display for a maximum of three hours. -
Page 9: Parts

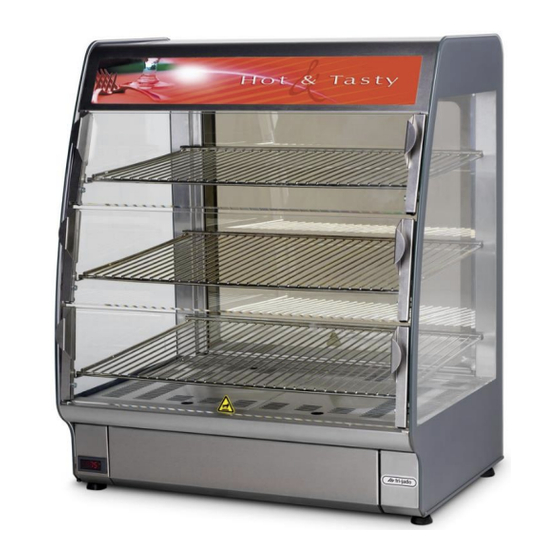

CSD 180 Parts 2.4.1 Overview of the unit A1 On / Off switch. Display / slide holder and lighting of upper A2 Temperature display. plateau. A3 Temperature setting. Plateau (3 pieces). A4 Water tray rear side. Flap window customer side (3 pieces). -
Page 10: Installation And First Use
CSD 180 INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. -
Page 11: Warm Through
CSD 180 Installation 1. Clean the inside, the removable parts and the accessories thoroughly with soapsuds before putting the unit into use. 2. After cleaning, wipe the unit with a cloth moistened with clean water to remove soapsuds residues and then dry the entire unit. -
Page 12: Operation And Use
CSD 180 OPERATION AND USE WARNING Especially an empty water tray and the lamp holder can become very hot. The windows can mist up during the heating period: the condensation will disappear after approximately 15 minutes. Operating Switch on: 1. Switch on the equipment using switch A1. The lighting, the heating and the fans are activated. -
Page 13: Load Product
CSD 180 Load product WARNING Only place warm products. Make sure with packaged products that the packaging material is suitable for a temperature of 100°C. Fill the water tray Regularly check the water level in the water tray and fill up with warm water if necessary. -
Page 14: Cleaning And Maintenance
The heating element above the water tray can still be hot! Do not clean the unit using steel wool. Fri-Jado Clean may in some cases irritate a sensitive skin. Wear rubber gloves when using it. Follow the instructions on the label of Fri-Jado Clean. -
Page 15: Malfunctions And Service
CSD 180 MALFUNCTIONS AND SERVICE Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: • Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard. -
Page 16: Replace The Lamp
CSD 180 Replace the lamp WARNING Let the unit cool off for at least half an hour with all windows open. The lamps are found in the upper cover and beneath the presentation plateaus. 1. Remove the plug from the outlet. -
Page 17: Technical Specifications
CSD 180 TECHNICAL SPECIFICATIONS WARNING See the identification plate for the correct specifications of the unit. The electrical installation data may vary between different countries. Model CSD 180 Approved for Width 728 mm Depth 576 mm Height 877 mm Weight Net Approx. - Page 18 CSD 180 Notes: 18/20...
- Page 19 CSD 180 Notes: 19/20...
- Page 20 CSD 180 Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 20/20...
