USER MANUAL

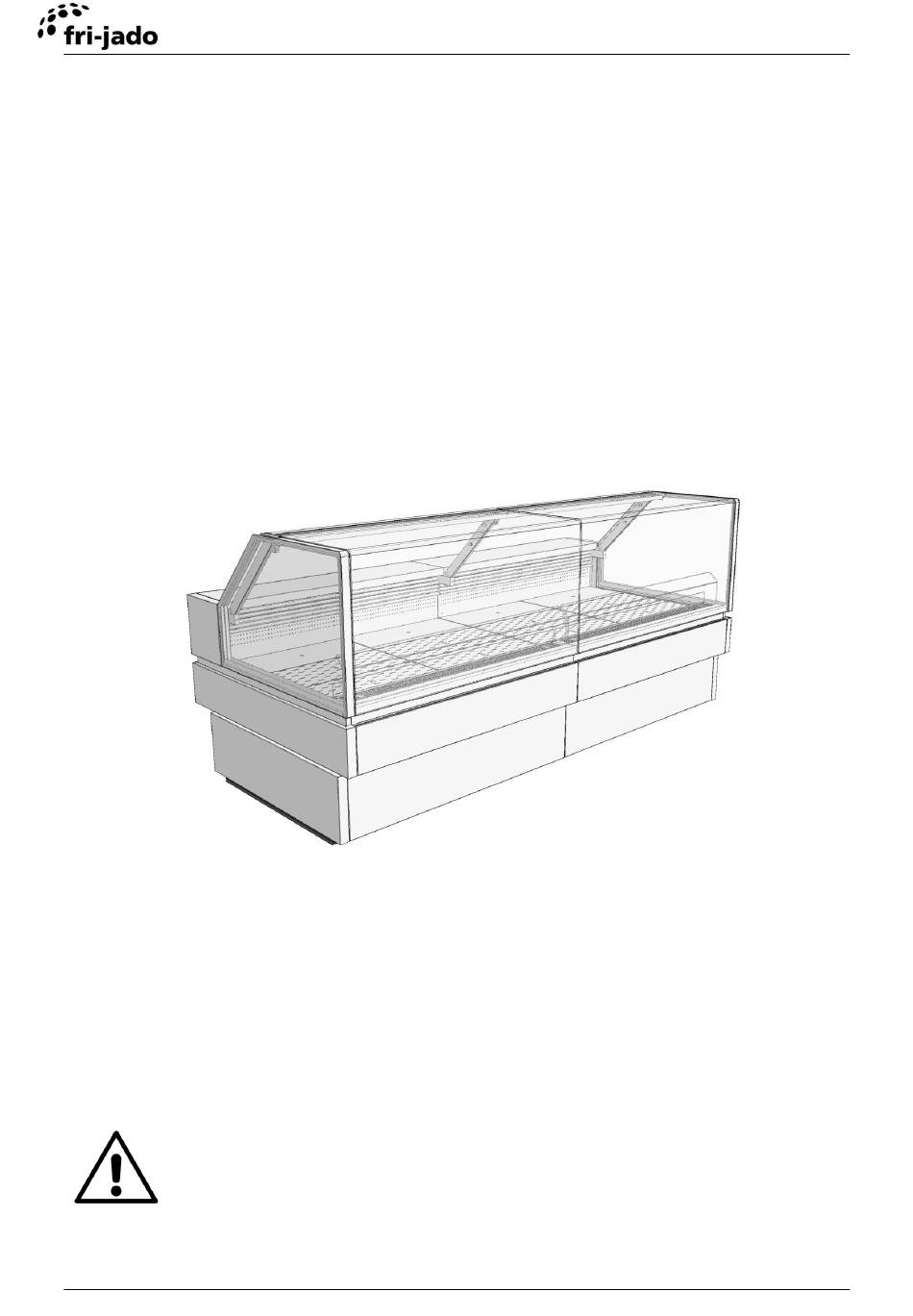

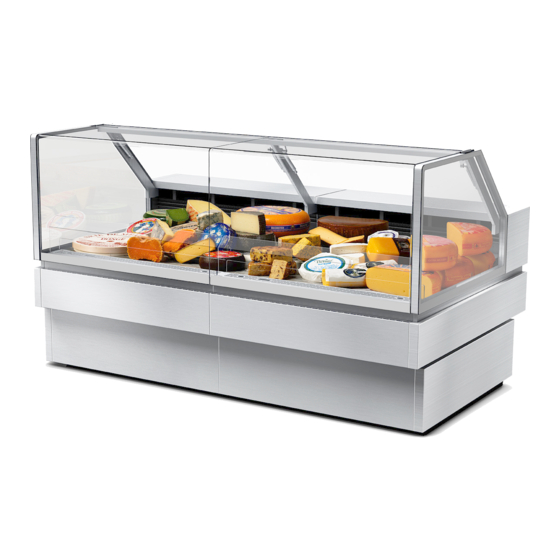

Custom Counter – Cold US Version
WARNING
Read the instructions before using the machine.
US
EN (Original Instruction)
CC – Cold
9124780 / 2210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cold FS 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fri-Jado Cold FS 30

  • Page 1 CC – Cold USER MANUAL Custom Counter – Cold US Version WARNING Read the instructions before using the machine. EN (Original Instruction) 9124780 / 2210...
  • Page 2 CC – Cold KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
  • Page 3: Table Of Contents

    CC – Cold CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 1.4.2 Cold units with remote CO (R744) refrigerant ............. 6 Hygiene ..........................6 Service and technical support ...................
  • Page 4: Introduction

    CC – Cold INTRODUCTION General This manual is intended for the user of the Cold CC (Custom Counter). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. All pictograms, symbols and drawings in this manual apply to all available Cold CC (US) models.
  • Page 5: Safety Instructions

    CC – Cold Safety instructions WARNING Appliances containing R-744 refrigerant: The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before disposal. WARNING The maximum load on top of the unit may never exceed 22 lbs. WARNING See installation instructions for grounding requirements.
  • Page 6: Cold Units With Remote Co (R744) Refrigerant

    CC – Cold 1.4.2 Cold units with remote CO (R744) refrigerant WARNING Remote R744 refrigerant is environmentally friendly but under high pressure. It is non-toxic with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP). Read this manual carefully and follow all precautions described herein. SAFETY Wear eye protection when working on the refrigeration system.
  • Page 7: Service And Technical Support

    CC – Cold Service and technical support The electrical schematics of your unit is included. In case of malfunctions you can contact your dealer/service agent. Make sure you have the following data available: • Model. • Serial number. This data can be found on the identification plate. Storage If the unit will not be used temporarily, and will be stored, follow these instructions: •...
  • Page 8: Description Of The Unit

    CC – Cold DESCRIPTION OF THE UNIT Technical description The panels are made of galvanized steel plating, stainless steel or aluminum. Some of the visible internal and external parts have been provided with a powder coating. The glass used is tempered or laminated.
  • Page 9: Accessories

    CC – Cold Accessories Your unit contains the following standard accessories: • User manual. For optional accessories contact customer.service@frijado.com. 9/24...
  • Page 10: Installation And First Use

    CC – Cold INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit 1.
  • Page 11: Operation And Use

    CC – Cold OPERATION AND USE The display and/or set value is not the product/unit temperature. The units are factory programmed to maintain a product temperature ≤ 41ºF. The set temperature can be changed between 26.6ºF up to 42.8ºF. Default set values are: Ice Cold: 31.1ºF Fresh Cold: 34.7ºF Cold FS / Cold SS / Cold Prep: 32ºF.
  • Page 12 CC – Cold Temperature controller Display Up ( ) and Down ( ) keys Escape/Back key Enter key * Switch on/off: hold Up ( for approx. 3 sec. Switching-on the unit • Set the main switch on. • Set the lighting switch on*. •...
  • Page 13: Humidifier

    CC – Cold Switching off • Remove all products from the unit. In order to avoid temperature rise of the products, store them in another cooling unit. • Switch the cooling off. • Switch the lighting off (if applicable). • Switch the humidification off (if applicable).
  • Page 14: Cleaning And Maintenance

    CC – Cold CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Mains power must be switched off during cleaning or maintenance and when replacing parts. Because of hygiene aspects and optimum condition of the unit it is of utmost...
  • Page 15: Weekly Cleaning

    CC – Cold Weekly Cleaning WARNING The control panel may only be cleaned using a damp cloth. • Clean the outside of the unit with a small amount of hot water and a mild cleanser and using a soft brush or sponge. After cleaning it dry the outside with a cloth. •...
  • Page 16: Cleaning The Interior

    CC – Cold Cleaning the interior Prepare the unit: • Opening front glass (customer side), one at the time (!), • Remove side glass, • Remove sliding doors (operator side). Clean the: • Deck plates, • Air inlet grid, • Air outlet grid, •...
  • Page 17: Malfunctions And Service

    CC – Cold MALFUNCTIONS AND SERVICE WARNING All service operations on the refrigeration system and gas charging must be performed by qualified persons and in a well ventilated environment. Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: •...
  • Page 18: Technical Specifications

    CC – Cold TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Cold Full-Service models Cold FS Width inch 3/16 1/16 9/16 7/16 5/16 13/16 Depth inch 48 1/8...
  • Page 19 CC – Cold IceCold models IceCold Width inch 3/16 1/16 9/16 7/16 5/16 13/16 Depth inch 48 1/8 Height inch 33 7/8 Weight Net. 1058 1190 1323 1455 1587 1720 1852 1984 Approx. Ambient °F 50-75 temperature Relative Humidity Noise level dB(A) <...
  • Page 20 CC – Cold Cold Prep models ColdPrep Width inch 3/16 1/16 9/16 7/16 5/16 13/16 Depth inch 48 1/8 Height inch 33 7/8 Weight Net. 1058 1190 1323 1455 1587 1720 1852 1984 Approx. Ambient °F 50-75 temperature Relative Humidity Noise level dB(A) <...
  • Page 21 CC – Cold Notes. 21/24...
  • Page 22 CC – Cold Notes. 22/24...
  • Page 23 CC – Cold Notes. 23/24...
  • Page 24 CC – Cold Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 24/24...
