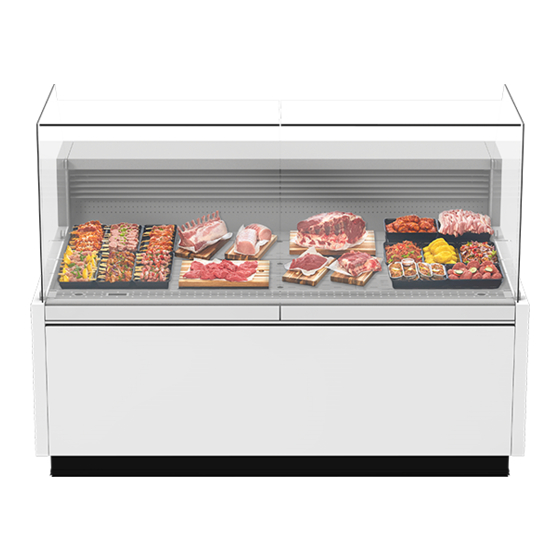

- Page 1 CC – Cold USER MANUAL Custom Counter – Cold EU Version WARNING Read the instructions before using the machine. EN (Original Instruction) 9124775 / 2210...
- Page 2 CC – Cold KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
CC – Cold CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 1.4.2 Cold units with remote CO (R744) refrigerant ............. 6 Hygiene ..........................7 Service and technical support ................... -
Page 4: Introduction
INTRODUCTION General This manual is intended for the user of the Cold CC (Custom Counter). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. -
Page 5: Safety Instructions
CC – Cold Safety instructions WARNING Appliances containing R1234YF refrigerant: Risk of Fire or explosion. Flammable refrigerant used. WARNING Appliances containing R-744 refrigerant: The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before disposal. WARNING The maximum load on top of the unit may never exceed 10 kg. -
Page 6: Cold Units With Remote Co (R744) Refrigerant
CC – Cold • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 7: Hygiene
CC – Cold Hygiene WARNING Immediately remove products in damaged packaging from the equipment and destroy the products. Clean all components that have come in contact with products from damaged packaging. The quality of a fresh product always depends on hygiene. •... -
Page 8: Description Of The Unit
CC – Cold DESCRIPTION OF THE UNIT Technical description The panels are made of galvanized steel plating, stainless steel or aluminum. Some of the visible internal and external parts have been provided with a powder coating. The glass used is tempered or laminated. -
Page 9: Accessories
CC – Cold Accessories Your unit contains the following standard accessories: • User manual. For optional accessories contact customer.service@frijado.com. 9/24... -
Page 10: Installation And First Use
CC – Cold INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit 1. -
Page 11: Operation And Use
CC – Cold OPERATION AND USE The display and/or set value is not the product/unit temperature. The units are factory programmed to maintain a product temperature ≤ 5ºC. The set temperature can be changed between -3ºC up to 6ºC. Default set values are: Ice Cold: -0.5ºC Fresh Cold: 1.5ºC Cold FS / Cold SS / Cold Prep: 0ºC. - Page 12 CC – Cold Temperature controller Display Up ( ) and Down ( ) keys Escape/Back key Enter key * Switch on/off: hold up ( for approx. 3 sec. Switching-on the unit • Set the main switch on. • Set the lighting switch on*. •...
-
Page 13: Humidifier
CC – Cold Switching off • Remove all products from the unit. In order to avoid temperature rise of the products, store them in another cooling unit. • Switch the cooling off. • Switch the lighting off (if applicable). • Switch the humidification off (if applicable). -
Page 14: Cleaning And Maintenance
CC – Cold CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Mains power must be switched off during cleaning or maintenance and when replacing parts. Because of hygiene aspects and optimum condition of the unit it is of utmost... -
Page 15: Weekly Cleaning
CC – Cold Weekly Cleaning WARNING The control panel may only be cleaned using a damp cloth. • Clean the outside of the unit with a small amount of hot water and a mild cleanser and using a soft brush or sponge. After cleaning it dry the outside with a cloth. •... -
Page 16: Cleaning The Interior
CC – Cold Cleaning the interior Prepare the unit: • Opening front glass (customer side), one at the time (!), • Remove side glass, • Remove sliding doors (operator side). Clean the: • Deck plates, • Air inlet grid, • Air outlet grid, •... -
Page 17: Malfunctions And Service
CC – Cold MALFUNCTIONS AND SERVICE WARNING All service operations on the refrigeration system and gas charging must be performed by qualified persons and in a well ventilated environment. Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: •... -
Page 18: Technical Specifications
CC – Cold TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Cold Full-Service models Cold FS 1000 1250 1500 1750 2000 2150 2250 2750 3000 3250 3500... - Page 19 CC – Cold IceCold models IceCold 1000 1250 1500 1750 2000 2150 2250 2750 3000 3250 3500 3750 Width 1000 1250 1500 1750 2000 2150 2250 2750 3000 3250 3500 3750 Depth 1223 Height Weight Net. Approx. Ambient temperature °C min.
- Page 20 CC – Cold ColdPrep models ColdPrep 1000 1250 1500 1750 2000 2150 2250 2750 3000 3250 3500 3750 Width 1000 1250 1500 1750 2000 2150 2250 2750 3000 3250 3500 3750 Depth 1223 Height 860 without glass stand, 960 with low glass stand or 1200 with high glass stand Weight Net.
- Page 21 CC – Cold Notes. 21/24...
- Page 22 CC – Cold Notes. 22/24...
- Page 23 CC – Cold Notes. 23/24...
- Page 24 CC – Cold Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 24/24...
