INSTALLATION
MODELS
Deli Multisserie with Grease Separator.
Deli Multisserie with GS and condensor.
Deli Multisserie with Grease Collector.

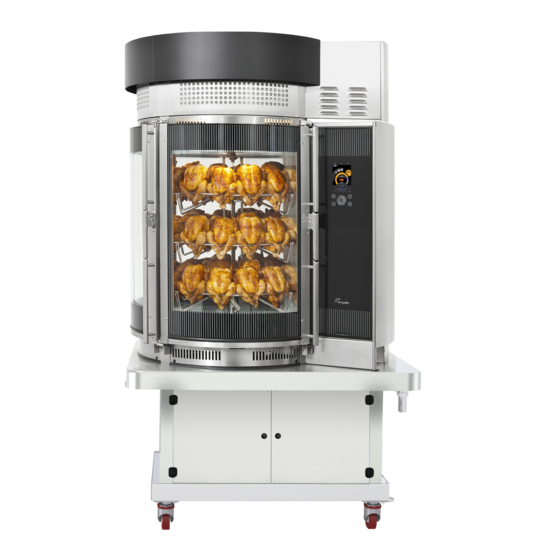

Deli Multisserie with GC and condensor (shown).
Installation Manual Deli Multisserie form 9123551 rev. 04/2019
MANUAL
DELI MULTISSERIE
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have atten-
ded a trianing for this product, you may be qualified to perform all the
procedures in this manual.
This manual is not intended to be all encompassing. If you have not
attended a training for this product, you should read, in its entirety, the
repair procedure you wish to perform to determine if you have the ne-
cessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
and skills should be performed by a trained technician.
Reproduction or other use of this Manual, without the express written
consent of Fri-Jado, is prohibited.
- NOTICE -
WWW.FRIJADO.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fri-Jado DELI MULTISSERIE
Summary of Contents for Fri-Jado DELI MULTISSERIE
- Page 1 Procedures for which you do not have the necessary tools, instruments and skills should be performed by a trained technician. Reproduction or other use of this Manual, without the express written consent of Fri-Jado, is prohibited. Installation Manual Deli Multisserie form 9123551 rev. 04/2019 WWW.FRIJADO.COM...
- Page 2 Page 2 Installation Manual Deli Multisserie form 9123551 rev. 04/2019...
-
Page 3: Table Of Contents
Multisserie with Grease Guardian ....................18 Multisserie with Grease Guardian and Condensing Hood ............19 Multisserie with Grease Collector on old underframe ..............20 Multisserie with GC and Condensing Hood on old Underframe ..........21 Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 3... -
Page 4: General Technical Data
GENERAL TECHNICAL DATA GENERAL TECHNICAL DATA This manual covers the Fri-Jado Deli Multisserie ovens. All of the information, illustrations and specifi- cations contained in this manual are based on the latest product information available at the time of printing. TECHNICAL DATA Type Deli Mts. -
Page 5: Water Requirements
Not included: 2 hoses 1,5 mtr (5 ft) G 3/4” Waterfilter. to G 3/4” 90° angled Warning: all plumbing connections must comply with local sanitary, safety and plumbing codes Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 5 Page 5... -
Page 6: Installation Procedures
See “unpacking” drawing. Warning: Do this with at least two persons. The oven is top heavy. Remove obstacles from the floor first. Door support Only for transport, remove after transport. Page 6 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 7: Location And Castors
- The unit is adjusted level at installation (all door post vertical) - The unit is standing steady on all 4 castors. - The unit will be placed back on the exact same place, after cleaning or maintenance. Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 7... -
Page 8: Electrical Supply
7. In addition to the above, the supplied water for the Steam & Rinse inlet can have a hardsness of maximum 2 dH (2 Grains/Gal), but preferably zero. 8. Put the by pass from the filter on zero! (most filters have an adjustable by- pass) Page 8 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 9: Water Connection Multisserie
G 3/4” Tap water Tap water G 3/4” aerated G 3/4” aerated 1,5 mtr (59”) 2 of these hoses always come with the unit. 3/4” (F) BSP 3/4” (F) BSP Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 9... -
Page 10: Overview Of Under Frame With Grease Guardian
= Connection of drain hose from condensing hood, if applicable. Pipenipple 3/4”. This drain hose is default connected from factory. See picture. = Drain for service, 3/4” pipe nipple (Ø 27mm OD). Can be connected to the sewer. (keep ball valve closed) Page 10 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 11: Drain Multisserie With Grease Collector
Maximum temperature of waste water ± 70°C (158°F) Maximum volume 15 ltrs (4 gallon) / hour Possible lay outs of drain √ √ √ √ √ Ø 50 Faulty lay outs of drain Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 11... -
Page 12: Vent And Ventilation Of The Multisserie
• No hood is required when the Multisserie has a con- densor hood. • Cooling air is forced in at #8. • Cooling air is forced out at #9. • Natural cooling air comes out at #10 Page 12 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 13: Tethering The Oven
Warning: Following installation, check to confirm that, when the appliance is moved to the limits of the tether in each direction, no stress is transmitted to the electrical conduit. Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 13... -
Page 14: First Use
Run through the user manual. • Refer to the storyboard training guide and laminated sheet with pre-programmed programs. • Periodical maintenance. • How to react for information or service calls. Page 14 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 15: Installation Drawings
These slots can be reached by removing the curved co- vers under the front and rear (tech.) doors. Take care of the wiring and plumbing in that section. 1008 * see castors above Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 15... -
Page 16: Multisserie With Grease Collector
Drain Ø 35mm (1 3/8) 1260 Vent pipe Ø76 x ø72 Minimum required space. ø72xØ76 Included with unit -2x hose 1,5 m / 5ft -1x compression knee Ø35 -1x pipe Ø35 1260 1320 Page 16 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 17: Multisserie With Grease Collector And Condensing Hood
Drain Ø 35mm (1 3/8) Drain hose from hood. Minimum required space. Ventilation grids Included with unit -2x hose 1,5 m / 5ft -1x compression knee Ø35 -1x pipe Ø35 1008 1281 1320 Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 17... -
Page 18: Multisserie With Grease Guardian
Drain for service, 3/4” pipe nip- ø72xØ76 ple, Ø 27 mm OD Minimum required space. Included with unit -2x hose 1,5 m / 5ft -1x rubber sleeve Ø 51 1260 1320 Page 18 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 19: Multisserie With Grease Guardian And Condensing Hood
Drain for service, 3/4” pipe nipple, Ø 27 mm OD. Minimum required space. Ventilation grids. Included with unit -2x hose 1,5 m / 5ft -1x rubber sleeve Ø 51 1008 1281 1320 Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 19... -
Page 20: Multisserie With Grease Collector On Old Underframe
Location for tap Location for drain pipe * Length measured from the point at the rear of the Multisserie where the hose and the cable come out. 1260 1008 1300 Page 20 Installation Manual Deli Multisserie form 9123551 rev. 04/2019... -
Page 21: Multisserie With Gc And Condensing Hood On Old Underframe
Location for drain pipe ** Length measured from the point at the rear of the Multisserie where the hose and the cable come out. * See Multisserie Castors 1008 1281 1008 1300 Installation Manual Deli Multisserie form 9123551 rev. 04/2019 Page 21... - Page 22 Page 22 Installation Manual Deli Multisserie form 9123551 rev. 04/2019...
