INSTALLATION MANUAL
MULTI DECK HOT MERCHANDISERS WITH IMPROVED AIR TECHNOLOGY

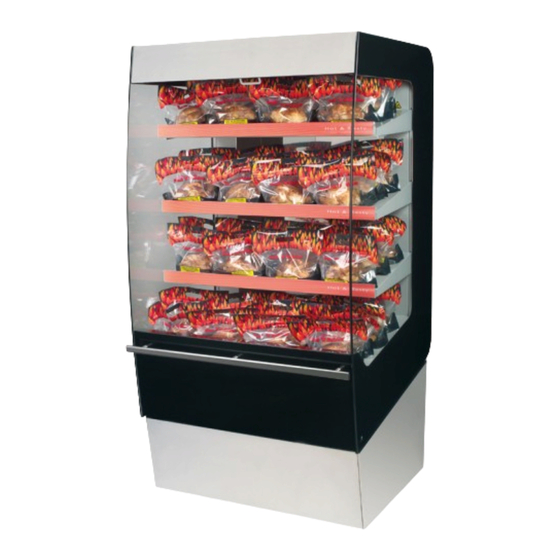

MULTI DECK 60 ESSENTIAL - 4 LEVEL
MULTI DECK 100 ESSENTIAL - 4 LEVEL
MULTI DECK 60 TRANSPARENT LIGHT
MULTI DECK 100 TRANSPARENT LIGHT
MULTI DECK 120 TRANSPARENT LIGHT
CLASSIC DECK HOT MERCHANDISER
Multi Deck 60 Essential
WWW.FRIJADO.COM
Multi Deck 100 Essential
This manual is prepared for the use of trained Service Technici-
ans and should not be used by those not properly qualified. If
you have attended a trianing for this product, you may be quali-
fied to perform all the procedures in this manual.
This manual is not intended to be all encompassing. If you have
not attended training for this product, you should read, in its
entirety, the repair procedure you wish to perform to determine
if you have the necessary tools, instruments and skills required
to perform the procedure. Procedures for which you do not have
the necessary tools, instruments and skills should be performed
by a trained technician.
Reproduction or other use of this Manual, without the express
written consent of Fri-Jado, is prohibited.
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
Multi Deck 120 transparent
- NOTICE -
BOX
BOX
BOX
Classis Deck Hot
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fri-Jado Multi Deck 60 Essential
Summary of Contents for Fri-Jado Multi Deck 60 Essential
- Page 1 INSTALLATION MANUAL MULTI DECK HOT MERCHANDISERS WITH IMPROVED AIR TECHNOLOGY MULTI DECK 60 ESSENTIAL - 4 LEVEL MULTI DECK 100 ESSENTIAL - 4 LEVEL MULTI DECK 60 TRANSPARENT LIGHT MULTI DECK 100 TRANSPARENT LIGHT MULTI DECK 120 TRANSPARENT LIGHT CLASSIC DECK HOT MERCHANDISER...
- Page 2 EMPTY PAGE Page 2 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015...
- Page 3 Versions Version Issue date Remarks dd/mm/yy 07/2015 01/07/2015 MD 60 and 100 Essential added. Glass front doors added. Various updates. Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009 Page 3...
-
Page 4: Table Of Contents
INDEX Index ............................4 General technical data ........................ 5 Unpacking ........................... 6 Unpacking MD 60 and Classic Deck ...................... 6 Unpacking MD 100 ..........................10 Unpacking MD 120 ..........................13 Installation ..........................16 Location ..............................16 Air grid ..............................16 Installation ............................ -
Page 5: General Technical Data
GENERAL TECHNICAL DATA GENERAL TECHNICAL DATA This manual covers the Multi Deck 60, 100 and 120 Hot and the Classic Deck Hot series mer- chandiser cabinets. The cabinets come in three sizes, 60, 100 and 120 centimeter. • Multi Deck 60 Hot - Merchandiser 620 mm wide. •... -
Page 6: Unpacking
UNPACKING UNPACKING UNPACKING MD 60 AND CLASSIC DECK Note: Perform this action safely with two people Remove the crate from the unit by taking of the following parts: top. 2+3: front and back. sides. Follow the instructions as given in the next pages. - Page 7 UNPACKING 1. Carefully tilt the unit slightly. 2. Remove the board-and-beam assembly. 3. Carefully lower the unit until it rests on the floor. Unit after removal of the crate. Remove the screws from the board on the 1. Remove the screws from the connecting front side of the pallet as shown above.
- Page 8 UNPACKING Remove top transport safety beam. Carefully let the unit slide onto its wheels. WARNING! Prevent the unit from 1. Carefully tilt the shelf slightly. rolling away on the casters. 2. Remove the transport beam. 3. Repeat for bottom shelf. Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev.
- Page 9 UNPACKING Remove transport safety shelfs (3x). Remove protective cover of stainless steel shelves, bottom and skirts. Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015 Page 9...
-
Page 10: Unpacking Md 100
UNPACKING UNPACKING MD 100 Note: Perform this action safely with two people Remove the crate from the unit by taking of the following parts: top. 2+3: front and back. sides. Follow the instructions as given in the next pages. After the unit is unpacked, you can apply the screws bottom plinth as shown in the pictures on the separate instruction sheet. - Page 11 UNPACKING 1. Carefully tilt the unit slightly. 2. Remove the board-and-beam assembly. 3. Carefully lower the unit until it rests on the floor. Unit after removal of the crate. Remove the screws from the board on the 1. Remove the screws from the connecting front side of the pallet as shown above.
- Page 12 UNPACKING Carefully let the unit slide onto its wheels. WARNING! Prevent the unit from rolling away on the casters. Remove protective cover of stainless steel shelves, bottom and skirts. Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015 Page 12...
-
Page 13: Unpacking Md 120
UNPACKING UNPACKING MD 120 Note: Perform this action safely with two people Remove the crate from the unit by taking of the following parts: top. 2+3: front and back. sides. Follow the instructions as given in the next pages. tilt After the unit is unpacked, you can apply the bottom plinth as shown in the pictures on the separate instruction sheet. - Page 14 UNPACKING The picture above shows the unit after re- 1. Remove the screws from the board on moval of the crate. the left hand side of the pallet. Remove the screws from the board on 2. Carefully tilt the unit slightly. the right hand side of the pallet as shown 3.
- Page 15 UNPACKING Remove protective cover of stainless steel shelves, bottom and skirts. Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015 Page 15...
-
Page 16: Installation
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT INSTALLATION Immediately after unpacking the merchandiser, check for possible shipping damage. If the merchandiser is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery. Prior to installation, test the electrical service to assure that it agrees with the specifications on the machine data plate located on the right side panel near the controls. -
Page 17: Mounting Instruction Glass Door(S)
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT MOUNTING INSTRUCTION GLASS DOOR(S) Note: The models MD 100 ans 120 have double glass doors. See also next page. Page 17 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009... - Page 18 INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT Part nr. Description 9220078S Front door ass. MD 60 9220085S Front door ass. MD 100 9220086S Front door ass. MD 120 9220077S L or R door ass. MD 100 9220076S L or R door ass.
-
Page 19: General
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT GENERAL The minimum temperature of the environment should be 20°C for the Multi Deck 60/100/120 hot and Classic Deck hot. The maximum temperature of the environment should be 22°C and the relative humidity should be maximum 65%. -
Page 20: Placing And Connecting
PLACING PLACING AND CONNECTING Description belonging to the lables on the drawings Label Description Power cable, length 2,5 meters * *) length is measured from the point where the cables coms out of the unit MULTI DECK 60 HOT Page 20 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. -
Page 21: Multi Deck 100 Hot
PLACING MULTI DECK 100 HOT Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009 Page 21... -
Page 22: Multi Deck 120 Hot
PLACING MULTI DECK 120 HOT Page 22 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015... -
Page 23: Classic Deck 60 Hot
PLACING CLASSIC DECK 60 HOT Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009 Page 23... - Page 24 EMPTY PAGE Page 24 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015...
- Page 25 Fri-Jado B.V. • P.O. Box 560 • 4870 AN • Etten-Leur • The Netherlands • tel +31 76 50 85 400 • info@frijado.com • www.frijado.com...
