CSD 180 Hot DIRECTIONS FOR USE EN 2-1 GEBRAUCHSANLEITUNG DE 3-1 MODE D'EMPLOI FR 4-1 INSTRUCCIONES DE MANEJO ES 5-1 www.frijado.com en / 2-II 9123529 / 0712...
CSD 180 Hot Safety, hygiene and environment 1.1. General The manufacturer accepts no liability whatsoever for loss or injury caused by failure to strictly adhere to the safety guidelines and instructions in this manual or due to carelessness during installation, use, maintenance and repair of the unit referred to in this manual and any of its accessories.
1.4. Icons and symbols 1.4.1. Manual In this manual the following icons and symbols are used: Danger of personal injury or serious damage to the unit Electric voltage Hot surfaces Danger of fire Additional information Environmental aspects 1.4.2. Unit The icons given below have been attached to the unit. Never cover or remove them. Immediately replace or repair illegible or damaged icons.
Polypropylene tape 1.7.2. Remove If required, the Fri-Jado supplier can advise on how to remove the unit. The Fri-Jado supplier can also indicate which parts contain valuable substances and materials. Treat the materials in accordance with the current local environmental regulations.

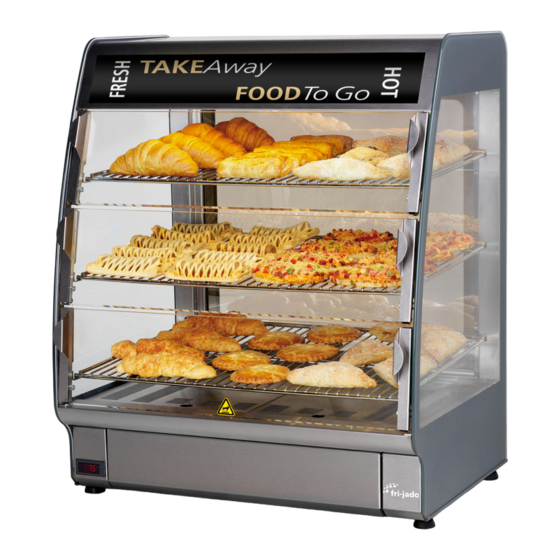

Description of the unit 2.1. Operation The display warmer keeps the products warm by means of a warm airflow with a high humidity level. The fan in the display ensures an even distribution of heat. The products maintain the required quality in the display for a maximum of three hours. The display has glass on three sides and the rear side has a reflecting rear window, allowing optimum presentation of the products.
CSD 180 Hot 2.4. Technical specifications WARNING See the identification plate for the correct specifications of the unit. The electrical installation data may vary between different countries. CSD 180 Hot Dimensions Width Depth Height Weight Voltage 230V 1N~ Frequency 50…60 Max.
Install 3.1. Unpack 1. Remove all parts from the unit. 2. Remove the foil from all metal parts. 3. Remove all packaging materials from the unit. 4. Check the unit for damage. 5. Make sure that all parts that belong to the model you have ordered are present.
CSD 180 Hot Install slide: Insert a slide if the unit has been provided with a slide holder. WARNING Remove the plug from the outlet. 1. Loosen the 7 screws in the ceiling around the lighting, but do not remove them.
Operation WARNING Especially an empty water tray and the lamp holder can become very hot. The windows can mist up during the heating period: the condensation will disappear after approximately 15 minutes. 4.1. Switch the unit on and off Switch on 1.
CSD 180 Hot 4.3. Load product WARNING • Only place warm products. • Make sure with packaged products that the packaging material is suitable for a temperature of 100°C. 4.4. Fill the water tray Regularly check the water level in the water tray and fill up with warm water if necessary.
The heating element above the water tray can still be hot! • Do not clean the unit using steel wool. • Fri-Jado Clean may in some cases irritate a sensitive skin. Wear rubber gloves when using it. • Follow the instructions on the label of ‘Fri-Jado Clean’.
CSD 180 Hot Problems WARNING • If the problem is not solved by consulting the table below, proceed as follows: 1. Switch off the unit. 2. Remove the plug from the outlet. 3. Contact your supplier/service agency. Make sure you have the following data at hand: model and serial number.
6.1. Replace the lamp WARNING Let the unit cool off for at least half an hour with all windows open. The lamps are found in the upper cover and beneath the presentation plateaus. 1. Remove the plug from the outlet. 2.
