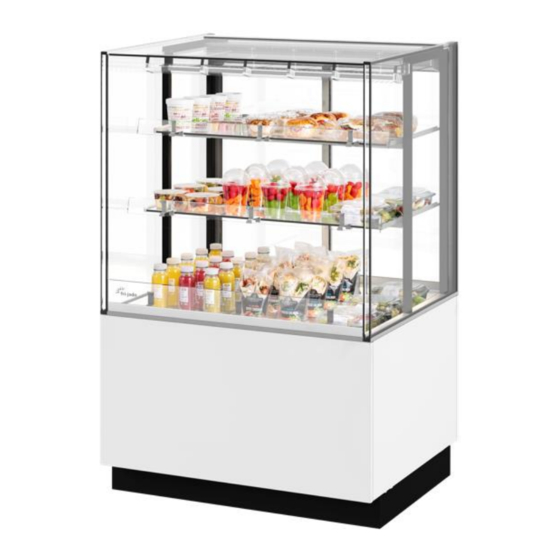

Modular convenience counter – cold/ambient
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Modular Convenience Counter – Cold
Modular Convenience Counter – Ambient
WARNING
Read the instructions before using the machine.
EU
EN (Original Instruction)
MCC – Cold / Ambient
9124736 / 2207

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90-2-C SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fri-Jado 90-2-C SS

Summary of Contents for Fri-Jado 90-2-C SS

  • Page 1 MCC – Cold / Ambient USER MANUAL Modular Convenience Counter – Cold Modular Convenience Counter – Ambient WARNING Read the instructions before using the machine. EN (Original Instruction) 9124736 / 2207...
  • Page 2 MCC – Cold / Ambient KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.

  • Page 3: Table Of Contents

    MCC – Cold / Ambient CONTENTS INTRODUCTION ......................5 General ..........................5 Identification of the unit ..................... 5 Pictograms and symbols ....................5 Safety instructions ......................6 1.4.1 General ........................6 1.4.2 Self-contained cold units with R290 (propane) refrigerant ..........7 1.4.3 Cold units with remote CO (R744) refrigerant .............
  • Page 4 MCC – Cold / Ambient Cleaning interior bottom ....................30 Cleaning the condenser – Self-Contained Cold units ............30 MALFUNCTIONS AND SERVICE .................. 31 Replace the mains cord ....................31 TECHNICAL SPECIFICATIONS ..................32 4/40...

  • Page 5: Introduction

    MCC – Cold / Ambient INTRODUCTION General This manual is intended for the user of the Cold and Ambient MCC (Modular Convenience Counter). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. All pictograms, symbols and drawings in this manual apply to all available Cold and Ambient MCC (EU) models.

  • Page 6: Safety Instructions

    MCC – Cold / Ambient Recycling symbol. Minimum room floor area. WARNING System contains refrigerant under high pressure. Safety instructions WARNING Self-contained Cold units: Risk of Fire or explosion. Flammable refrigerant used. WARNING The maximum load on top of the unit may never exceed 10 kg. MINIMUM ROOM FLOOR AREA Self-contained Cold units: Refer to the data label on the unit for the required floor...

  • Page 7: Self-Contained Cold Units With R290 (Propane) Refrigerant

    MCC – Cold / Ambient • To avoid short-circuiting, never clean the unit using a water hose. For cleaning instructions, see section 5. • The Cold unit must be cleaned regularly to ensure proper functioning and to avoid the outbreak of fire (overheating). Especially the back of the fan plate. •...

  • Page 8: Cold Units With Remote Co (R744) Refrigerant

    MCC – Cold / Ambient 1.4.3 Cold units with remote CO (R744) refrigerant WARNING Remote R744 refrigerant is environmentally friendly but under high pressure. It is non-toxic with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP). Read this manual carefully and follow all precautions described herein.

  • Page 9: Hygiene

    MCC – Cold / Ambient Hygiene WARNING Immediately remove products in damaged packaging from the equipment and destroy the products. Clean all components that have come in contact with products from damaged packaging. The quality of a fresh product always depends on hygiene. It is essential that products are packaged immediately after preparation.

  • Page 10: Description Of The Unit

    MCC – Cold / Ambient DESCRIPTION OF THE UNIT Technical description The panels are made of galvanized steel plating, stainless steel or aluminium. Some of the visible internal and external parts have been provided with a powder coating. The glass used is tempered or layered.

  • Page 11: Installation And First Use

    MCC – Cold / Ambient INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit 1.

  • Page 12: Unpacking The Front Doors (Optional)

    MCC – Cold / Ambient 3.1.1 Unpacking the front doors (optional) The front door(s) (1-3) and fixings are placed in a crate during transport. Fixings Installation and positioning WARNING Self-contained Cold units: Propane refrigerant is highly flammable. All safety precautions must be followed. WARNING Electric chock hazard.

  • Page 13: Level The Unit

    MCC – Cold / Ambient 3.2.1 Level the unit Place the unit on a sturdy, flat surface and level the unit by adjusting unit’s legs (max. +15 mm). 3.2.2 Mounting the plinths Place rear plinth attaching both rear adjustable legs using its two clamps.

  • Page 14: Mounting Front Doors (Optional)

    MCC – Cold / Ambient 3.2.3 Mounting front doors (optional) Position the doors with the handles to the outside and with the warning sticker above the handle. Position the door over the bottom profile and place a plastic spacer between the bottom profile and the collar bearing.

  • Page 15: Applying Price Rail

    MCC – Cold / Ambient Result 3.2.4 Applying price rail Price rails for full serve models can be mounted on the air inlet grill and on the glass shelves. Self- serve models are supplied with price rails as standard. Refer to installation manual. Drop-in units For installation of the Drop-in units refer to instruction 9124589.

  • Page 16: Repositioning The Glass Shelves

    MCC – Cold / Ambient Repositioning the glass shelves The glass shelves can be positioned at three horizontal levels (I), or one of the three angled positions (II and III) by changing the positions of the LED-armature with respect to the rear. In order to change to any of these positions, follow the steps in the example below to change from a horizontal to an angled position.

  • Page 17: Plateau Options

    MCC – Cold / Ambient 5. Position the side supports at the desired height by inserting them into the rear column. Let the front end rest on the LED- armature. Please note that the rear level is supposed to be located at an equal or higher level than the LED- armature.

  • Page 18: First Use

    MCC – Cold / Ambient To change to a different position: • Remove the plateaus from the unit. • Reposition the supports at the front and the back to the desired positions. • Place the plateaus back in the unit. First use Before starting to use the unit, clean the inside thoroughly with mild detergent and water.

  • Page 19: Operation And Use

    MCC – Cold / Ambient OPERATION AND USE The display and/or set value is not the product/unit temperature. Cold units are factory programmed to maintain a product temperature ≤ 5ºC. The temperature can be changed from -1ºC to +5ºC. Control Panel Cold Units 4.1.1 Control Panel - Self-contained units Temperature controller...

  • Page 20: Control Panel - Remote Units

    MCC – Cold / Ambient Checking the SET temperature 1. Press and release SET to access the “Machine status” menu. 2. Scroll through the folders with until you find the folder Pb1, Pb2 or Pb3. 3. Press SET to view the value measured by the corresponding probe. Notes: •...
  • Page 21 MCC – Cold / Ambient Loading the unit • Only load products of which the temperature is maximum 4ºC. • The maximum loading height is 50 mm below the bottom of the shelf/air guide above. • The maximum carrying-capacity per shelf is 30 kg/m, by equal load. Load the cold unit only with pre-cooled products.

  • Page 22: Control Panel Ambient Units

    MCC – Cold / Ambient 4.1.2.2 Carel Temperature Controller Display Up (▲) and Down (▼) keys Escape/Back key Enter key Checking the temperature • During operation the display of the thermostat shows the temperature in the unit. The maximum reading must not exceed 5ºC with the factory settings. •...

  • Page 23: Cleaning And Maintenance

    MCC – Cold / Ambient CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Appliances must be disconnected from their power supply during cleaning or maintenance and when replacing parts.

  • Page 24: Cleaning Glass Panes

    MCC – Cold / Ambient Cleaning Glass Panes Cleaning the top glass pane • For all MCC variants, lift and hold the top glass while cleaning the top glass pane. Cleaning the top air guide WARNING Do not use detergents and other cleaning products that may damage polycarbonate. Using inappropriate products to clean may tarnish, scratch or even crack any polycarbonate surfaces.
  • Page 25 MCC – Cold / Ambient Cleaning the side double-glass pane • Slide the double glass pane towards the front along the top (A) and bottom (B) guiding rails. The side pane can be removed from the unit once it has slid in its entirety past the top guide.
  • Page 26 MCC – Cold / Ambient Cleaning front window • Lift and hold the top glass, the front glass will automatically remain in position • Gently tilt the front glass forward (do not drop) whilst holding the top glass • Lower the top glass back in place. •...
  • Page 27 MCC – Cold / Ambient Cleaning sliding doors and rear of shelves Always keep the sliding doors closed as much as possible, or the unit cannot maintain its climate. Cleaning the sliding doors is therefore recommended during off-hours. Follow the following steps to access the inner sides of the sliding doors and the rear of the shelves for cleaning.
  • Page 28 MCC – Cold / Ambient • To clean the left (innermost) door, slide both doors to the right until the innermost door´s slot aligns with the guiding pin. NOTE: The outermost door should still be in its rotated position. • Turn the innermost door outwards as well to clean it.
  • Page 29 MCC – Cold / Ambient Cleaning front door(s) (optional) • Clean the outside of the front doors. • Open the front doors and clean the inside of the doors in the same way as the outside. 29/40...

  • Page 30: Cleaning Interior Bottom

    MCC – Cold / Ambient Cleaning interior bottom • Remove the plating of the lower presentation deck to clean the bottom. Cleaning the condenser – Self-Contained Cold units WARNING Cleaning of the condenser must be performed by qualified persons and in a well ventilated environment.

  • Page 31: Malfunctions And Service

    MCC – Cold / Ambient MALFUNCTIONS AND SERVICE WARNING All service operations on the refrigeration system and gas charging must be performed by qualified persons and in a well ventilated environment. Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: •...

  • Page 32: Technical Specifications

    TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Self-contained – Cold self-service models Model 90-2-C SS 120-2-C SS 150-2-C SS Approved for Width 900 mm...
  • Page 33 MCC – Cold / Ambient Self-contained – Cold Full-service models Model 90-2-C FS 120-2-C FS 150-2-C FS Approved for Width 900 mm 1200 mm 1500 mm Depth 750 mm 750 mm 750 mm Height on stand 1420 mm 1420 mm 1420 mm Height above worktop 520 mm...
  • Page 34 MCC – Cold / Ambient Remote – Cold Self-service models Model 90-2-C SS 120-2-C SS 150-2-C SS Approved for Width 900 mm 1200 mm 1500 mm Depth 750 mm 750 mm 750 mm Height on stand 1420 mm 1420 mm...
  • Page 35 MCC – Cold / Ambient Remote – Cold Full-service models Model 90-2-C FS 120-2-C FS 150-2-C FS Approved for Width 900 mm 1200 mm 1500 mm Depth 750 mm 750 mm 750 mm Height on stand 1420 mm 1420 mm 1420 mm Height above worktop 520 mm...
  • Page 36 MCC – Cold / Ambient Ambient models Model 60-2-A 90-2-A 120-2-A 150-2-A Approved for Width 600 mm 900 mm 1200 mm 1500 mm Depth 750 mm 750 mm 750 mm 750 mm Height on stand 1420 mm 1420 mm 1420 mm 1420 mm Height above worktop 840 mm...
  • Page 37 MCC – Cold / Ambient Notes. 37/40...
  • Page 38 MCC – Cold / Ambient Notes. 38/40...
  • Page 39 MCC – Cold / Ambient Notes. 39/40...
  • Page 40 MCC – Cold / Ambient Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 40/40...
