Owner's Manual

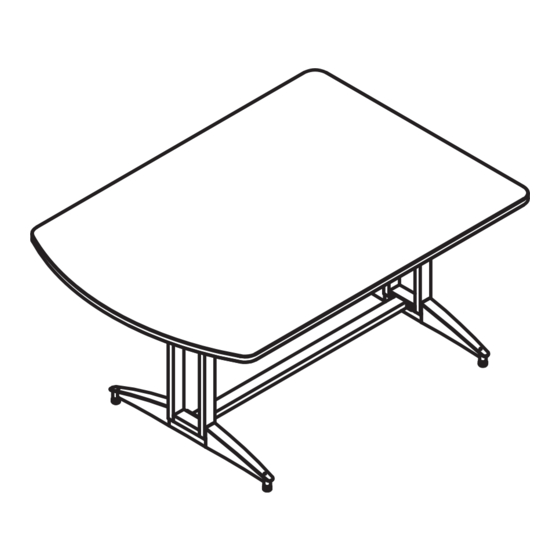

Optio Collaboration Table
37132
Shown with eLift legs, casters,
and AV technology channel
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 5 days of receipt. To report information regarding
missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
Optio 60"L Table
Shown with T-legs
Optio 72"L Table
Optio 96"L Table
Shown with T-legs, and
cord channel
Optio 96"L Table
Shown with tapered worksurface,
eLift legs, casters,
and AV technology channel
0190236 Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optio Collaboration 60 L Table and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectrum Industries Optio Collaboration 60 L Table

Summary of Contents for Spectrum Industries Optio Collaboration 60 L Table

  • Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
  • Page 2 If servicing is unplug by pulling only on the cord. necessary, please contact Spectrum Industries for assistance. • Do not step on, drive over, drag, or place objects on power cords. • For added safety, plug into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker.

  • Page 3: Assembly & Set-Up

    Assembly / Setup 1. Remove base from pallet Phillips screwdriver 1. Remove the banding, packing materials, and screws securing the base to the pallet. Figure 1. Cordless drill with 2. Carefully flip the base off the pallet upright. Two people required. Phillips driver (best) Side cutter...

  • Page 4: Install Worksurface

    3. Install worksurface Phillips screwdriver 1. Set the worksurface onto the base. Figure 3. 2. Attach worksurface by aligning the mounting holes and secure with 1/4-20 x 5/8” PHM screws. Cordless drill with (The screws will attach to the worksurface reinforcement bars). Phillips driver (best) Note: If installing a display stand, do not...
  • Page 5 5. Install filler panel Phillips screwdriver 1. Place the grommet panel under the worksurface at the flat edge. Figure 5. 2. Align the mounting holes and secure with (2) #10 x 3/4” PHSM screws. 3. Install in grommet. Grommet Filler panel (2) #10 x 3/4”...
  • Page 6 eLift operating instructions - eLift equipped tables only Phillips screwdriver 1. Attach the control button bracket under the radiused portion of the worksurface with (2) #8 x 5/8” PHSM screws and pre-drilled pilot holes in the center of the worksurface. 2.
  • Page 7 Accessories (Available separately after initial configured purchase) Slim VESA mount Display stand Display Stand - 37130 • Bolts directly to worksurface • Integrated wiring channel routes and hides wires • Slim VESA mount (non-tilting) • Adjustable (VESA-compatible) mount • Requires worksurface mounting holes and cutout Monitor size range: 37”-70”...
  • Page 8 ™ Cove Power Module - 99044 • Two power receptacles • Requires worksurface cutout • Two USB charge ports • ETL listed (not data-compatible) • Available in Black or Silver • Thumbscrew clamps Cutout required: 5.25” [13.3 cm] x 2” [5.1 cm] (mounts to surface thicknesses up to 1.5”) Power cord: 9’...

  • Page 9: Safety Information

    Electric actuator information Warning! Only for EU markets • This appliance can be used by children aged from 8 years and above and persons with Failure to comply with these instructions may result in accidents involving serious person- reduced physical, sensory or mental capabilities or lack of experience and knowledge if al injury.
  • Page 10 Misc. on the DESKLINE® DL5/DL6 system Electrical connection of the DL5/DL6 system This system is a DESKLINE system developed for desks and for indoor use in offi ces. Do The DESKLINE® DL5/DL6 system is to be connected as shown in Figure 4. Each DL5/ not use it in industrial kitchens or in other enviroments that have to be cleaned with ag- DL6 is to be connected to the sockets on the control box by means of the motor cables, gressive detergents.

  • Page 11: Reset Procedure

    eLift Leg Troubleshooting Guide Symptom Problem Solution Loss of power Be sure unit is plugged into a live circuit. Loose electrical connections Make sure all electrical connections are securely plugged into the control box. 1. Raise the worksurface by pressing the “Up” button. Object encountered under 2.

  • Page 12: Warranty

    • 10 Years • Cart Chassis • Lectern Chassis DESIGNED AND ASSEMBLED IN CHIPPEWA FALLS WISCONSIN.USA 925 FIRST AVENUE, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2017 Spectrum Industries Inc., All rights reserved. 0190236 Page 12 of 12...
