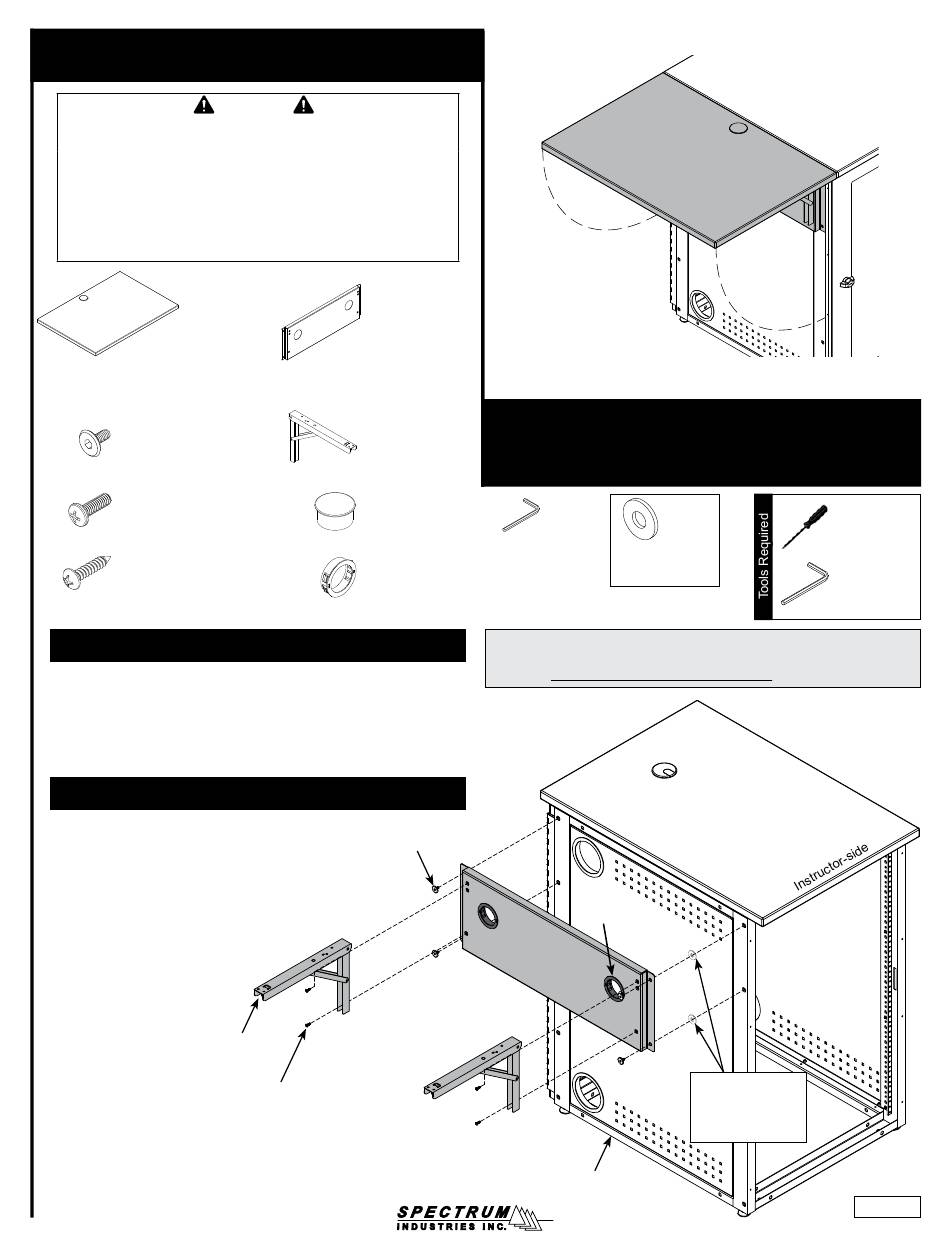

Spectrum Industries 68204 Assembly Instructions

Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0108807
Shelf
(4) 052605
1/4-20 x 15mm
JC bolts
(4) 021587
8-32 x 1/2" PHMS
(8) 026073
#8 x 3/4" PHSM
1. Attach shelf support to equipment rack
1. Align and attach the shelf support to the side of the equipment rack
with (4) 1/4-20 x 15mm JC bolts and tighten securely. Figure 1.
Note: If installing shelf onto a Freedom One eLift equipment
rack, install the (2) 1/4" washers as shown.
2. Install the two snap-in grommets into the shelf support.
2. Attach folding brackets to shelf support
1. Extend and lock the folding shelf brackets
into the horizontal position.
2. Align and attach each folding bracket to
the shelf support with (2) 8-32 x 1/2" PHM
screws. Do not tighten these screws
completely yet.
Folding
bracket
8-32 x 1/2" PHMS
(2 per bracket)
(1) 0108808
Shelf support
(2) 056886
Folding bracket
(1) 039622
2" Round
grommet
(2) 059984 (1) 025039
Snap-in 4mm Hex wrench
grommet
Note: For stability reasons, Spectrum does not recommend attaching the
shelf to a stand-alone equipment rack. Do not exceed 35 lbs of weight
on shelf. Not compatible with end-support legs.
1/4-20 x 15mm
JC bolts
Shelf support
Equipment rack
Flip-up shelf for equipment rack
68204
(2) 026059
1/4" Flat washer
Used on Freedom One
®
equipment racks only
Snap-in
grommet
Freedom One
equipment racks only:
Install (2) 1/4" washers
here on instructor-side
Phillips
Screwdriver
4mm Hex
Wrench
(included)
®
Figure 1
0108810R3 Page 1 of 2
