KNX module

Art.-No.: MSC 1000 KNX

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

These instructions are an integral part of the product, and must remain with the end

customer.

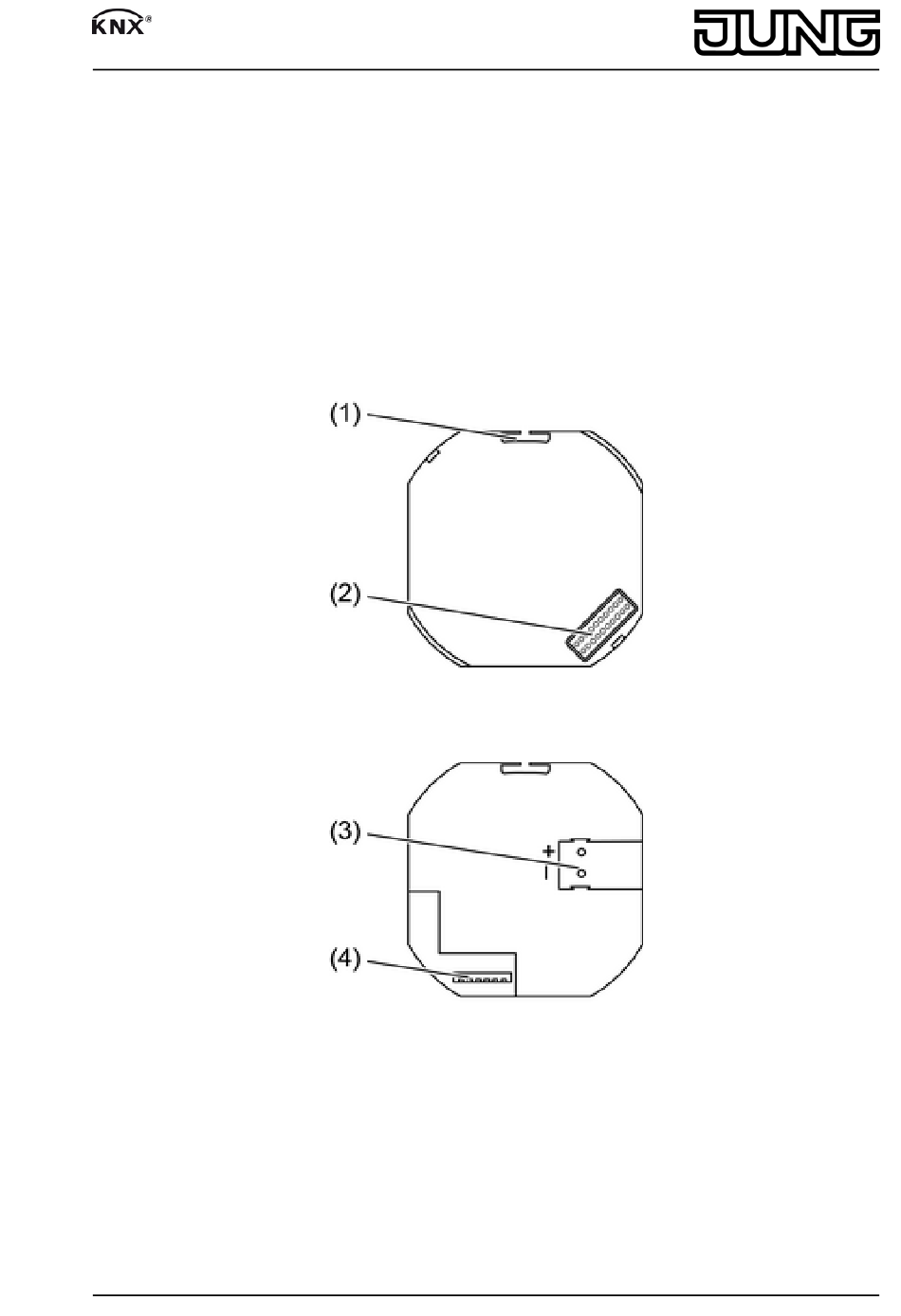

(1) Feedthrough for loudspeaker cable

(2) Connection to Smart Display

(3) KNX connection

(4) Connection of pushbutton expansion module

82577403

J:0082577403

Figure 1: View of front side

Figure 2: View of rear side

1/3

12.06.2012
