Touch sensor module with integrated coupler
Operating Instructions
Touch senor module with integrated
coupler 'Standard / Universal'
1. Safety warnings
Attention: Electrical equipment must be installed and fitted only by
qualified electricians. Risk of electric shock! Risk of electric shock
in the event of malfunction, if the device is fitted in combination with
230 V socket outlets under one cover. For fastening to the
supporting ring, use only the plastic screws supplied with the
device. Failure to observe any of the installation instructions may
cause damage to the device and result in fire and other hazards.
Risk of damage to the device due to electrostatic discharge. Use
only the plastic screws supplied with the device.
2. Function
System information
This device is a product of the KNX system and complies with KNX
directives. Detailed technical knowledge obtained in KNX training courses
is a prerequisite to proper understanding. The functionality of this device
depends on the software. Detailed information on loadable software and
attainable functionality as well as the software itself can be obtained from
the manufacturer's product database. Planning, installation and
commissioning of the unit is effected by means of KNX-certified software.
The full functionality with KNX commissioning software from version
ETS3.0d. onwards. The product database, technical descriptions and
conversion programs and other utilities are available in the Internet at
www.jung.de
Function

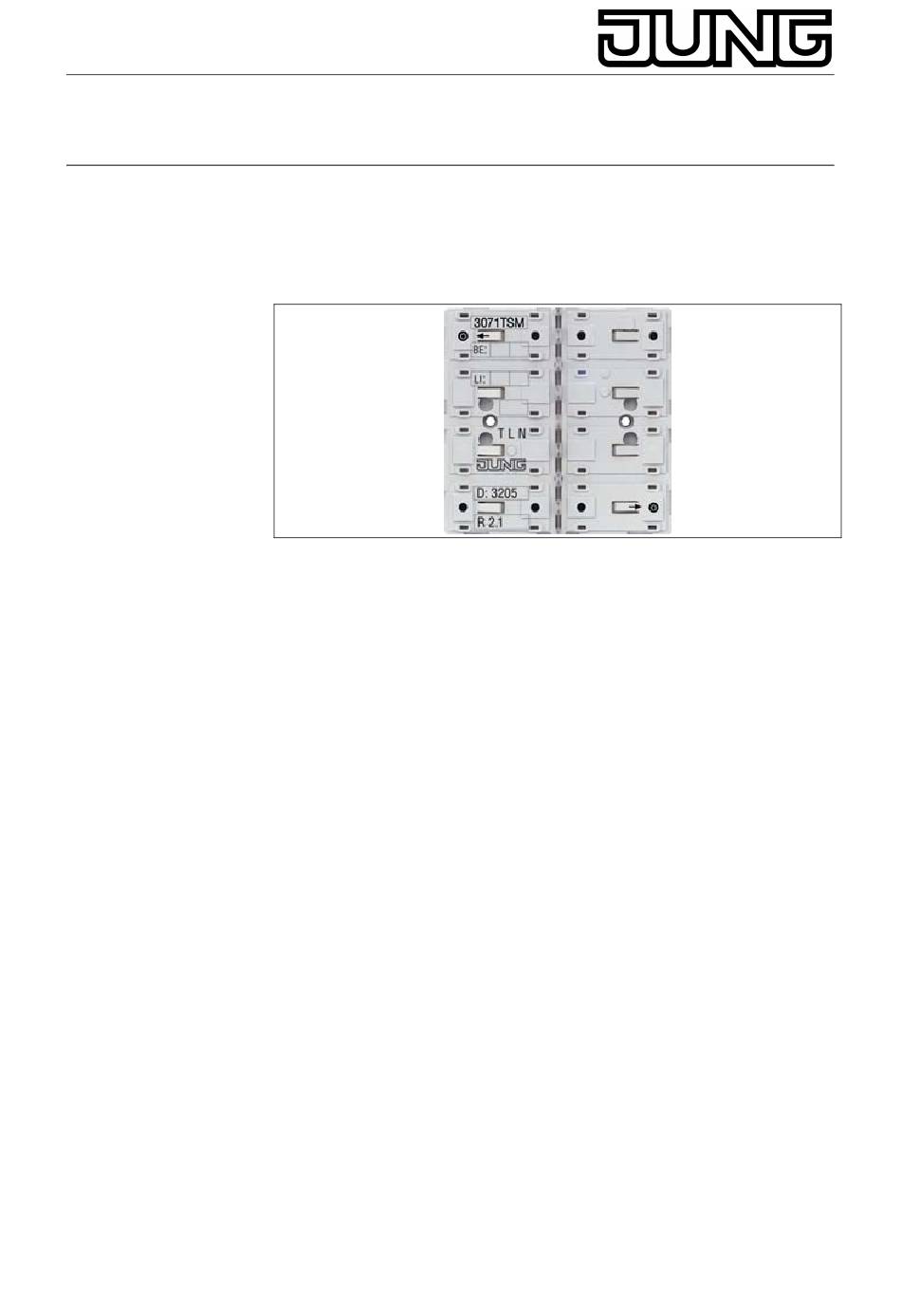

Touch sensor for switching, dimming, shutter operation, value
transmission, recall and storage of lightscenes. Each key rocker is
‚divided' into an upper and a lower half (FIG. A) and has a function
assigned to it. Each rocker is equipped with a red status LED.
The blue operation LED can be used as an orientation light besides
indicating the programming state of the touch sensor module.
'Standard / Universal'
Ref.-no.: 30xx TSM..
