Push-button module with integrated BCU Standard / Universal

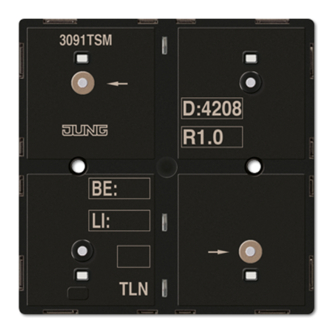

Universal push-button module with integrated BCU, 1-gang
Art.-No.: 3091 TSM
Universal push-button module with integrated BCU, 2-gang
Art.-No.: 3092 TSM
Universal push-button module with integrated BCU, 3-gang
Art.-No.: 3093 TSM
Universal push-button module with integrated BCU, 4-gang
Art.-No.: 3094 TSM
Universal push-button module with integrated BCU, 8-gang
Art.-No.: 3098 TSM
Universal push-button module with illuminated inscription field and integrated BCU, 1-gang
Art.-No.: 3091 TSML
Universal push-button module with illuminated incription field and integrated BCU, -gang
Art.-No.: 3092 TSML
Standard push-button module with integrated BCU, 1-gang
Art.-No.: 3071 TSM
Standard push-button module with integrated BCU, 2-gang
Art.-No.: 3072 TSM
Standard push-button module with integrated BCU, 3-gang
Art.-No.: 3073 TSM
Standard push-button module with integrated BCU, 4-gang
Art.-No.: 3074 TSM
Standard push-button module with integrated BCU, 8-gang
Art.-No.: 3078 TSM
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Electrostatic discharges can cause defects in the device. Use only the supplied plastic
screws.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database.
Planning, installation and commissioning of the device are carried out with the aid of KNX-
certified software. Full functionality with KNX commissioning software version ETS3.0d
onwards.
An updated version of the product database, technical descriptions and conversion programs
and other auxiliary programs are available on our Internet website.
Intended use
-
Serving of user, e.g. light on/off, dimming, blinds up/down, brightness values,
temperatures, calling up and saving light scenes, etc.
-
Installation in appliance box to DIN 49073
Product characteristics
-
The push-button functions switching, dimming, controlling blinds, valuators, calling up
moods, etc., depending on the application selected
-
Completion with button set
32558813
J:0082558813
1/7
19.06.2009
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 3091 TSM
Summary of Contents for Jung 3091 TSM
-
Page 1: Safety Instructions
Push-button module with integrated BCU Standard / Universal Universal push-button module with integrated BCU, 1-gang Art.-No.: 3091 TSM Universal push-button module with integrated BCU, 2-gang Art.-No.: 3092 TSM Universal push-button module with integrated BCU, 3-gang Art.-No.: 3093 TSM Universal push-button module with integrated BCU, 4-gang Art.-No.: 3094 TSM... -
Page 2: Operation
Push-button module with integrated BCU Standard / Universal A blue operation LED as an orientation light and to indicate the programming status Integrated bus coupling unit Push button module standard: A red status LED for each control surface Push button module Universal: One or two functions per control surface Push-button function or rockers function, vertical or horizontal Two red status LEDs for each control surface... -
Page 3: Chapter 4.2. Commissioning)
Push-button module with integrated BCU Standard / Universal Connecting and mounting the device picture 1 (1) Supporting ring (2) Box screws (3) Design frame (4) Button sensor module (5) Plastic screws (6) Covers (7) KNX connection terminal Supporting ring side A for switch design range FD-Design, Supporting ring side B for LS design range. - Page 4 Push-button module with integrated BCU Standard / Universal picture 2 4.2 Commissioning Loading the physical address and application software Configuration and commissioning with ETS3.0d Patch A. The device is connected and ready for operation. The control surfaces are not mounted yet. i If the device does not receive any application software, or the wrong application software, then the blue operation LED flashes slowly.
- Page 5 Push-button module with integrated BCU Standard / Universal Push button module Prog. push-button 2-gang with text field, 8-gang, 4-gang, 3-gang (8) + (9) 1-gang with text field, 2-gang (8) + (10) 1-gang (8) + (11) The operation LED (12) flashes quickly. Load physical address into the device.
-
Page 6: Technical Data
Push-button module with integrated BCU Standard / Universal Assemble control surfaces which can be labelled picture 5 Label customarily used foil or other with help of the Jung labelling software and insert into the buttons (picture 5). Label illuminable text field picture 6 The illuminable text fields are only accessible in unassembled condition. -
Page 7: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
