Jung KNX 5071 TSM Product Documentation

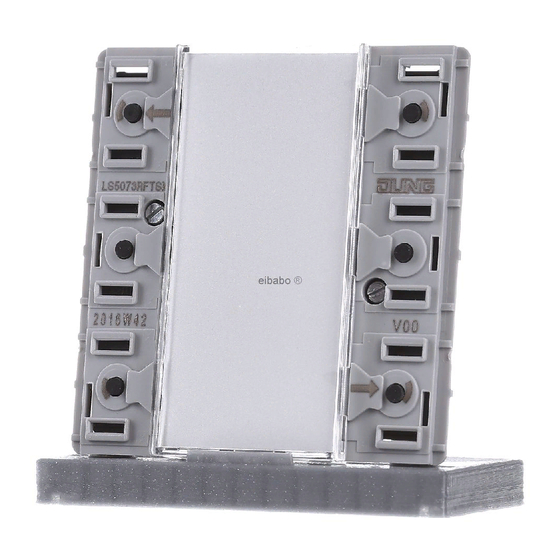

Standard push-button module, 1/2/3/4-gang
Hide thumbs Also See for KNX 5071 TSM:
Table of Contents

Advertisement

Quick Links

Download this manual

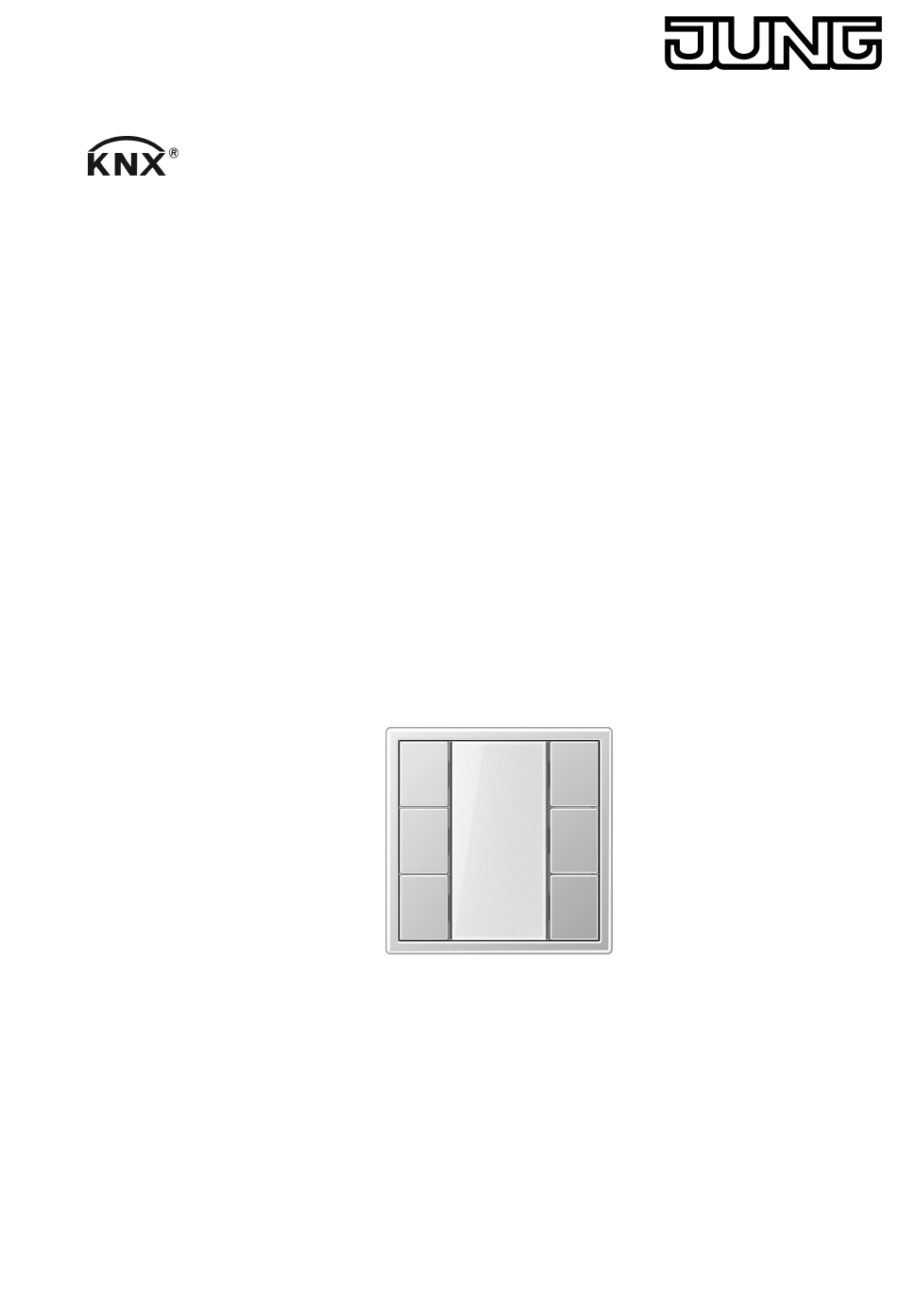

Product documentation
Standard push-button module, 1-gang
Art. No. 5071 TSM
Standard push-button module, 2-gang
Art. No. 5072 TSM
Standard push-button module, 3-gang
Art. No. 5073 TSM
Standard push-button module, 4-gang
Art. No. 5074 TSM
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
Telefon: +49.23 55.8 06-0
Telefax: +49.23 55.8 06-2 04
kundencenter@jung.de
www.jung.de
Service Center
Issue: 09.04.2013
Kupferstr. 17-19
6523x320
44532 Lünen
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX 5071 TSM and is the answer not in the manual?

Questions and answers

Related Manuals for Jung KNX 5071 TSM

Summary of Contents for Jung KNX 5071 TSM

  • Page 1 Art. No. 5072 TSM Standard push-button module, 3-gang Art. No. 5073 TSM Standard push-button module, 4-gang Art. No. 5074 TSM ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de...

  • Page 2: Table Of Contents

    Product documentation Contents 1 Product definition ........................ 1.1 Product catalogue ......................1.2 Function .......................... 1.3 Accessories ........................2 Installation, electrical connection and operation ............. 2.1 Safety instructions ......................2.2 Device components ......................2.3 Fitting and electrical connection ..................2.4 Commissioning .......................

  • Page 3: Product Definition

      Product definition 1 Product definition 1.1 Product catalogue Product name: Standard push-button module, 1-gang / Standard push-button module, 2-gang / Standard push-button module, 3-gang / Standard push-button module, 4- gang Use: Sensor Design: FM (flush-mounted) Art. No. 5071 TSM / 5072 TSM / 5073 TSM / 5074 TSM 1.2 Function Push button functions When its buttons are pushed, the standard pushbutton sensor modules send telegrams to the...

  • Page 4: Accessories

      Product definition 1.3 Accessories Cover kit 1-gang, complete Art. No. ..501 TSA.. Cover kit 2-gang, complete Art. No. ..502 TSA.. Cover kit 3-gang, complete Art. No. ..503 TSA.. Cover kit 4-gang, complete Art. No. ..504 TSA.. Art. No. 5071 TSM Page 4 of 39 Art.

  • Page 5: Installation, Electrical Connection And Operation

      Installation, electrical connection and operation 2 Installation, electrical connection and operation 2.1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. The applicable accident prevention regulations must be observed. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.

  • Page 6: Device Components

      Installation, electrical connection and operation 2.2 Device components Device components of standard push-button sensors TSM Figure 1: Front view, standard pushbutton sensor module, 1-gang (1) 2 control surfaces configurable as rocker 1 or as buttons 1…2. (2) Labelling field (white) (3) 1 operation LED (red, green, blue) (4) 1 status LEDs (red) Figure 2: Front view, standard pushbutton sensor module, 2-gang...
  • Page 7   Installation, electrical connection and operation (12) (12) (12) (10) (11) Figure 3: Front view, standard pushbutton sensor module, 3-gang (9) 6 control surfaces configurable as rocker 1...3 or as buttons 1…6. (10) Labelling field (white) (11) 1 operation LED (red, green, blue) (12) 3 status LEDs (red) (16) (13)

  • Page 8: Fitting And Electrical Connection

      Installation, electrical connection and operation 2.3 Fitting and electrical connection Installing the push button sensor and connecting it (23) (22) 2x (20) 2x (23) (17) (18) (19) (20) (21) Figure 5: Installing the push-button module (17) Supporting frame (18) Design frame (19) Button sensor module (20) Fastening screws (21) Design control surfaces...

  • Page 9: Commissioning

      Installation, electrical connection and operation 2.4 Commissioning After connection and mounting, the pushbutton sensor module can be put into operation. The start-up procedure is basically confined to programming with the ETS and attaching the decorative control surfaces. i The extension module does not receive any physical address of its own. It is activated by the application program loaded in the basic module.
  • Page 10   Installation, electrical connection and operation i If Programming mode is to be activated or deactivated in a device which is already programmed with a valid application, there is the possibility that telegrams will be transmitted to the bus at the time the button is pressed. The telegram transmitted depends on the button function programmed.

  • Page 11: Operation

      Installation, electrical connection and operation 2.5 Operation Control surfaces The standard pushbutton sensor modules consist of several control surfaces. The operation concept can be configured in the ETS either as a rocker function or alternatively as a push button function (only "Switching" function). With the rocker function, two neighbouring control surfaces are combined into one rocker switch.

  • Page 12: Technical Data

      Technical data 3 Technical data General Protection class Mark of approval KNX/EIB Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C KNX/EIB supply KNX medium TP 1 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Power consumption KNX max.

  • Page 13: Software Description

      Software specification 4 Software description 4.1 Software specification ETS search paths: Push-button / Push-button, 1-gang / Standard push-button module, 1-gang Push-button / Push-button, 2-gang / Standard push-button module, 2-gang Push-button / Push-button, 3-gang / Standard push-button module, 3-gang Push-button / Push-button, 4-gang / Standard push-button module, 4-gang Configuration: S-mode standard...
  • Page 14   Software specification Application for standard pushbutton sensor module, 3-gang: No. Short description Name Version from mask version Standard push button sensor Standard TSM application: 110C11 for ETS3.0 Six control surfaces, alternatively as a Version d rocker or push-button function (only onwards switching possible with push-button and ETS4...

  • Page 15: Software "Standard Tsm 110X11

    Software "Standard TSM 110x11" Scope of functions 4.2 Software "Standard TSM 110x11" 4.2.1 Scope of functions Scope of functions Each control surface can be used as independent button or – when linked with the opposite button – as a rocker function. Each rocker can be used for the functions 'switching', 'dimming', 'blind/shutter', '1-byte value transmitter' and 'scene extension'.

  • Page 16: Notes On Software

    Software "Standard TSM 110x11" Notes on software 4.2.2 Notes on software ETS configuration and commissioning Configuration and commissioning of the device with the following ETS versions... ETS3.0 Version d or higher ETS4.0.7 or higher The necessary product database is offered in the *.VD4 format. No product database is available for ETS2 and older versions of ETS3.

  • Page 17: Object Table

    Software "Standard TSM 110x11" Object table 4.2.3 Object table Number of communication objects: max. 17 objects (4-gang variant) Number of addresses (max): Number of assignments (max): 4.2.3.1 Objects for rocker or button functions Objects for rocker or button function: Function: Switching Object Function...
  • Page 18 Software "Standard TSM 110x11" Object table Function: Venetian blind Object Function Name Type Flag 0, 2, Short time operation Rocker 1 1-bit 1.007 C, -, T, (R) 4, 6 Description 1-bit object for the transmission of telegrams with which a Venetian blind or shutter drive motor can be stopped or with which the blind slats can be adjusted by short time operation.

  • Page 19: Objects For Status Led

    Software "Standard TSM 110x11" Object table 4.2.3.2 Objects for status LED Objects for status LED: Function: Status LED (control via separate LED object) Object Function Name Type Flag Switching Status LED 1 1-bit 1.xxx C, W, -, (R) Description 1-bit object for activation of the status LED. 1: The objects have been described for status LED 1 as an example.

  • Page 20: Object For Energy Saving Mode

    Software "Standard TSM 110x11" Object table 4.2.3.3 Object for energy saving mode Object for energy saving mode: Function: Energy saving mode Object Function Name Type Flag Activate / deactivate Energy saving 1-bit 1.001 C, W, -, (R) mode Description 1-bit object for activating or deactivating the energy saving mode. The function (only activate, only deactivate, activate and deactivate) and the telegram polarity are configurable.

  • Page 21: Functional Description

    Software "Standard TSM 110x11" Functional description 4.2.4 Functional description 4.2.4.1 General settings 4.2.4.1.1 Operation concept and button evaluation In the ETS, the change-over between rocker and button operation takes place on the "Operation concept" parameter page. The "Operation concept..." parameters specify for each control surface whether the opposing buttons are combined into a common rocker function, or are evaluated as two separate pushbutton functions.

  • Page 22: Operation Led

    Software "Standard TSM 110x11" Functional description 4.2.4.1.2 Operation LED Some of the functions of the operation LED of the pushbutton sensor modules are permanently predefined internally: In a non-programmed device (delivery state) or with an incorrectly-loaded application program, this LED flashes at a slow frequency of approx. 0.75 Hz. For this case, the colour is permanently set to blue.

  • Page 23: Rockers And Button Functions

    Software "Standard TSM 110x11" Functional description 4.2.4.2 Rockers and button functions The following contains descriptions of the various functions that can be configured for the rocker switches or buttons of the push-button in the ETS. Only the "Switching" function can be configured for the "Button"...

  • Page 24: Dimming Function

    Software "Standard TSM 110x11" Functional description 4.2.4.2.2 Dimming function For each rocker with the function set to "Dimming", the ETS indicates a 1-bit object and a 4-bit object. Generally, the push button sensor transmits a switching telegram after a brief press and a dimming telegram after a long press.

  • Page 25: Blind Function

    Software "Standard TSM 110x11" Functional description 4.2.4.2.3 Blind function For each rocker with the function set to "Venetian blind", the ETS indicates the two 1-bit objects "Short-time operation" and "Long-time operation". The status LEDs can be configured independently (see page 28). For the control of Venetian blind, roller shutter, awning or similar drives, the push-button supports the operation concept "Long - short or short", in which the telegrams are transmitted in different time sequences.

  • Page 26: Value Transmitter Function

    Software "Standard TSM 110x11" Functional description 4.2.4.2.4 Value transmitter function For each rocker switch, whose function is set to "1-byte value transmitter", the ETS indicates a 1-byte object. On pressing a button, the configured value is transmitted to the bus. Different values can be configured for the two buttons of a rocker switch.

  • Page 27: Scene Extension Function

    Software "Standard TSM 110x11" Functional description 4.2.4.2.5 Scene extension function For each rocker with the function set to "scene extension unit" the ETS indicates the "Function" parameter which distinguishes between the following settings... "Scene extension without storage function", "Scene extension with storage function", In the scene extension function, the push button sensor transmits a preset scene number (1…64) via a separate communication object to the bus after a button-press.

  • Page 28: Status Led

    Software "Standard TSM 110x11" Functional description 4.2.4.3 Status LED The Standard push-button modules have one red status LED for each rocker switch. The following functions are configurable for each status LED, irrespective of the set button or rocker function... always OFF, always ON, Control via separate LED object, Button-press display.

  • Page 29: Energy Saving Mode

    Software "Standard TSM 110x11" Functional description 4.2.4.4 Energy saving mode The device has an energy-saving mode to save electrical energy during operation. If the function is used, the device switches to the energy saving mode after a preset time without operation or switches to a separate object controlled by an external telegram (see "Activating energy saving mode").
  • Page 30 Software "Standard TSM 110x11" Functional description If an operation deactivates the energy saving mode, the device always executes the configured operating function immediately as well (e.g. switching, dimming, etc.). i The communication object of the energy saving mode can either be used just for activation, or alternatively just for deactivation, or if required, for the combined activation and deactivation, too.

  • Page 31: Delivery State

    Software "Standard TSM 110x11" Functional description 4.2.4.5 Delivery state For as long as the device has not yet been programmed with application data by means of the ETS, the operation LED (Colour: blue) flashes at a slow rate (approx. 0.75 Hz). When any of the buttons are pressed, the appropriate status LED lights up for the duration the button is pressed (button-press display).

  • Page 32: Parameters

    Software "Standard TSM 110x11" Parameters 4.2.5 Parameters Description Values Comment h General Light period of status 1 sec This parameter defines the switch-on LED for button-press 2 sec time the status LED is lit up to indicate indicator 3 sec actuation.
  • Page 33 Software "Standard TSM 110x11" Parameters Command on pressing no reaction These parameters specify the reaction right rocker when the right rocker is pressed. TOGGLE Only for "Dimming": Command on pressing Brighter (ON) This parameter defines the reaction left rocker Darker (OFF) when the left rocker is pressed.
  • Page 34 Software "Standard TSM 110x11" Parameters Time between short and 1 … 4 … 3000 This parameter sets the time after which long time command, the long-time operation will be evaluated right rocker on pressing the right button of the (1 … 3000 x 100 ms) rocker.
  • Page 35 Software "Standard TSM 110x11" Parameters sensor is used as a scene extension, Scene extension with the scenes can either be stored in one storage function or in several external KNX devices (e.g. light scene push button sensor). During a scene recall or in a storage function, the push button sensor transmits a telegram with the respective scene number via the extension object...
  • Page 36 Software "Standard TSM 110x11" Parameters h R1 - Status LED h B1/B2 - Status LED Function of status LED always OFF Irrespective of the pushbutton or rocker function, the status LED is switched off permanently. always ON Irrespective of the pushbutton or rocker function, the status LED is switched on permanently.
  • Page 37 Software "Standard TSM 110x11" Parameters These can either be combined together automatically by time or by or used separately. Firstly, the object pushbutton sensor can be set to the energy saving mode by a group telegram via a communication object designated for this purpose.

  • Page 38: Appendix

      Appendix 5 Appendix 5.1 Index application program ....... 10 Control surfaces ........11 decorative control surfaces ....10 Device components ....... 6 energy-saving mode ......29 ETS configuration ........16 physical address ........9 product database ..
  • Page 39   Appendix ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de Service Center Kupferstr. 17-19 44532 Lünen Germany Art. No. 5071 TSM Page 39 of 39 Art. No. 5072 TSM Art.
