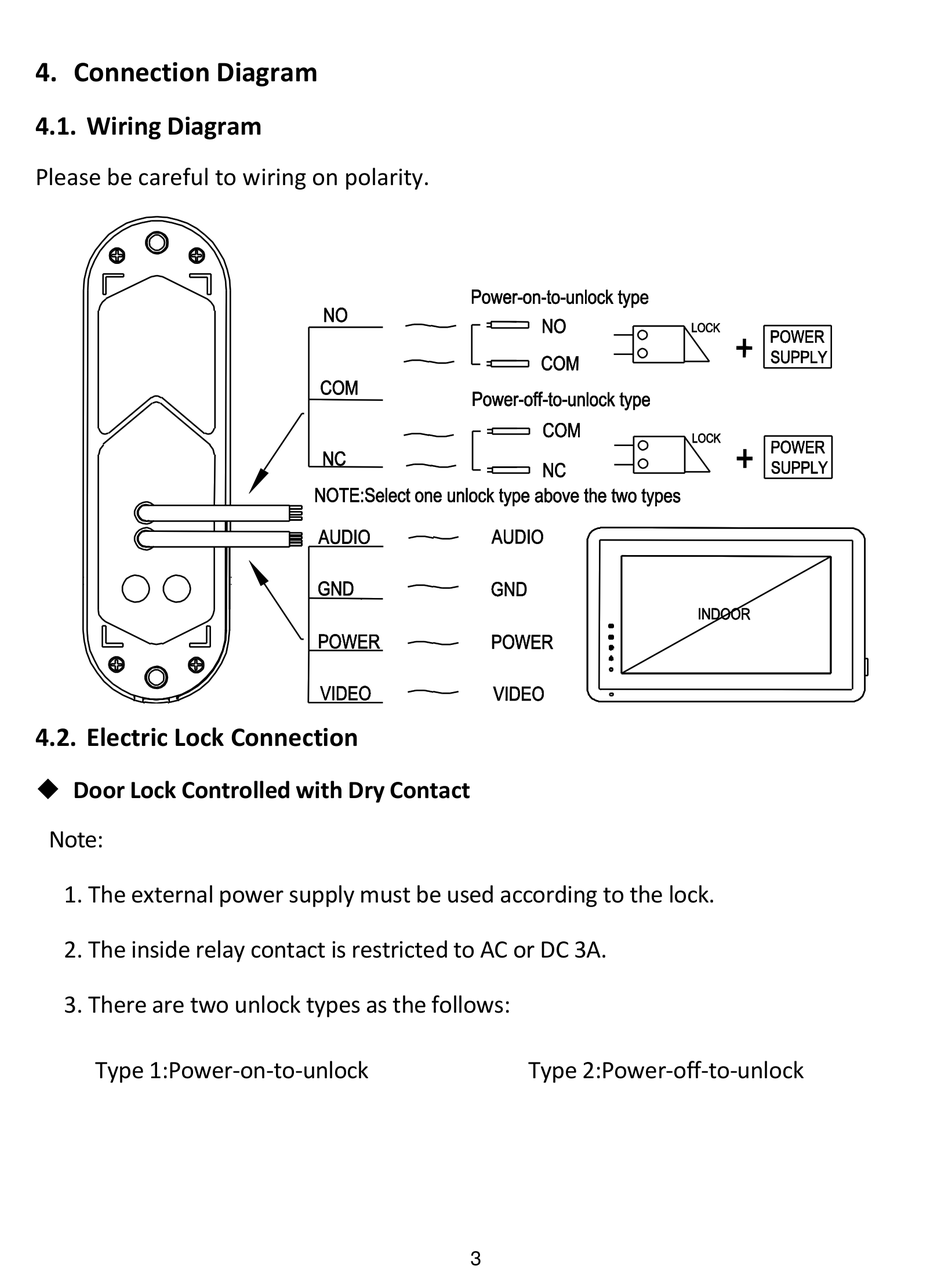

4. Connection Diagram

4.1. Wiring Diagram

Please be careful to wiring on polarity.

4.2. Electric Lock Connection

 Door Lock Controlled with Dry Contact
Note:
1. The external power supply must be used according to the lock.
2. The inside relay contact is restricted to AC or DC 3A.
3. There are two unlock types as the follows:
Type 1:Power-on-to-unlock Type 2:Power-off-to-unlock
