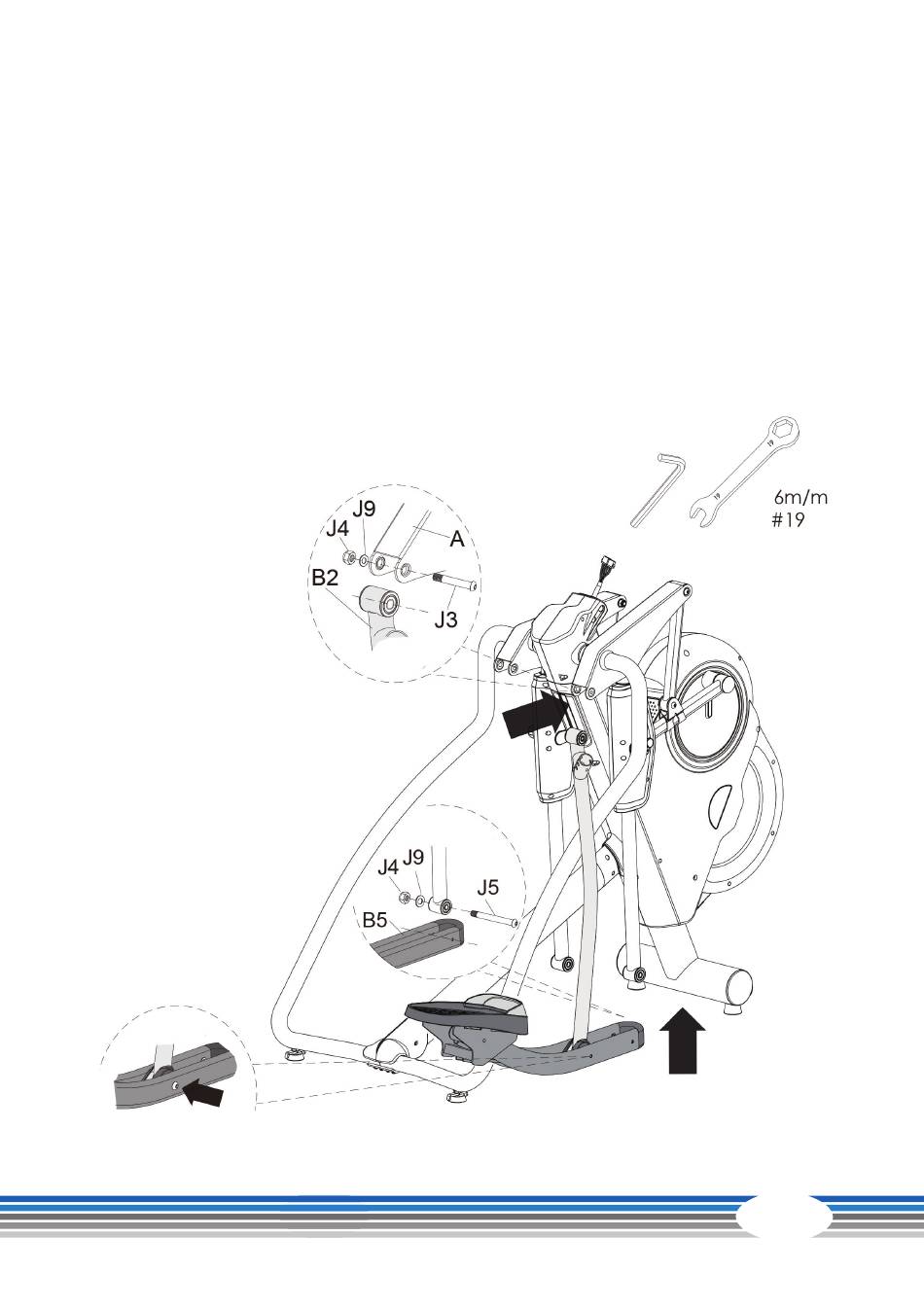

Step 5:
Assembly of the Pedal Supporting Tubes
1.
Mount the right pedal supporting tube (B2) to the top of the main frame (A) using one screw
(J3), one washer (J9) and one nut (J4), see view C.
2.
Mount the right pedal supporting tube (B2) to the bottom of the main frame (A) using one
screw (J5), one washer (J9) and one nut (J4), see view D.
3.
Completely tighten the screws and nuts one after the other, see views C, D and E.
4.
Repeat the steps for the left side.
View C
View E
View D
17
