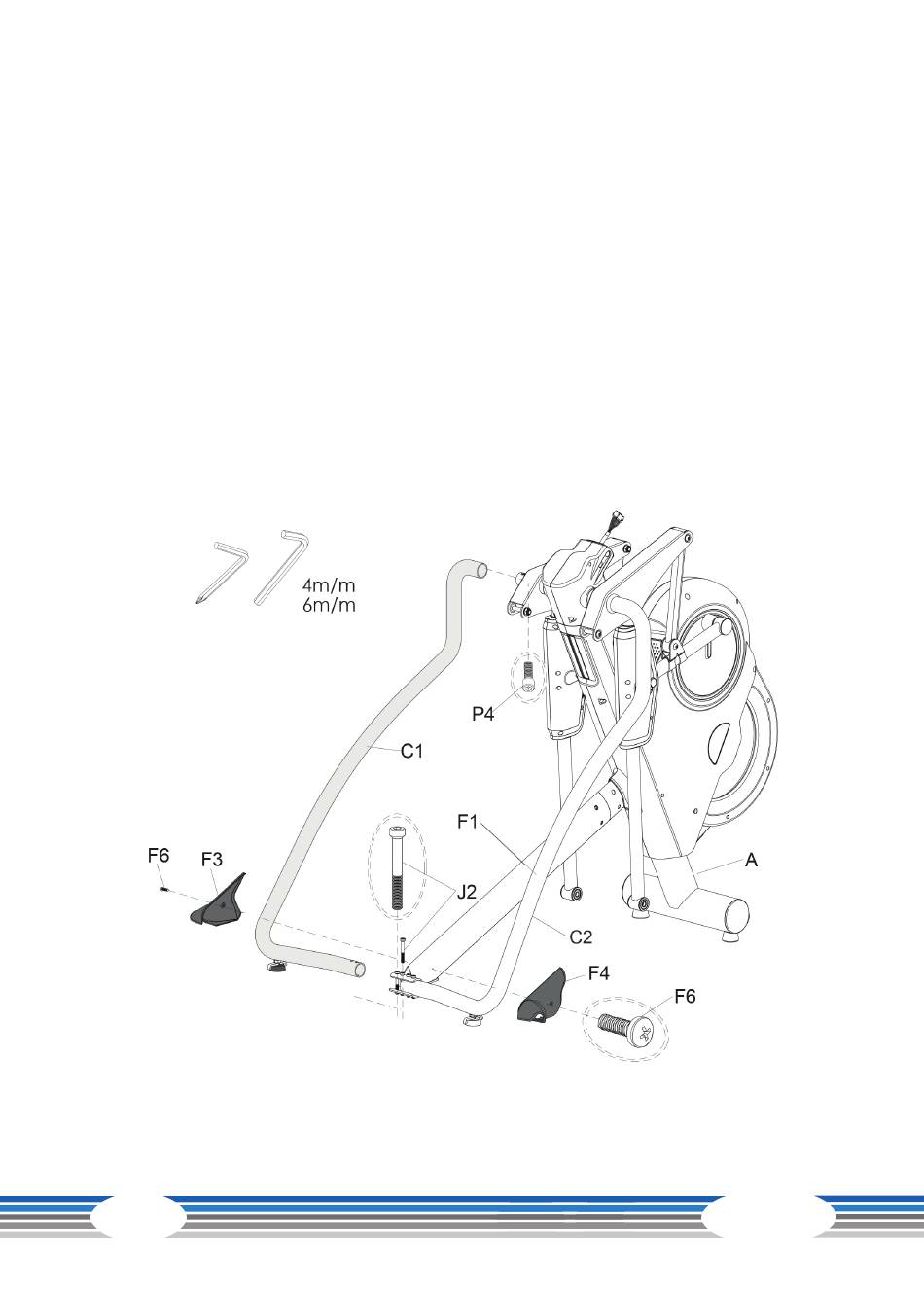

Step 4:
Assembly of the Left Connecting Tube and Joint Covers
1.
Mount the left connecting tube (C1) to the main frame (A) using one screw (P4).
2.
Mount the left connecting tube (C1) to the iron bracket (F2) on the bottom of the main frame
(A) using two screws (J2).
3.
Tighten all screws from the steps before.
4.
Remove the two pre-assembled screws (F6) from the central supporting tube (F1).
5.
Mount the joint covers (F3 & F4) to the central supporting tube (F1) using the previously
removed screws (F6).
16
EX80
