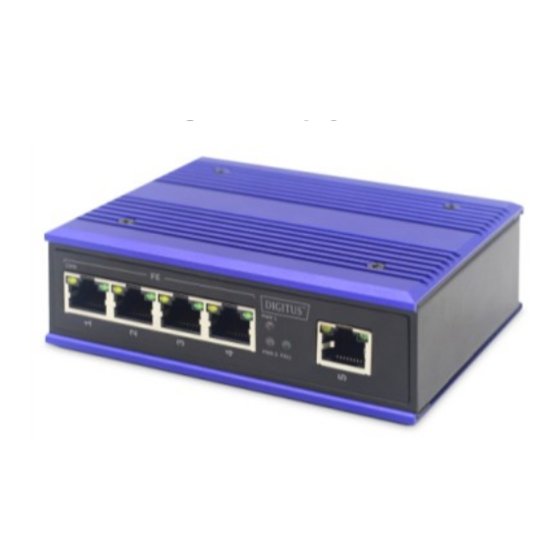

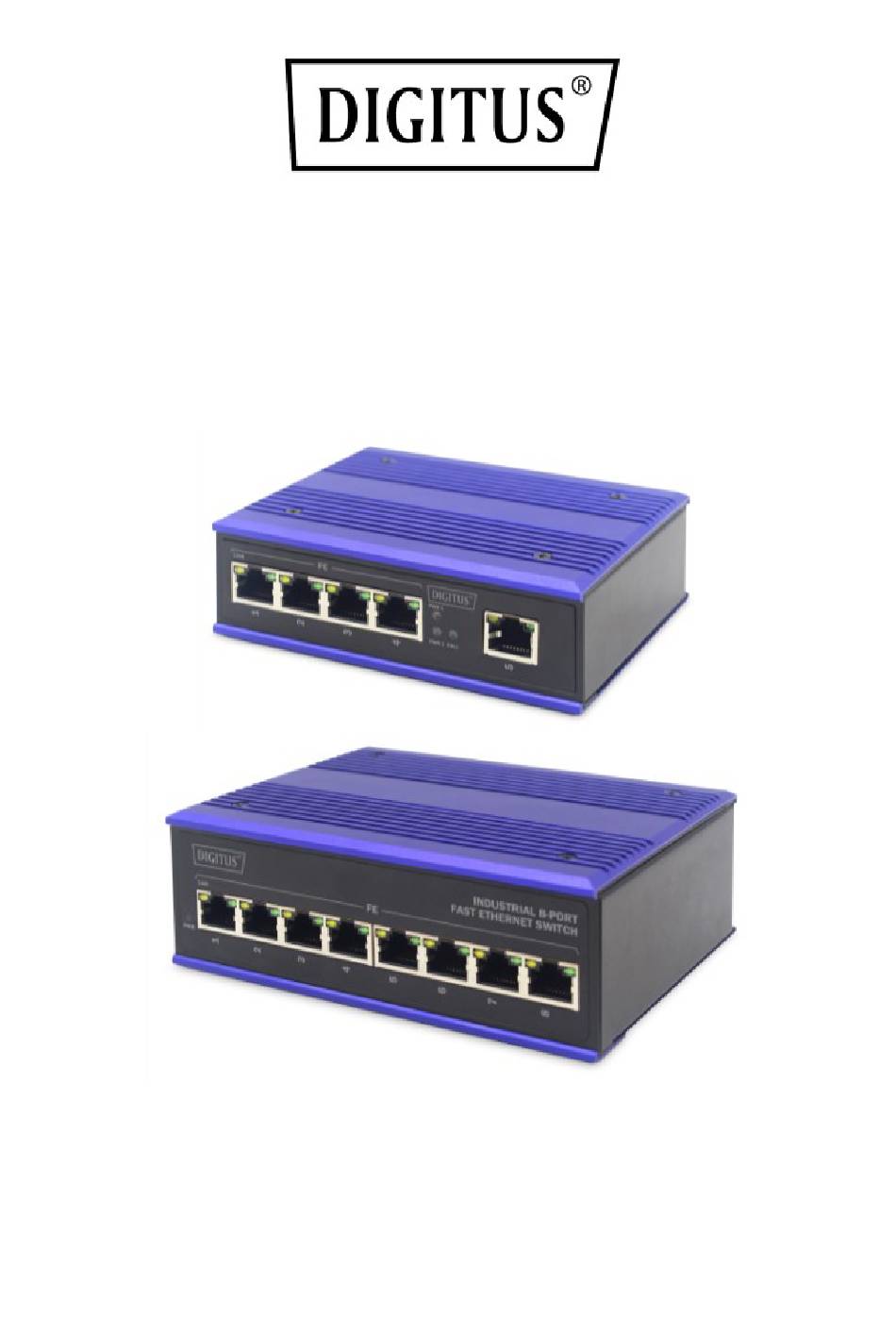

- Page 1 Industrial Fast Ethernet Switch User Manual DN-650105 (5-port) • DN-650106 (8-port)
-
Page 2: Package Contents
Package Contents Check the following contents of your package: Network Switch x 1 User Guide x1 Terminal block x 1 DIN Rail mount x 1 If any part is lost and damaged, please contact your local agent immediately. -
Page 3: Hardware Description
Hardware Description Front Panel The Front Panel consists of Ethernet Ports. The LED indicators are also located on the panel. DN-651105 DN-651106... -
Page 4: Led Indicator
LED indicator Color Function Off: No Power supply PWR 1 Light: Indicates the switch has power Off: No Power supply PWR 2 Light: Indicates the switch has power Off: No device is connected to the corresponding port Light: Indicates the link through that port is successfully established LINK Orange... -
Page 5: Upper Panel
Upper Panel The upper panel has a standard 6-Pin industrial power input terminal for double redundant power backup and accepts DC power input. Power input This unit provides a 6-pin terminal block. It can be operated using 12-48 V DC power source. Always make sure your input voltage is within this supported voltage range. - Page 6 Figure: WARNING: Always SHUT OFF power source to connect power wire. WARNING: Any exceeded input voltage will not make this unit function and may damage this unit. Grounding column The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) with Ground Cable.
-
Page 7: Installation Of The Switch
Installation of the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions to avoid incorrect installation causing device damage and security threat. Before cleaning the switch, unplug the power plug of the switch first. -
Page 8: Din-Rail Mounting
DIN-Rail Mounting The DIN-Rail is already screwed on the Industrial Equipment. Please refer to following figures and know how to hang the Industrial Equipment: Step 1: Lightly press the button of DIN-Rail into the track. Install Industrial Equipment in DIN-Rail mount. Step 2: Check the DIN-Rail is tightly on the track. - Page 9 Remove DIN-Rail Mounting Step 1: Please refer to following procedures to remove the Industrial Equipment from the track. Remove Industrial Equipment in DIN-Rail mount. Step 2: Lightly press the button of DIN-Rail for remove it from the track.
-
Page 10: Specifications
Specifications Industrial Industrial Model 5-Port Fast 8-port Fast Ethernet Switch Ethernet Switch IEEE802.3, IEEE802.3u, Standard IEEE802.3ab, IEEE802.3x 10BASE-T: Network Media UTP category 3, 4, 5 cable (≤100m) (Cable) 100BASE-TX: UTP category 5 cable (≤100m) MAC Address Table 2K, Auto-learning, Auto-aging Transfer mode Store-and-Forward Switching Capacity... - Page 11 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
