Product Data Sheet
www.moteck.com

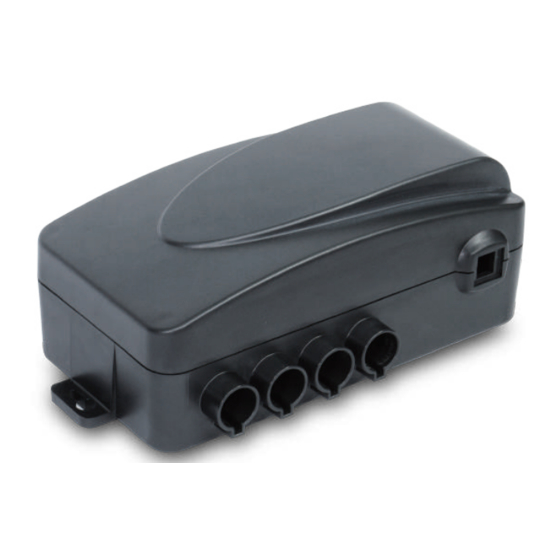

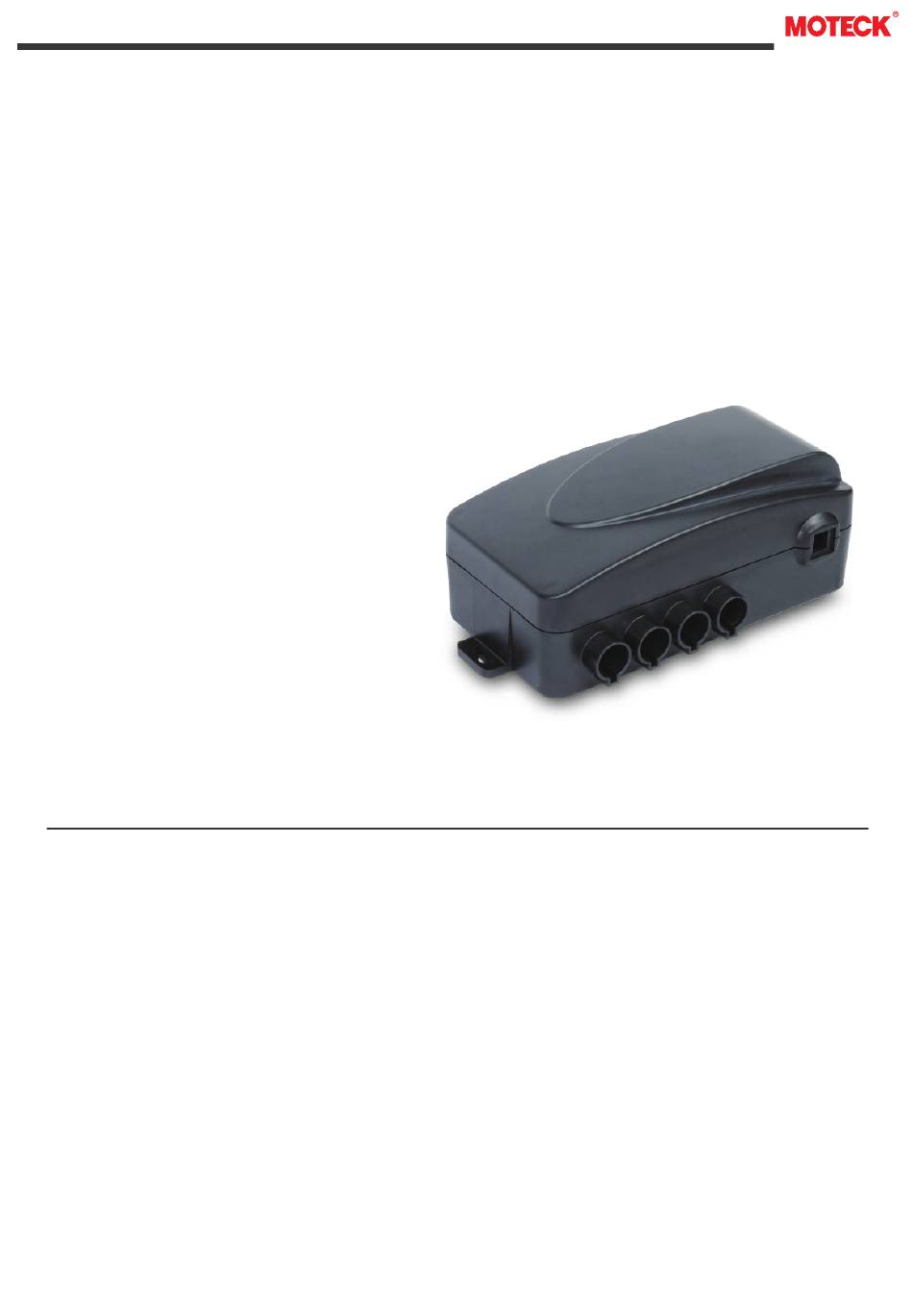

Control Box
CB3T
CB3T is compact control box designed for home bed,
care bed, and other furniture applications. It is able to
drive up to 3 actuators, with the optional synchronization
function. There are two versions in this series as CB3T
and CB3T-SY.

Features and Options

● Main applications: Furniture, Home care
● Standards features:
● Input: 120V AC 60Hz / 230V AC 50Hz (EI transformer) or 100 ~ 240V AC, 50/60Hz (SMPS)
● Output voltage: 24V DC (EI transformer), 29V DC (SMPS)
● Output rated current: 3.0A per channel for CB3T, 5.0A in total for CB3T-SY
● Max. number of actuators: 3 channels
● Max. number of controls: 1 channel
● Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
● Over-current protection function
● Color: Black
● Electric shock protection level: Class II
● Power cord length: 3000mm
● Certified: CE Marking, EMC Directive 2014/30/EU, LVD Directive 2014/35/EU
Options:
● CB3T (standard version): Without synchronization
● CB3T-SY (synchronous version): Synchronous movement for 2 actuators
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB3T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MOTECK CB3T

  • Page 1 ● Input: 120V AC 60Hz / 230V AC 50Hz (EI transformer) or 100 ~ 240V AC, 50/60Hz (SMPS) ● Output voltage: 24V DC (EI transformer), 29V DC (SMPS) ● Output rated current: 3.0A per channel for CB3T, 5.0A in total for CB3T-SY ● Max. number of actuators: 3 channels ●...
  • Page 2 Dimensions 71.5 Unit: mm I/O Introduction AC power cord Actuator #3 Actuator #2 Control #1 Actuator #1...
  • Page 3 3A current per channel • Motor speed ~6000rpm The feedback signal phase of dual Hall effect sensors from actuators must be “Type A” defined by notice Moteck in order to be compatible with CB3T. Hand control Version Control port...
  • Page 4 Socket Hand control socket for Moteck F-type DIN plug ● CB3T (standard version): Moteck control category P1 - 3 drives model - 1 drive model / 2 drives model 8-pin socket 5-pin socket ● CB3T-SY (synchronous version): Moteck control category P2...
  • Page 5 Operating Guide For CB3T-SY version (with example of HM 6-key hand control): ● System learning through HM6R hand control Press button at the same time until the actuators start to move. The learning is done after both actuators move to the fully retracted position.
  • Page 6 Terms of Use The user is responsible for application suitability of Moteck products. As ongoing improvement process continues, products listed on the Moteck website are subject to change without prior notice. Moteck reserves the right to terminate the sales or remove any product displayed on the website, or listed in its catalogues.
