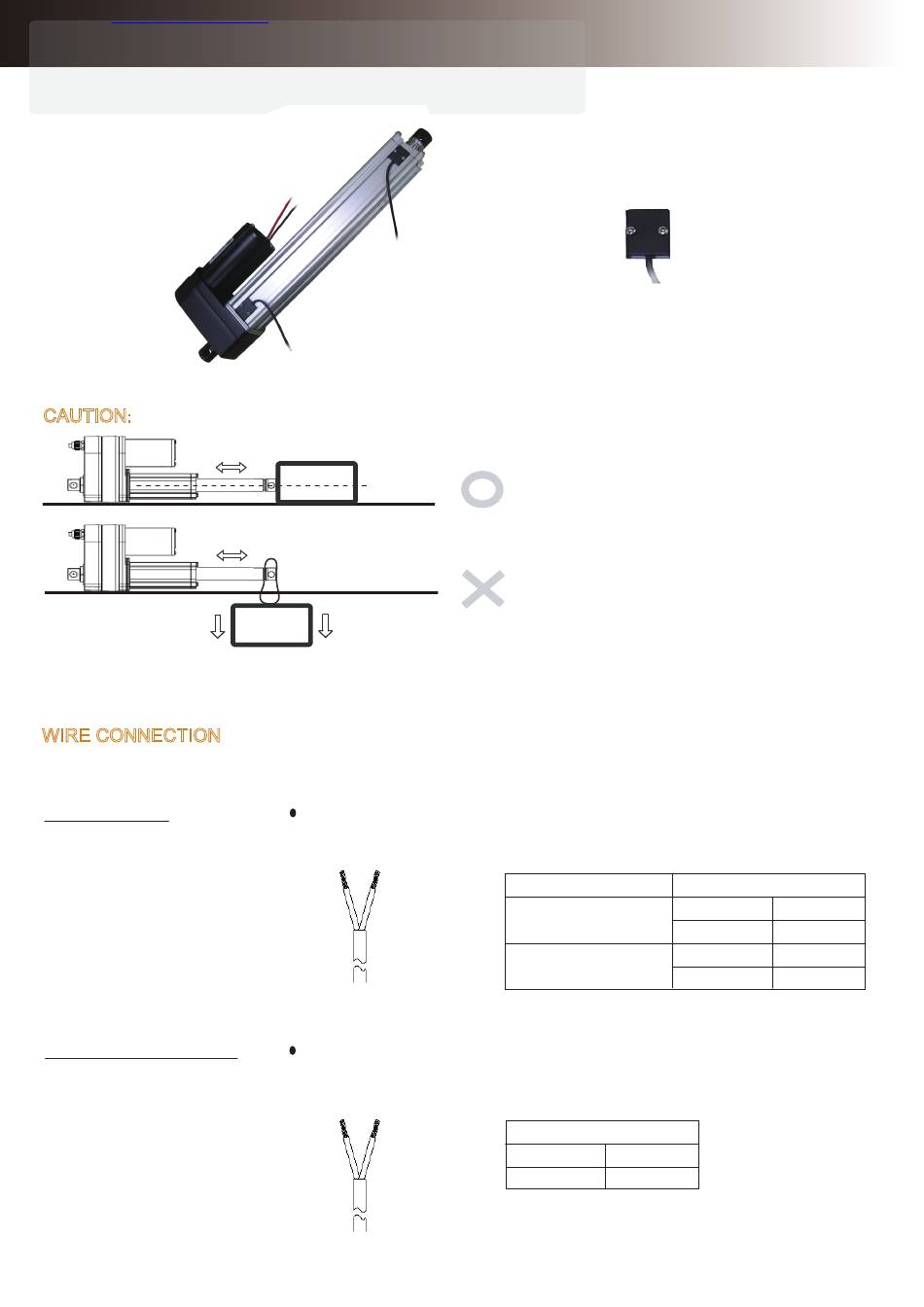

User Guide
Industrial Actuator
CAUTION
CAUTION
:
:

WIRE CONNECTION

WIRE CONNECTION
For ID12 actuators, connection rule of power wires varies according to different types and gear ratio(s).
Please follow the instructions below.
Standard Type
With Limit Switch Type
8 (499) 703-13-84 aktuator-mail@mail.ru
KG
Load
KG
Side Load
Please refer to the table below to define the actuator's extension.
Red and Black is the color of wires, M+ is "+" and M- is "-" of DC power.
Please refer to the table below to define the actuator's extension.
When Red (M+) is connected to "+" and Black (M-) is connected to "-" of
DC power the actuator will extend.

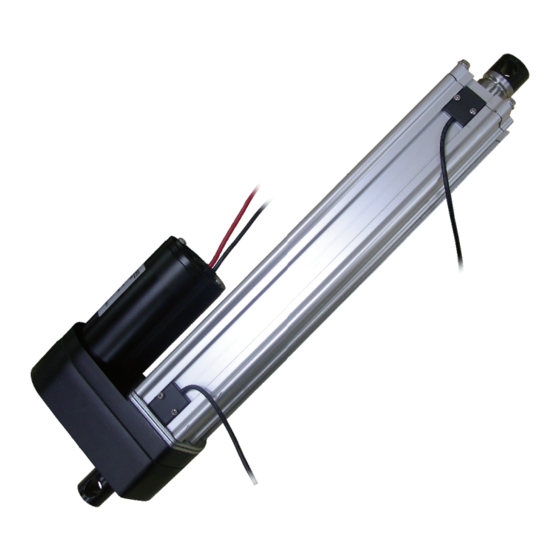

Model: 01US12
External adjustable reed sensor
NC type (normal close)
The load should be centered on the operating direction.
Side Load is NO good for actuators.
Gear Ratio
5:1,10:1, 20:1
30:1, 40:1
Wiring
Red
Black
Wiring
Red
M+
Black
M-
Red
M-
Black
M+
M+
M-
