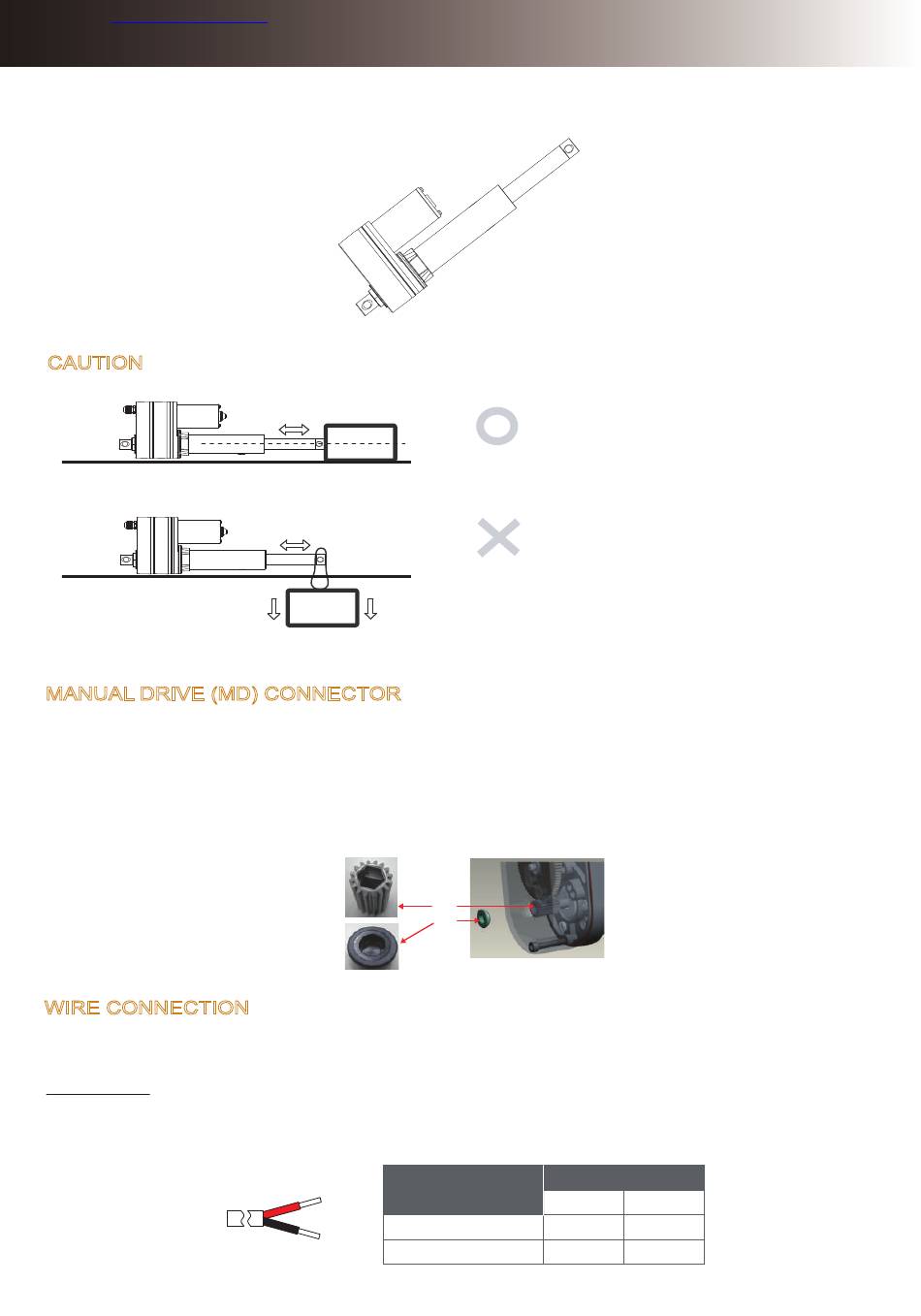

User Guide
Industrial Actuator
CAUTION
CAUTION

MANUAL DRIVE (MD) CONNECTOR

The MD (manual drive) is an alternative way to drive the motor directly, if the power is not available.
Step 1.
Remove the plug on the gearbox cover.
Step 2.
Use a 8.0mm hex bit or electric screwdriver (recommended) to drive the gear directly.
Step 3.
Insert the plug into the hole, and confirm the plug is installed properly.
The Max. drive torque is 6kg-cm with 4500N load.(Ball Screw)

WIRE CONNECTION

For 01US10 actuators, connection rule of power wires varies according to different types and gear
ratio(s). Please follow the instructions below.
Standard Type
8 (499) 703-13-84 aktuator-mail@mail.ru
KG
Load
KG
Side Load
Please refer to the table below to define the actuator's extension. When Red (M+)
is connected to "+" and Black (M-) is connected to "-" of DC power, the actuator
will extend.
Model: 01US10
The load should be centered on the operating direction.
Side load is NOT good for actuators.
Gear
Plug
Gear ratio
Red
5:1, 10:1, 20:1
M+
30:1, 40:1
M-
Power
Black
M-
M+
