User Guide
Industrial Actuator

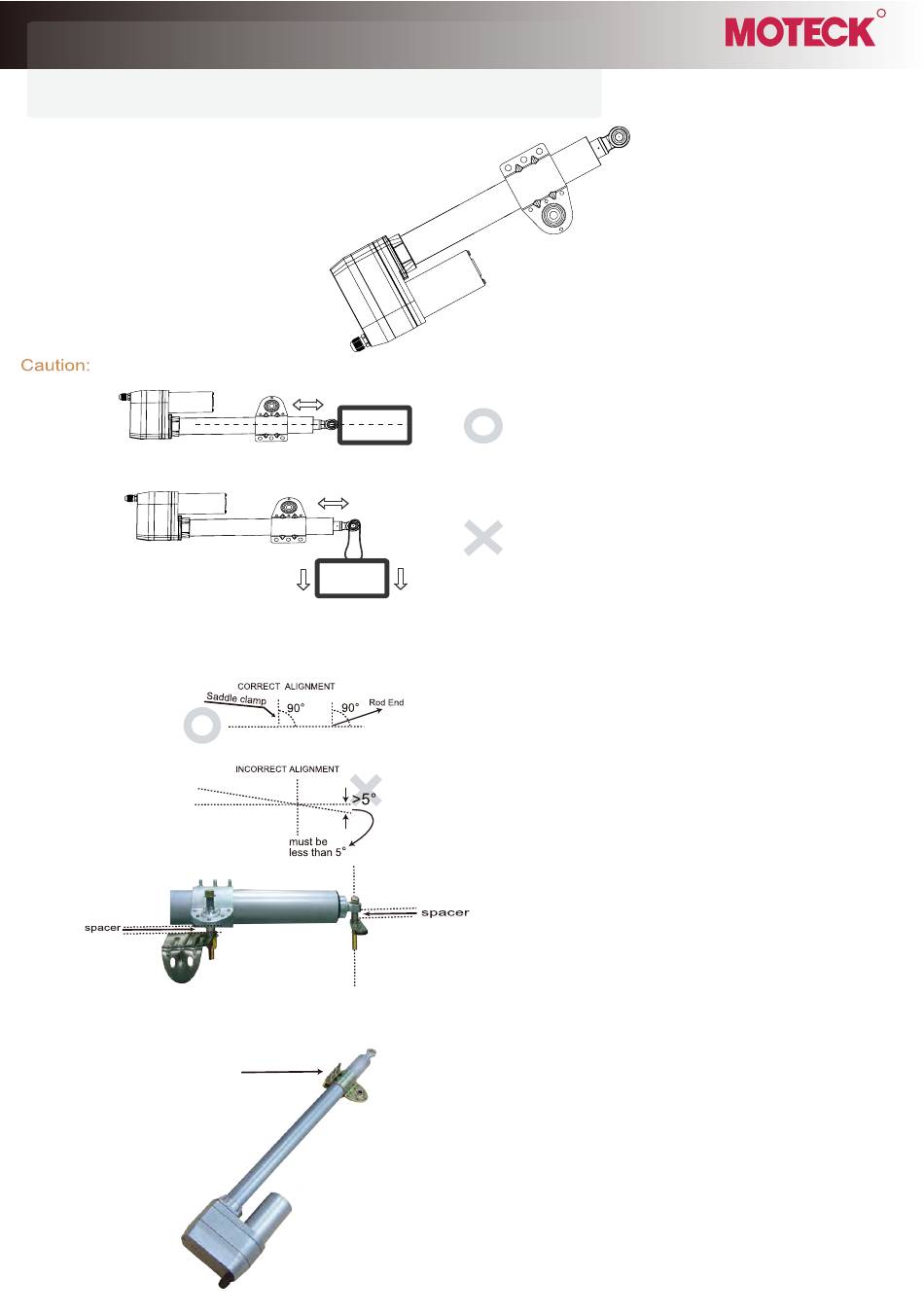

Caution:
1. Avoid in any case to cause side load on actuator, to prolong life of actuator
2. Avoid incorrect assembly of rod end and saddle clamp
3. Lock the screws
Screw them tight
Model: ID10S
KG
Load
The load should be centered on the operating direction.
Side Load is NO good for Actuator.
KG
Side Load
When inspecting from the side, actuator should be as
perpendicular as possible to the rod end and saddle
clamp.
If there is blocking when actuator extends or retracts,
put spacers or washers between mounting and clamp
or rod end as shown in the left picture.
Make sure all the holes of rod end and clamp are at the
right position, then lock all the screws, and then confirm
all of them are tightened enough. It is recommended to
lock the screws of clamp first.
R
MOTORIZE OUR WORLD
