User Guide
Control Box
CM43

Table of Contents

Revision
Technical changes may be made to improve the product without notice!
2022.01_V1.0
www.moteck.com
1
2
4
6
7
10

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MOTECK CM43

  • Page 1: Table Of Contents

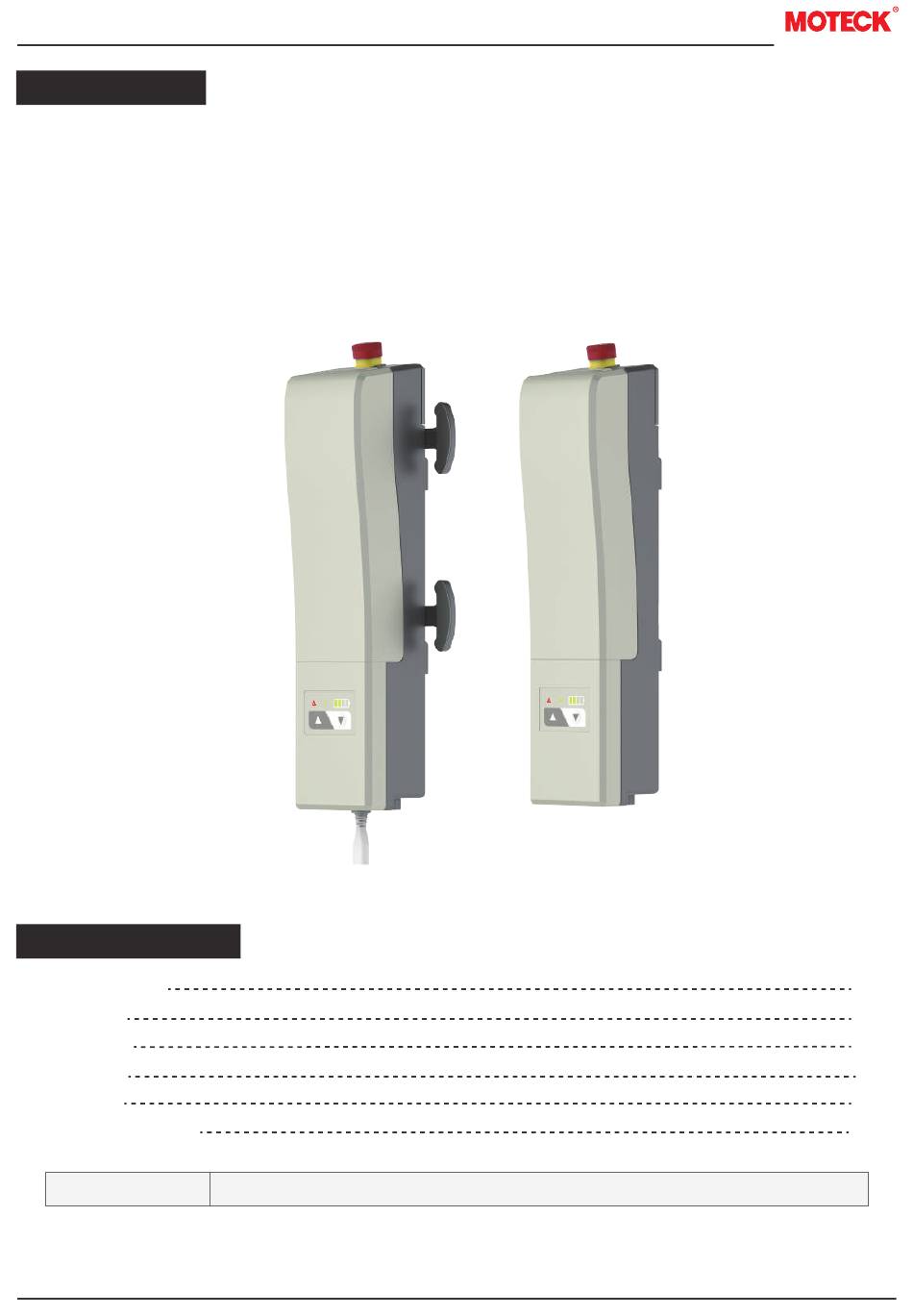

    User Guide Control Box CM43 Table of Contents I/O Introduction Part name Installation SET mode Operation Status and Disposal 2022.01_V1.0 Revision Technical changes may be made to improve the product without notice!
  • Page 2: I/O Introduction

    • The functions and parameters described in this user guide are based on the design of the CM43 standard version firmware. If it is a customized firmware, some content may be different. I/O Introduction...
  • Page 3: Part Name

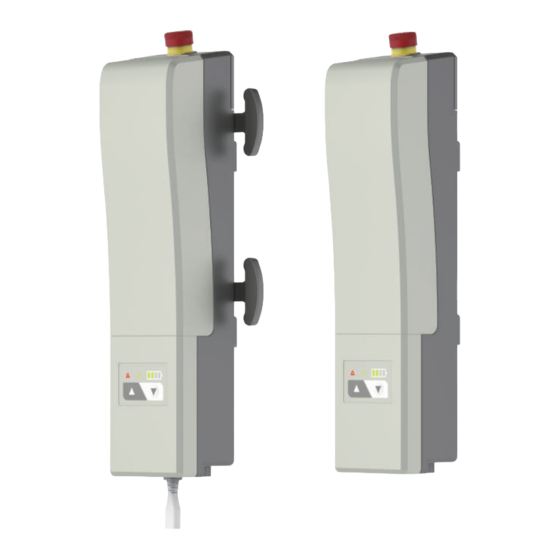

    Part name 1. CM43 Control Box With built-in charger Standard (Without built-in charger) 2. BT43 Battery Box 2.9Ah 5.0Ah 3. Mounting Bracket...
  • Page 4 5. Cable winding hooks 6. Screws (ISO M3x12 mechanical screw*1, M3x10 self-tapping screws*2) ● The included accessories will vary depending on the product options. Only CM43 with an internal charger comes with charging power cord, winding hooks, and M3x10 screws. Remarks...
  • Page 5: Installation

    Installation ● Preparation for Mounting Before installation, you must prepare two M6 screw holes with proper distance on the hoist to install the mounting bracket. Please make sure you have enough working space and proceed carefully. Please refer to the figure below for the hole distance of the mounting bracket.
  • Page 6 Installation of Cable winding hook 1. If it is a CM43 with a built-in charger, use the supplied M3x10 (2) tapping screws to lock the hook on the control box; For the model without internal charger, please skip this step and continue.
  • Page 7: Set Mode

    Notice ● Over-current for lifting actuator If the current consumption of the actuator exceeds the limit, CM43 will stop immediately. Therefore, in the SET mode, there are two methods to set the protection limit of the M1 actuator. Method 1: Self detect and learning 1.
  • Page 8: Operation

    3. Hold 2+ button, M2 actuator extends. Release the button to stop the movement. 4. Hold 2- button, M2 actuator retracts. Release the button to stop the movement. 5. When an actuator is operated under the normal situation, the LED indicator on CM43 (and battery level indication on HS12L) continuously lit green.
  • Page 9 - After connecting the charging power cord, the charging function will be automatically activated, and the battery indicator of CM43 will blinks red. If the CM43 is connected to HS12L or H2T at this time, the battery indicator of the hand control will also blinks.
  • Page 10 Press 1+, 1- buttons on handset in green 4 times. at the same time or spare control Soft Start keys on CM43 for 3 seconds in The LED indicator blinks order to switch on and off. in green twice. The LED indicator blinks in green twice, beep once.
  • Page 11: Status And Disposal
