User Guide

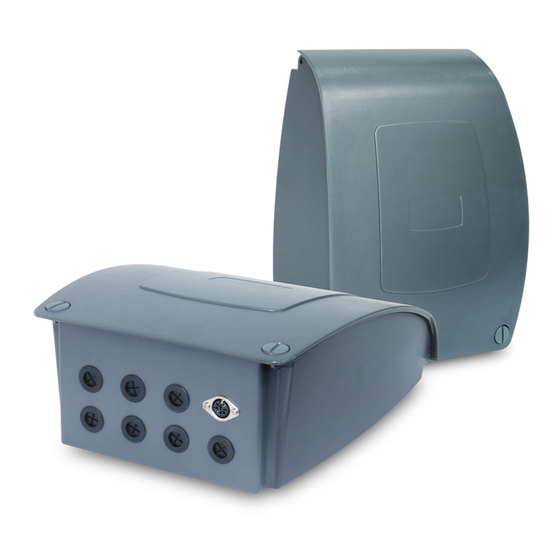

CIS3 Control Box

Specification

- Input voltage: 24V DC
- Output voltage: 24V DC
- Max. current: 10A per channel
- Max. number of actuators: 2 channels
- Synchronization for 2 actuators
- Overload protection (each actuator independently): 13A Max.
- Controlled by HM6R handset
- Work with potentiometer positioning feedback
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

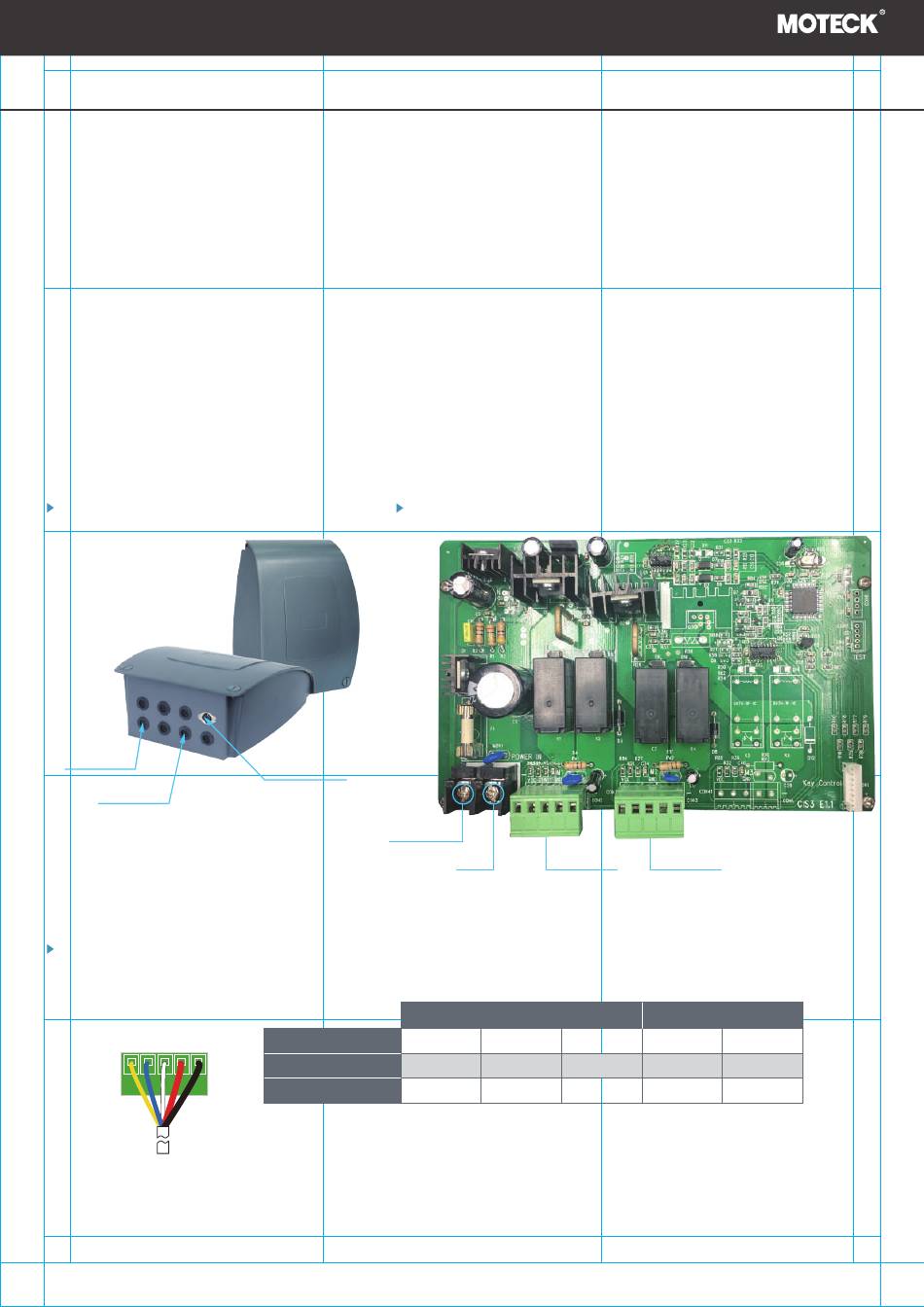

Connection Diagram

I/O introduction
Actuator 1
Actuator 2
Actuator
With potentiometer feedback (example of ID10 or ID10S actuators)
1 2 3 4 5
Remarks:
Wires color definition may be different from each actuator model; please refer to data sheet of each actuator for wires details.
PCBA
Hand control
24V DC IN
Pin
1
Definition
VCC
Wires color
Yellow
GND
Actuator 1
Signal
2
3
Data
GND
Blue
White
www.moteck.com
Actuator 2
Power
4
5
-
+
M
M
Red
Black
1
