Summary of Contents for MOTECK ID12

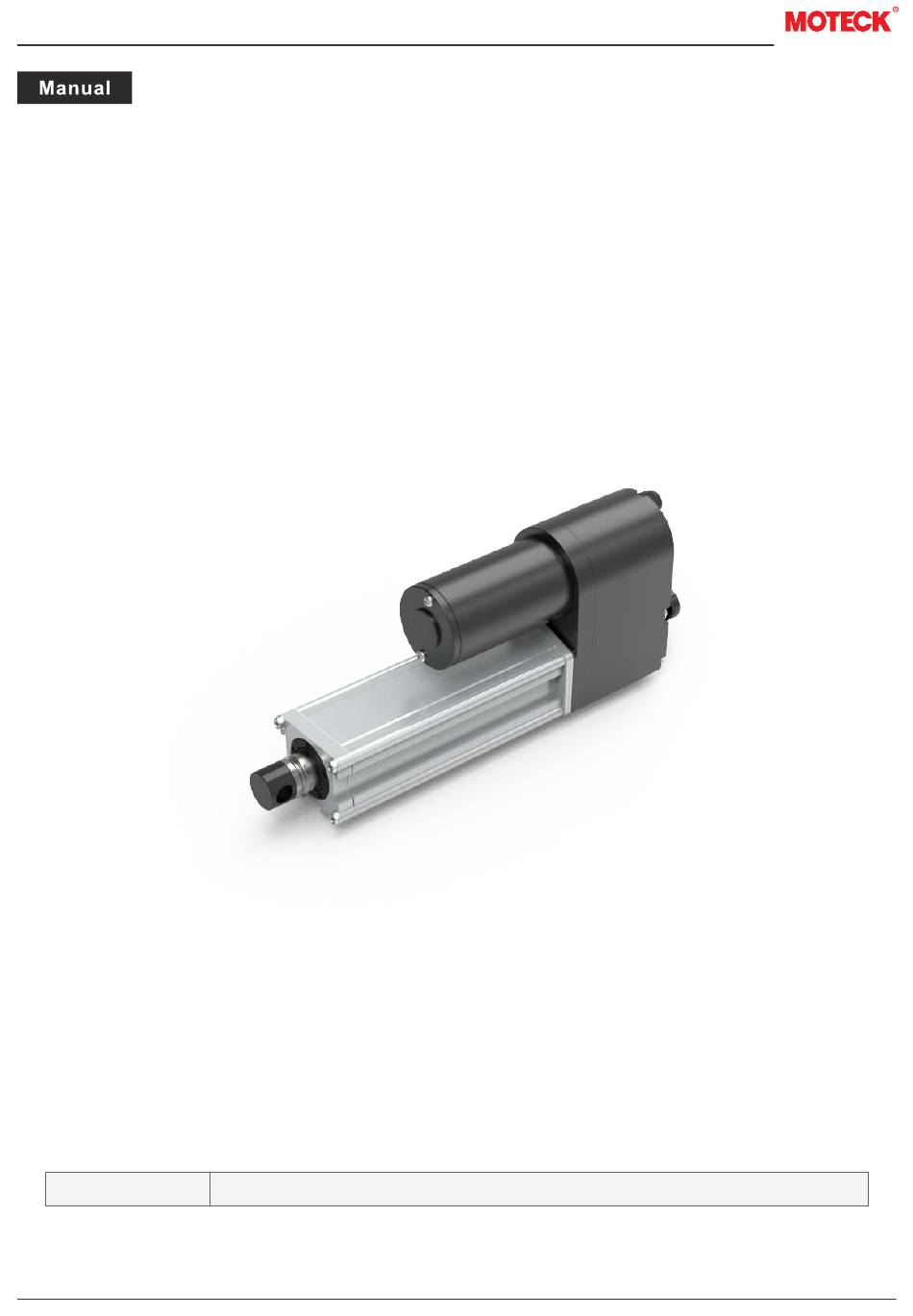

- Page 1 Actuator ID12 2023.08_V1.3 Revision Technical changes may be made to improve the product without notice！...
- Page 2 CAUTION ● Be sure there’s no side loading acts on the actuator. The load should act along the axis of the actuator since the off center loads may cause binding, excessive friction, reducing the actuator’s speed, lifespan and can also damage the internal components such as the drive nut, lead screw, transmission gears or motor.
- Page 3 Hexagon socket Plug WIRE CONNECTION For ID12 actuator, connection rule of power wires varies according to different types and gear ratio(s). Please follow the instructions below. (1) Basic (Without limit switch nor positioning feedback) ● Gear ratio: 5:1, 10:1, 20:1...
- Page 4 (2) With limit switches Wire color Definition Descriptions Power Connect red wire to “Vdc +” & black wire to “Vdc -“ of DC power to DC power wires extend the actuator. Switch the polarity of DC input to retract it.
- Page 5 Terms of Use The user is responsible for the suitability of MOTECK products, and the products listed on the MOTECK website are subject to change without notice. MOTECK reserves the right to terminate sales or delete any products displayed on the website or listed in its catalog.
