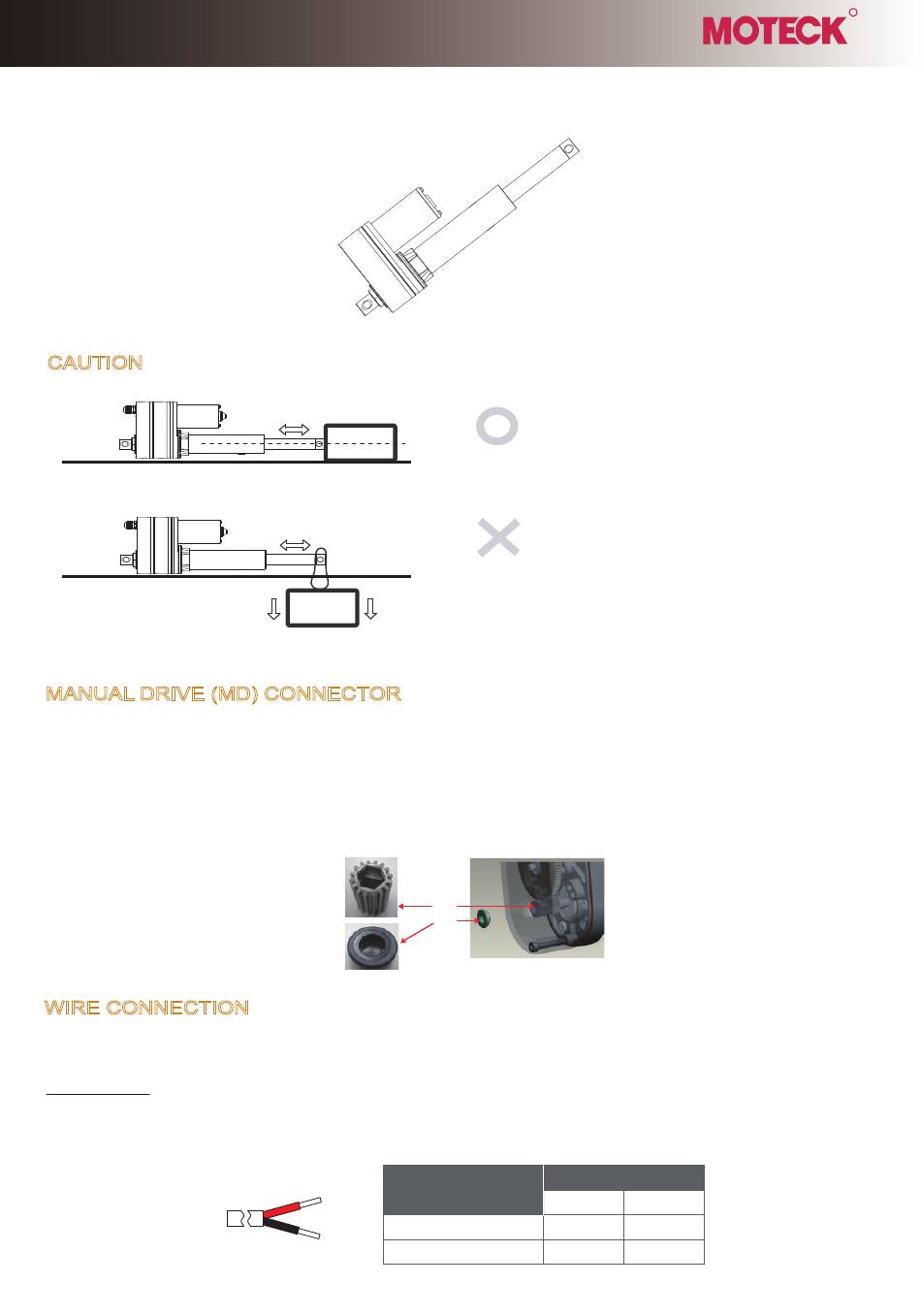

User Guide
Industrial Actuator
CAUTION
CAUTION

MANUAL DRIVE (MD) CONNECTOR

The MD (manual drive) is an alternative way to drive the motor directly, if the power is not available.
Step 1.
Remove the plug on the gearbox cover.
Step 2.
Use a 8.0mm hex bit or electric screwdriver (recommended) to drive the gear directly.
Step 3.
Insert the plug into the hole, and confirm the plug is installed properly.
The Max. drive torque is 6kg-cm with 4500N load.(Ball Screw)

WIRE CONNECTION

For ID10 actuators, connection rule of power wires varies according to different types and gear ratio(s).
Please follow the instructions below.
Standard Type
KG
Load
KG
Side Load
Please refer to the table below to define the actuator's extension. When Red (M+)
is connected to "+" and Black (M-) is connected to "-" of DC power, the actuator
will extend.
Model: ID10
The load should be centered on the operating direction.
Side load is NOT good for actuators.
Gear
Plug
Gear ratio
Red
5:1, 10:1, 20:1
M+
30:1, 40:1
M-
MOTORIZE OUR WORLD
Power
Black
M-
M+
R
