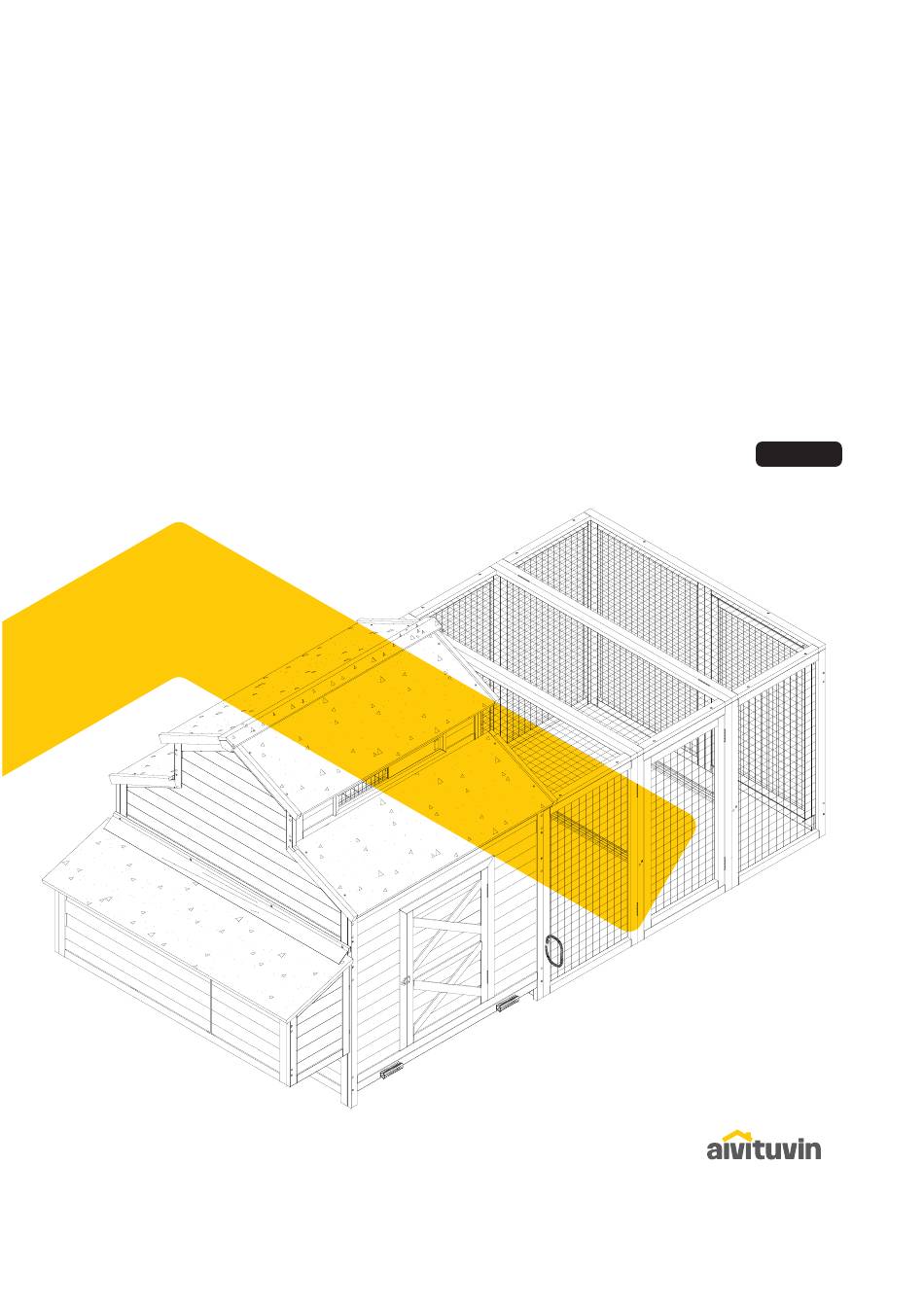

- Page 1 NSTRUCTION MANUAL AIR 49 www.aivituvin.com...
- Page 2 NOTICE Please retain these instructions for future Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
-
Page 3: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 60MIN. ASSEMBLY HARDWARE M6.0x55 mm BOLT M3.5x60 mm SCREW 4PCS+1 spare 22PCS+1 spare M3.5x40 mm SCREW M3.5x35 mm SCREW 28PCS+1 spare 38PCS+1 spare M3.5x25 mm SCREW M3.0x16 mm SCREW 8PCS+1 spare 12PCS+1 spare Metal Rod... -
Page 4: Product Assembly
PRODUCT ASSEMBLY Front Pen Front Coop Nest box... - Page 5 PARTS Front panel of coop Left panel of coop-down Back panel of coop Right panel of coop-down Ventilation panel Left/Right panel of coop-upper 2PCS 2PCS Bottom panel of nest box Right panel of nest box Left panel of nest box...
- Page 6 PARTS Front panel of nest box Slide out tray Perch 2PCS 2PCS Coop roof-L Coop roof-M Roof cap 2PCS 2PCS Perch Divider panel of nest box Roof panel of nest box 2PCS 2PCS...
- Page 7 PARTS Back panel of pen Front panel of pen Side panel of pen Top panel of pen PVC Waterproof Strip...
- Page 8 PRODUCT ASSEMBLY Attach Part C and F by 2xP2 , repeat on Part D and F. Attach Part A & B to the side of the coop panel by 16xP3.
- Page 9 PRODUCT ASSEMBLY Put in 2pcs of perch Part K and slide in 2pcs of tray Part J. Attach Part E to the side by 4xP3 on each.
- Page 10 PRODUCT ASSEMBLY Attach Part G1 & G2 to Part C by 2xP1 on each side. ① Attach Part I by 2xP4 on each side. ② Put in the bottom panel Part H and then insert the divider panel Part P to the bottom.
- Page 11 PRODUCT ASSEMBLY Attach Part Q by 6xP6. Attach P7 by 2xP6.
- Page 12 PRODUCT ASSEMBLY Attach Part R & S to the coop by 6xP2 on each side. Attach Part O to the pen panel by 2xP4 on each side.
- Page 13 PRODUCT ASSEMBLY ① Screw P8 to Part R by 4xP6. ② Screw Part T by 2xP2. ③ Attach Part T to Part R & S by 4xP3. Attach top panel of pen Part U by 14xP4.
- Page 14 PRODUCT ASSEMBLY Attach the roof Part L & M by 16xP4. ① Attach the roof cap Part N by 4xP5. ② Screw the 4xP2 accordingly.
- Page 15 PRODUCT ASSEMBLY Attach the Part V by 4 x p5 screws.
- Page 16 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this...
