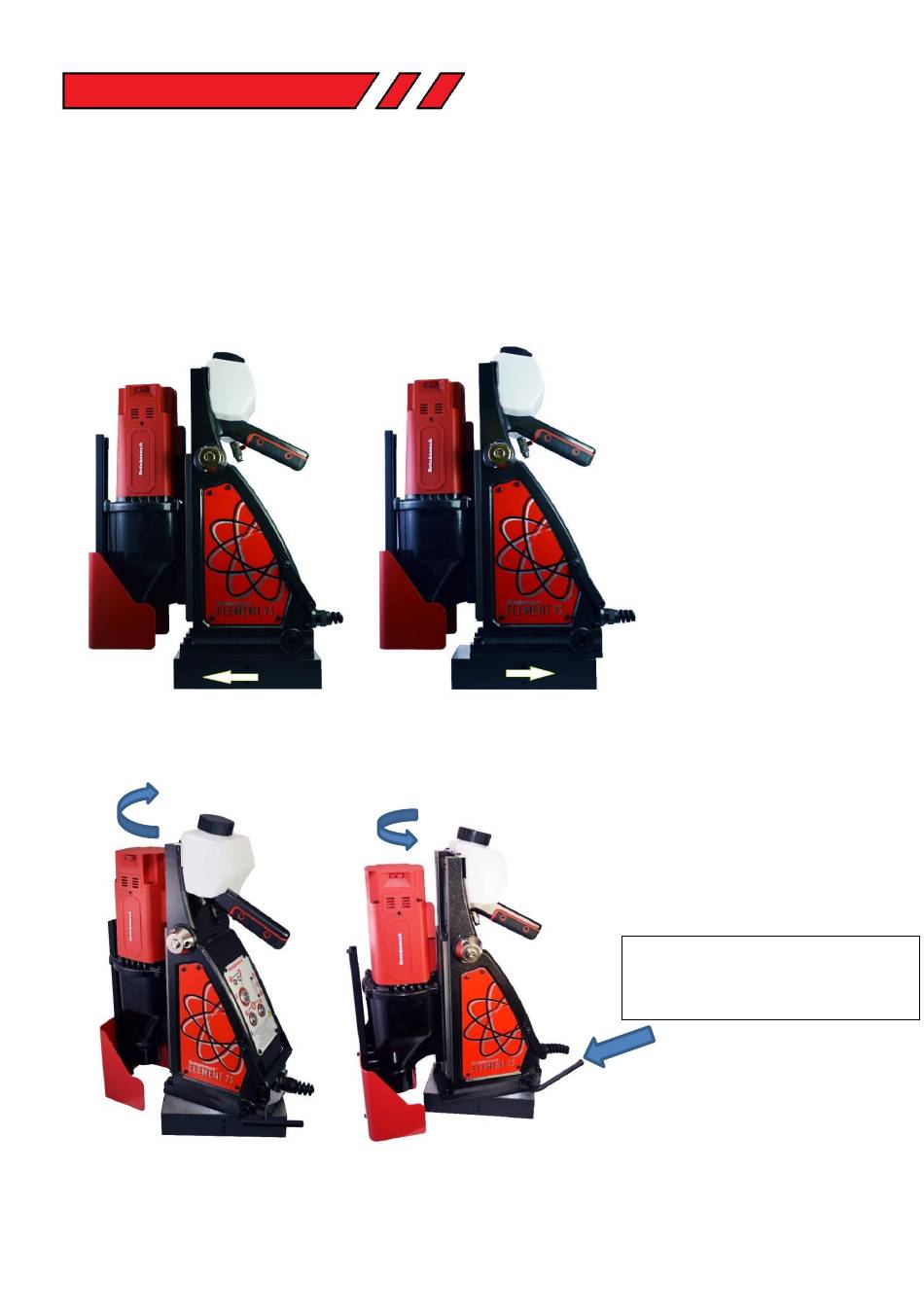

9) SWIVEL BASE FUNCTION
1. This machine is fitted with a swivel base facility that allows precise movement of the drilling unit
once the magnet has been energised.
2. By using RDD4153, 10mm Hexagonal spanner to release the drilling unit via eccentricity spindle
RDD4149 (counterclockwise), a 20mm forward and reverse function
0
displacement of 30 from the front centre
3. Once the desired position is achieved it is locked again by tightening eccentricity spindle using
RDD4153 (clockwise).
RDD4153 10mm Hexagonal
spanner inserted in RDD4159
eccentricity spindle: clockwise to
Original Instructions
(2) is achievable.
(1)
(2)
11
Jul 2020
(1) as well as an angular
RDD4153 10mm Hexagonal spanner
inserted in RDD4159 eccentricity spindle:
clockwise to tighten, and anti-clockwise to
loosen.
