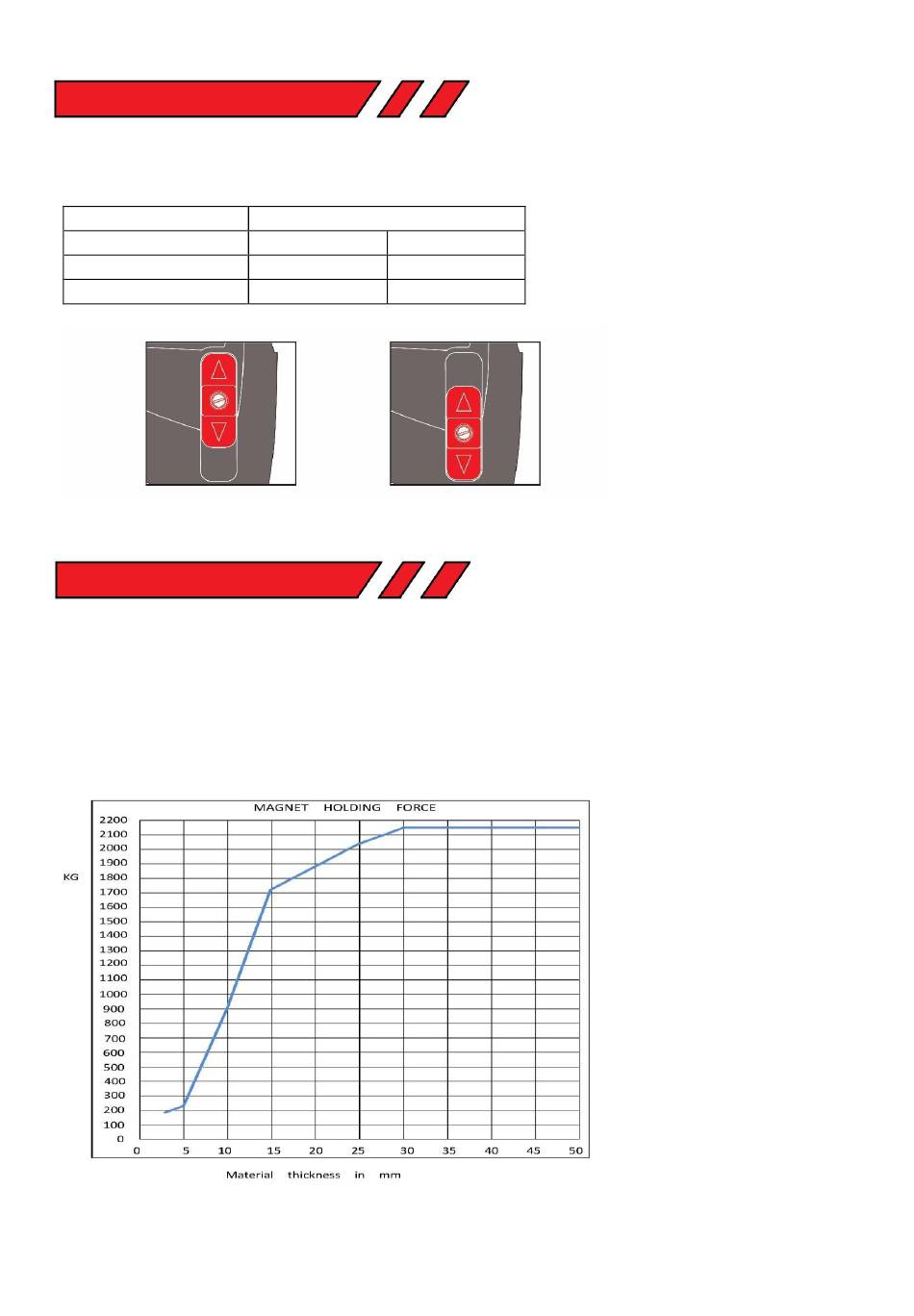

10)GEAR SELECTION

The Element 75 magnetic drill is fitted with a 2-speed gearbox. The gear is used to reduce the
output speed when using larger cutters.
Slide Selector Position
/\
\/
Slide Selector Positon Up

11) MAGNET DETECTION

It is advised that when working on thin material a packing piece should be used to increase the
material thickness under the magnet. Working on thin material without a packing piece will reduce
the magnet holding force.
It is advised that the drill is to be operated on ferrous material 12mm thick and above. Damage to
the magnet base, such as pitting, will affect the strength of the magnet holding force.
Original Instructions
Speed Controller Setting
Level 1 Level 6
200/min 500/min
70/min 180/min
Slide Selector Positon Down
