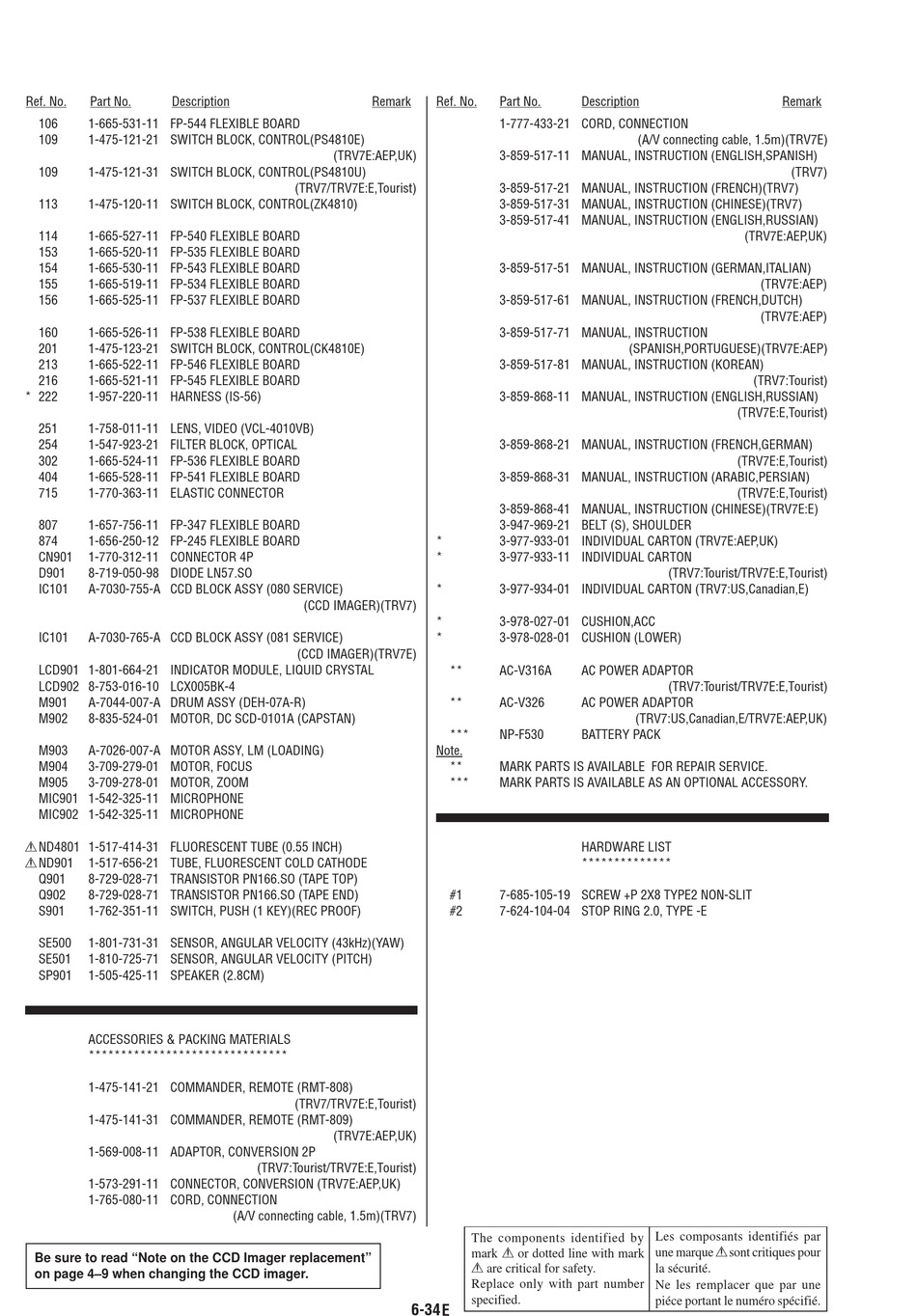

Hardware List - Sony DCR-TRV7 Service Manual

Ref. No. Part No. Description
106 1-665-531-11 FP-544 FLEXIBLE BOARD
109 1-475-121-21 SWITCH BLOCK, CONTROL(PS4810E)
109 1-475-121-31 SWITCH BLOCK, CONTROL(PS4810U)
113 1-475-120-11 SWITCH BLOCK, CONTROL(ZK4810)
114 1-665-527-11 FP-540 FLEXIBLE BOARD
153 1-665-520-11 FP-535 FLEXIBLE BOARD
154 1-665-530-11 FP-543 FLEXIBLE BOARD
155 1-665-519-11 FP-534 FLEXIBLE BOARD
156 1-665-525-11 FP-537 FLEXIBLE BOARD
160 1-665-526-11 FP-538 FLEXIBLE BOARD
201 1-475-123-21 SWITCH BLOCK, CONTROL(CK4810E)
213 1-665-522-11 FP-546 FLEXIBLE BOARD
216 1-665-521-11 FP-545 FLEXIBLE BOARD
* 222 1-957-220-11 HARNESS (IS-56)
251 1-758-011-11 LENS, VIDEO (VCL-4010VB)
254 1-547-923-21 FILTER BLOCK, OPTICAL
302 1-665-524-11 FP-536 FLEXIBLE BOARD
404 1-665-528-11 FP-541 FLEXIBLE BOARD
715 1-770-363-11 ELASTIC CONNECTOR
807 1-657-756-11 FP-347 FLEXIBLE BOARD
874 1-656-250-12 FP-245 FLEXIBLE BOARD
CN901 1-770-312-11 CONNECTOR 4P
D901 8-719-050-98 DIODE LN57.SO
IC101 A-7030-755-A CCD BLOCK ASSY (080 SERVICE)
IC101 A-7030-765-A CCD BLOCK ASSY (081 SERVICE)
LCD901 1-801-664-21 INDICATOR MODULE, LIQUID CRYSTAL
LCD902 8-753-016-10 LCX005BK-4
M901 A-7044-007-A DRUM ASSY (DEH-07A-R)
M902 8-835-524-01 MOTOR, DC SCD-0101A (CAPSTAN)
M903 A-7026-007-A MOTOR ASSY, LM (LOADING)
M904 3-709-279-01 MOTOR, FOCUS
M905 3-709-278-01 MOTOR, ZOOM
MIC901 1-542-325-11 MICROPHONE
MIC902 1-542-325-11 MICROPHONE
! ND4801 1-517-414-31 FLUORESCENT TUBE (0.55 INCH)
! ND901 1-517-656-21 TUBE, FLUORESCENT COLD CATHODE
Q901 8-729-028-71 TRANSISTOR PN166.SO (TAPE TOP)
Q902 8-729-028-71 TRANSISTOR PN166.SO (TAPE END)
S901 1-762-351-11 SWITCH, PUSH (1 KEY)(REC PROOF)
SE500 1-801-731-31 SENSOR, ANGULAR VELOCITY (43kHz)(YAW)
SE501 1-810-725-71 SENSOR, ANGULAR VELOCITY (PITCH)
SP901 1-505-425-11 SPEAKER (2.8CM)
ACCESSORIES & PACKING MATERIALS
*******************************
1-475-141-21 COMMANDER, REMOTE (RMT-808)
1-475-141-31 COMMANDER, REMOTE (RMT-809)
1-569-008-11 ADAPTOR, CONVERSION 2P
1-573-291-11 CONNECTOR, CONVERSION (TRV7E:AEP,UK)
1-765-080-11 CORD, CONNECTION
Be sure to read "Note on the CCD Imager replacement"
on page 4–9 when changing the CCD imager.
Remark
(TRV7E:AEP,UK)
(TRV7/TRV7E:E,Tourist)
(CCD IMAGER)(TRV7)
(CCD IMAGER)(TRV7E)
(TRV7/TRV7E:E,Tourist)
(TRV7E:AEP,UK)
(TRV7:Tourist/TRV7E:E,Tourist)
(A/V connecting cable, 1.5m)(TRV7)
Ref. No. Part No. Description
1-777-433-21 CORD, CONNECTION
3-859-517-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
3-859-517-21 MANUAL, INSTRUCTION (FRENCH)(TRV7)
3-859-517-31 MANUAL, INSTRUCTION (CHINESE)(TRV7)
3-859-517-41 MANUAL, INSTRUCTION (ENGLISH,RUSSIAN)
3-859-517-51 MANUAL, INSTRUCTION (GERMAN,ITALIAN)
3-859-517-61 MANUAL, INSTRUCTION (FRENCH,DUTCH)
3-859-517-71 MANUAL, INSTRUCTION
3-859-517-81 MANUAL, INSTRUCTION (KOREAN)
3-859-868-11 MANUAL, INSTRUCTION (ENGLISH,RUSSIAN)
3-859-868-21 MANUAL, INSTRUCTION (FRENCH,GERMAN)
3-859-868-31 MANUAL, INSTRUCTION (ARABIC,PERSIAN)
3-859-868-41 MANUAL, INSTRUCTION (CHINESE)(TRV7E:E)
3-947-969-21 BELT (S), SHOULDER
* 3-977-933-01 INDIVIDUAL CARTON (TRV7E:AEP,UK)
* 3-977-933-11 INDIVIDUAL CARTON
* 3-977-934-01 INDIVIDUAL CARTON (TRV7:US,Canadian,E)
* 3-978-027-01 CUSHION,ACC
* 3-978-028-01 CUSHION (LOWER)
** AC-V316A AC POWER ADAPTOR
** AC-V326 AC POWER ADAPTOR
*** NP-F530 BATTERY PACK
Note.
** MARK PARTS IS AVAILABLE FOR REPAIR SERVICE.
*** MARK PARTS IS AVAILABLE AS AN OPTIONAL ACCESSORY.

HARDWARE LIST

**************
#1 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#2 7-624-104-04 STOP RING 2.0, TYPE -E
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
6-34
E
Remark
(A/V connecting cable, 1.5m)(TRV7E)
(TRV7)
(TRV7E:AEP,UK)
(TRV7E:AEP)
(TRV7E:AEP)
(SPANISH,PORTUGUESE)(TRV7E:AEP)
(TRV7:Tourist)
(TRV7E:E,Tourist)
(TRV7E:E,Tourist)
(TRV7E:E,Tourist)
(TRV7:Tourist/TRV7E:E,Tourist)
(TRV7:Tourist/TRV7E:E,Tourist)
(TRV7:US,Canadian,E/TRV7E:AEP,UK)
