6-1. EXPLODED VIEWS

NOTE:
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

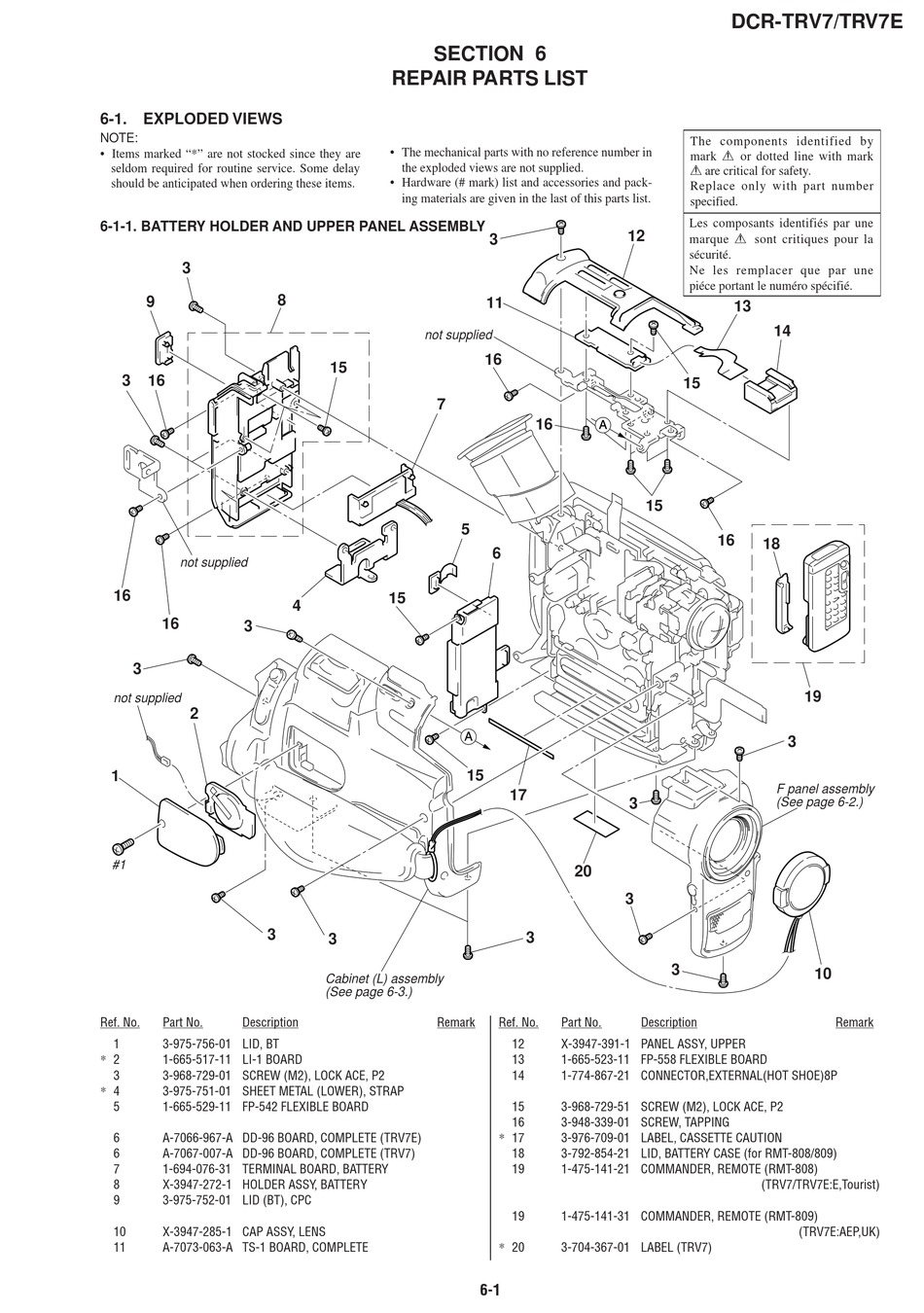

6-1-1. BATTERY HOLDER AND UPPER PANEL ASSEMBLY

3
9
3 16
not supplied
16
16
3
3
not supplied
2
1
#1
3
Ref. No. Part No. Description
1 3-975-756-01 LID, BT
* 2 1-665-517-11 LI-1 BOARD
3 3-968-729-01 SCREW (M2), LOCK ACE, P2
* 4 3-975-751-01 SHEET METAL (LOWER), STRAP
5 1-665-529-11 FP-542 FLEXIBLE BOARD
6 A-7066-967-A DD-96 BOARD, COMPLETE (TRV7E)
6 A-7067-007-A DD-96 BOARD, COMPLETE (TRV7)
7 1-694-076-31 TERMINAL BOARD, BATTERY
8 X-3947-272-1 HOLDER ASSY, BATTERY
9 3-975-752-01 LID (BT), CPC
10 X-3947-285-1 CAP ASSY, LENS
11 A-7073-063-A TS-1 BOARD, COMPLETE
SECTION 6

REPAIR PARTS LIST

• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
8
not supplied
15
7
15
4
3
Cabinet (L) assembly
(See page 6-3.)
Remark
12
3
11
16
16
5
6
15
17
3
20
3
3
Ref. No. Part No.
12 X-3947-391-1 PANEL ASSY, UPPER
13 1-665-523-11 FP-558 FLEXIBLE BOARD
14 1-774-867-21 CONNECTOR,EXTERNAL(HOT SHOE)8P
15 3-968-729-51 SCREW (M2), LOCK ACE, P2
16 3-948-339-01 SCREW, TAPPING
* 17 3-976-709-01 LABEL, CASSETTE CAUTION
18 3-792-854-21 LID, BATTERY CASE (for RMT-808/809)
19 1-475-141-21 COMMANDER, REMOTE (RMT-808)
19 1-475-141-31 COMMANDER, REMOTE (RMT-809)
* 20 3-704-367-01 LABEL (TRV7)
6-1
DCR-TRV7/TRV7E
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
13
14
15
15
16
18
19
3
F panel assembly
(See page 6-2.)
3
Description
(TRV7/TRV7E:E,Tourist)
(TRV7E:AEP,UK)
10
Remark
