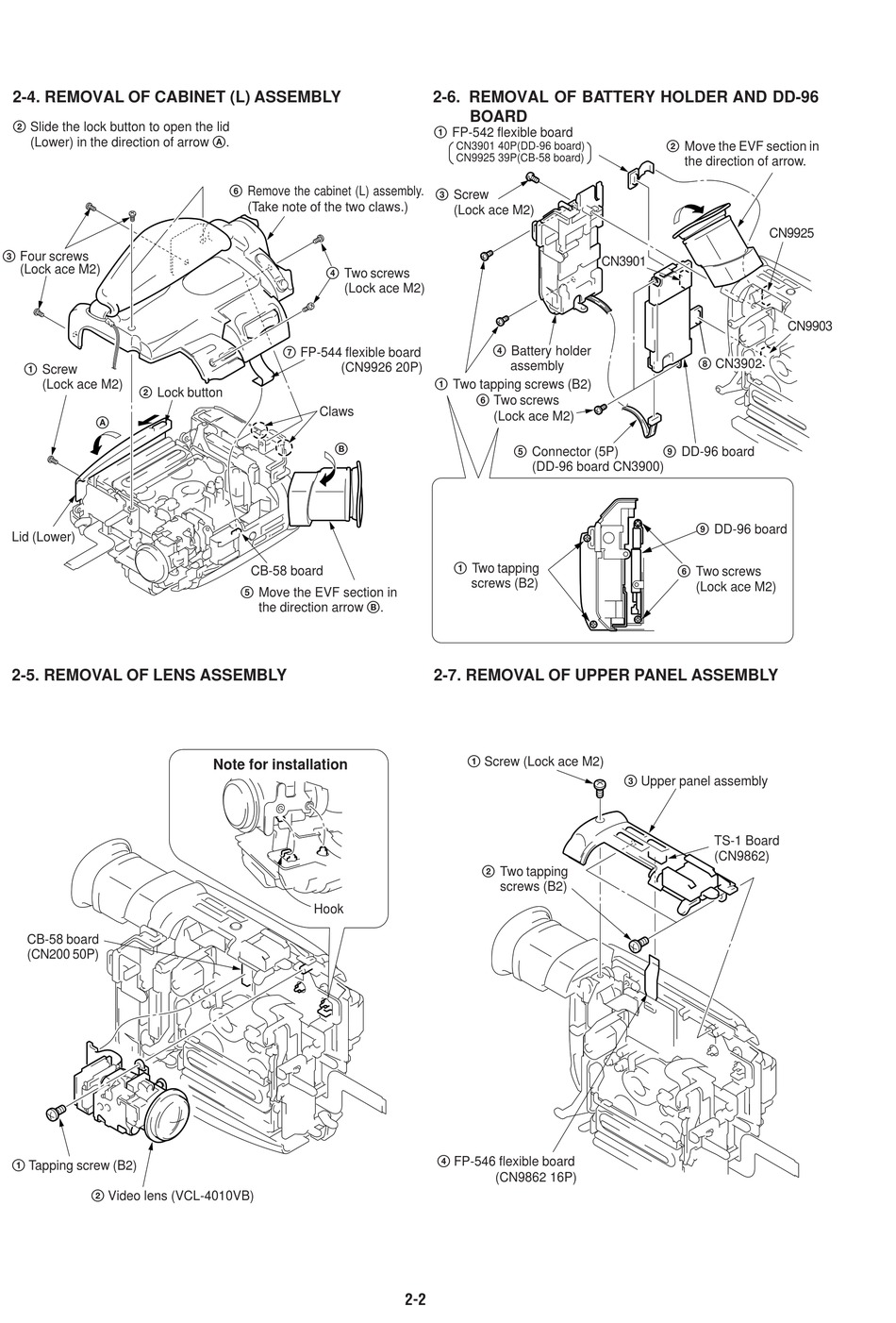

2-4. REMOVAL OF CABINET (L) ASSEMBLY

2 Slide the lock button to open the lid
(Lower) in the direction of arrow A.
3 Four screws
(Lock ace M2)
1 Screw
(Lock ace M2)
2 Lock button
A
Lid (Lower)

2-5. REMOVAL OF LENS ASSEMBLY

CB-58 board
(CN200 50P)
1 Tapping screw (B2)
2 Video lens (VCL-4010VB)
6 Remove the cabinet (L) assembly.
(Take note of the two claws.)
4 Two screws
(Lock ace M2)
7 FP-544 flexible board
(CN9926 20P)
Claws
B
CB-58 board
5 Move the EVF section in
the direction arrow B.
Note for installation
Hook
2-6. REMOVAL OF BATTERY HOLDER AND DD-96
BOARD
1 FP-542 flexible board
CN3901 40P(DD-96 board)
CN9925 39P(CB-58 board)
3 Screw
(Lock ace M2)
4 Battery holder
assembly
1 Two tapping screws (B2)
6 Two screws
(Lock ace M2)
5 Connector (5P)
(DD-96 board CN3900)
1 Two tapping
screws (B2)

2-7. REMOVAL OF UPPER PANEL ASSEMBLY

1 Screw (Lock ace M2)
2 Two tapping
screws (B2)
4 FP-546 flexible board
(CN9862 16P)
2-2
2 Move the EVF section in
the direction of arrow.
CN9925
CN3901
8 CN3902
9 DD-96 board
9 DD-96 board
6 Two screws
(Lock ace M2)
3 Upper panel assembly
TS-1 Board
(CN9862)
CN9903
