SERVICE MANUAL
Ver 1.0 2002. 03
Revision History
Revision History
M2000 MECHANISM
Link
Link
SPECIFICATIONS
SPECIFICATIONS
SERVICE NOTE
SERVICE NOTE
DISASSEMBLY
DISASSEMBLY
• For INSTRUCTION MANUAL, refer to separate file (992993871.pdf).
• For MECHANISM ADJUSTMENTS, refer to the "8mm Video MECHANICAL ADJUSTMENT MANUAL IX
M2000 MECHANISM " (9-929-861-11).
• The DCR-TRV740E uses two types of 2.5 inch LCD. For identification of the 2.5 inch LCD, see "SECTION 5.
1-5-1. LCD Type Check".
• The DCR-TRV840 uses two types of the type SO or type CA LCD. For identification of the type SO or type CA
LCD, see "SECTION 5. 1-5-1. LCD Type Check".
On the VC-278 board
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the VC-278 board.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the VC-278
board are not shown.
The following pages are not shown.
Schematic diagram ............................. Pages 4-23 to 4-72
Printed wiring board ............................ Pages 4-87 to 4-90
Waveforms ........................................... Pages 4-93 to 4-95
DCR-TRV738E/TRV740/

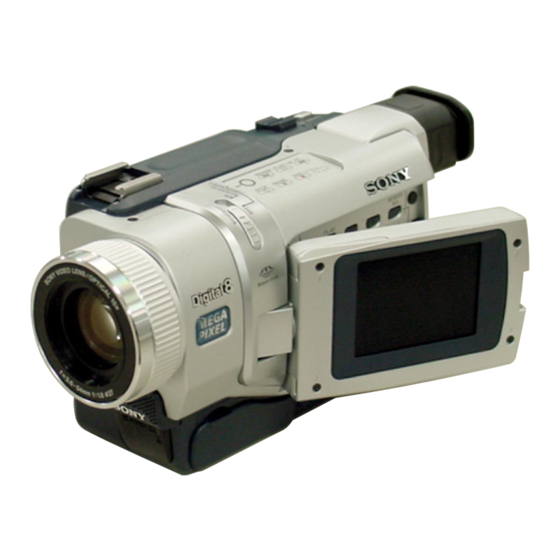

Photo : DCR-TRV740E
BLOCK DIAGRAMS
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Mounted parts location ............................. Pages 4-97 to 4-98
Electrical parts list ................................... Pages 6-17 to 6-25
DIGITAL VIDEO CAMERA RECORDER
TRV740E/TRV840
Canadian Model
Australian Model
Hong Kong Model
Chinese Model
East European Model
North European Model
Russian Model
DCR-TRV740/TRV740E/TRV840
Tourist Model
Argentina Model
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
ADJUSTMENTS
ADJUSTMENTS
REPAIR PARTS LIST
REPAIR PARTS LIST
RMT-814
2
LEVEL
US Model
DCR-TRV740/TRV840
AEP Model
DCR-TRV738E/TRV740E
DCR-TRV740E
E Model
Korea Model
DCR-TRV740
DCR-TRV740/TRV740E
DCR-TRV840
