FLIR DBV54TL Quick Start Manual

Contents
1 x Weatherproof IR Dome
Camera with Varifocal Lens
1 x Allen Key
4 x Mounting Screws
4 x Drywall Anchors
2 x Rubber Weatherproofing Plugs
WARNING - A REGULATED UL / CSA APPROVED 12V DC power
supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
Features
• 700 TVL Resolution, 1/3" 960H Image Sensor
• True Day / Night with Mechanical ICR
• 2.8-12mm Varifocal Lens
• Cold Climate Capability (Operates to -22°F/ -30°C)
• 90ft (27m) IR Night Vision*
• IP66 Weatherproof Rating**
• 3 Axis Design for Wall / Ceiling Mount
• External Zoom / Focus Adjustment
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application
** Not intended for submersion in water. Installation in a sheltered
area is recommended.
Safety Precautions
• Use an appropriate low voltage power cable to prevent fire or
electrical shock.
• Make sure to install the camera in an area that can support
the camera weight.
• There are no user serviceable parts inside the camera. Please
do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning material.
Please use a soft cloth to clean the lens cover.
IT'S ALL ON THE WEB!
Product Information Specification Sheets
Quick Start Guides
User Manuals
Latest News Video Tutorials & Demos
VISIT
www.flirsecurity.com/pro
FLIR Systems, Inc.
Copyright © 2014
As our products are subject to continuous improvement, FLIR Systems,
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE

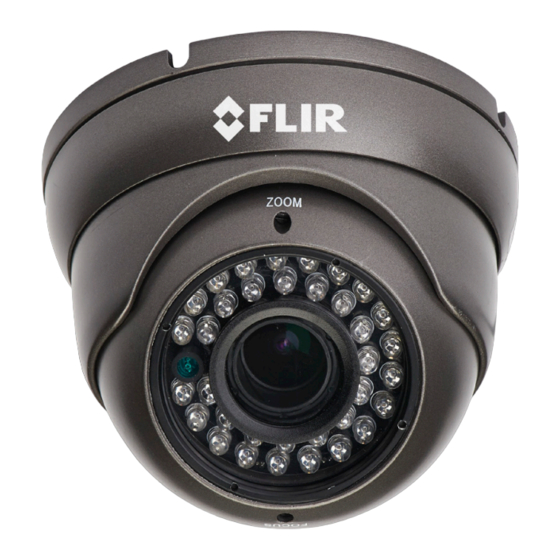

700TVL VARIFOCAL
OUTDOOR IR DOME CAMERA
MODEL: DBV54TL
QUICK START GUIDE
English Version 1.0
