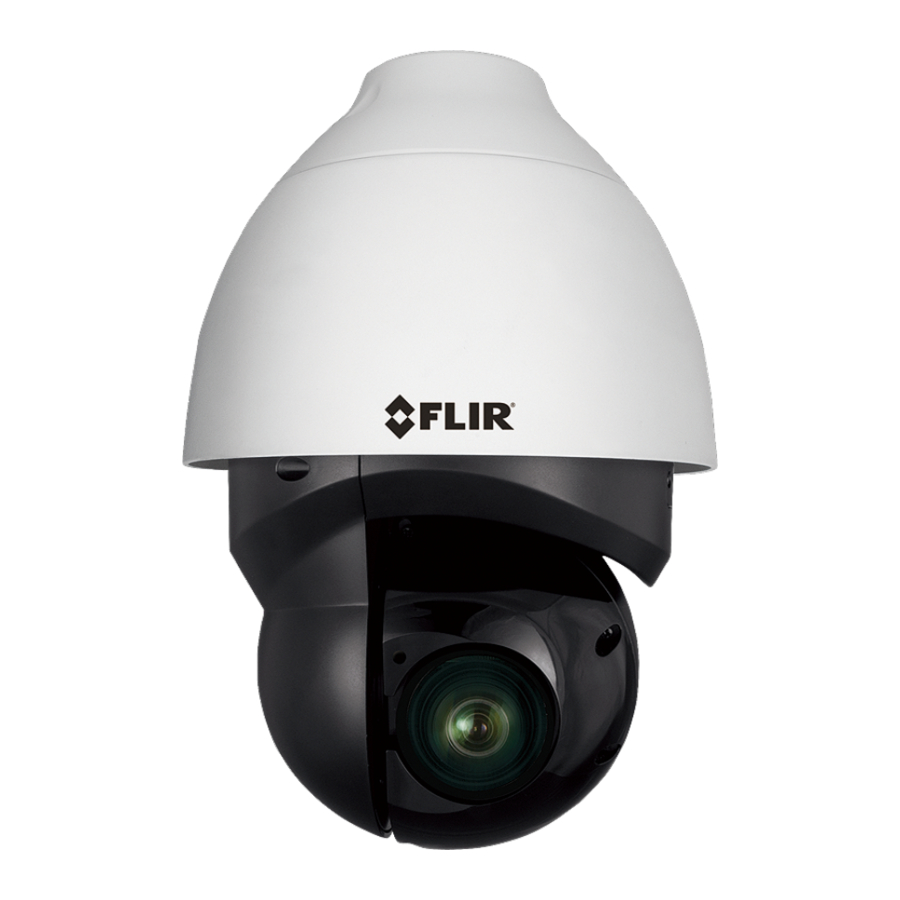

FLIR Quasar Gen III CP-6302-31-I - Indoor/Outdoor IP Camera Quick Install

Connect the Unit

1. If using a 12VDC power supply, connect its wires to the two-pin power connector.
2. Attach a Cat 5e or Cat 6 cable from the network switch to the RJ45 connector for a 10/100/1000 Mbps Ethernet and PoE+ connection. Verify that there are steady green and flashing yellow LEDs.
3. If using a 24VAC power supply or a heater, connect its wires to the three-pin power connector.
4. To reset factory defaults at any time, press the Default button for at least 20 seconds.
5. Attach wires from external devices to the 14-pin terminal block connector for alarm and audio in/out.
6. Attach a coax cable to the BNC connector for the video output to a DVR.
7. Remove the SD card slot cover with a Phillips screwdriver. Insert a microSDXC card (not supplied) in the slot to store video clips and snapshots.

Discover the Camera

The camera's web interface can be accessed by Internet Explorer 10 and higher (32-bit) with the ActiveX plug-in on PCs running 64-bit Windows 7, 8, 8.1, or 10.

Configuring the camera on your workstation for the first time

1. Install the CD in the product package or download FLIR's Discovery Network Assistant (DNA) utility from the Support > FLIR Firmware & Software Downloads page at http://www.flir.com/security.
2. Click the DNA icon and run DNA version 2.1.3.15 or above to log into the unit.
3. Attach the unit to the same LAN segment as the computer that is managing the unit. DNA automatically discovers the unit on the network and displays the device's current IP address in the Discover List.
4. Select the unit from the Discover List.
5. From the context menu, or from the Properties > Device Properties screen, select the unit, select PAL or NTSC, click Change Video Format.
6. Click Update.

Managing the camera with Horizon, Meridian or on a DHCP-enabled network

If the camera is managed by Horizon configured as a DHCP server, or is on a network with a DHCP server, the camera automatically receives an IP address. The unit's default IP address is 192.168.0.250.

1. Open DNA. The unit is automatically discovered on the network. See section Configuring the camera on your workstation for the first time for instructions how to install DNA.
2. Verify that the unit is displayed in the Discover List. The unit status should be displayed as Online and Authenticated.

Managing the camera with Latitude or on a network with static IP configuration

If the camera is managed by Latitude or is on a network without a DHCP server, manually enter its IP address in DNA.

1. Open DNA. The unit is automatically discovered. See section Configuring the camera on your workstation for the first time.
2. If you use non-default credentials:
   1. Use DNA to select the unit(s).
   2. Right-click or click the Login button.
   3. Enter the camera's User Name ("Admin") and Password("1234").
   4. Click Login.
3. In the DNA Assign IP screen, uncheck Use DHCP, and enter the unit's IP, Mask and Gateway IP addresses. If the camera is not authenticated, you must first authenticate it.
4. Click Update.

Log into the Unit

1. Click the unit in DNA's Discover List. The Login window opens.
2. Enter the default User Name ("Admin") and Password ("1234"), which are case-sensitive. Then click OK.
3. Click Login in DNA. The unit's web interface opens.
4. Click the message to install the ActiveX plug-in.
5. Follow the on-screen instructions to install the plug-in.

Install the ActiveX Plug-in

1. Ensure that ActiveX controls can be downloaded by (a) changing the ActiveX controls andplug-in settings or (b) setting the Internet security level to default. For further details, refer to the camera's User and Installation Guide.
   To set ActiveX controls and plug-in settings:
   1. Start Internet Explorer.
   2. Select Tools > Internet Options from the main menu of the browser.
   3. Select the Security tab and click Internet.
   4. Click Custom level to change ActiveX settings.
   5. Set all ActiveX controls and plug-ins settings to Prompt or Enable.
      To set the Internet Security Level:
   6. Start Internet Explorer.
   7. Select Tools > Internet Options from the main menu of the browser.
   8. Select the Security tab and click Internet.
   9. Click Default level.
   10. Click OK.
   11. Close and reopen the browser window.
2. After the request to install the ActiveX control file (install.cab) appears on the screen, click Yes.
3. After installing the plug-in, in the pop-up security warning that opens, click Install to start downloading the Quasar Player software onto the PC.
4. Click Finish when the Quasar Player installation is completed.

Insert and Configure microSD Card

A microSDXC card (not supplied) must be inserted inside the camera housing in order to locally store a snapshot or recording triggered by an event. To install the card:

1. Insert a microSDXC card (up to 128GB, Class 10) in the card drive.
2. Verify that the card status is displayed as SD Card Available in the System > Edge Recording > SD Card screen.
3. Format the card.
4. Configure the camera to store snapshots and recordings from the System > Events Setup screens.

Mount the Camera

1. Verify that the operating temperature range is between -40°C ~ 50°C (-40° ~ 122°F), 0-90% relative humidity (non-condensing).
2. Be sure to have the required accessories and tools available.
3. Refer to the User and Installation Guide for mounting instructions.

Open Live View

1. Select the Live tab.
2. Click the red recording icon to start recording.


Attach in Latitude

1. In Latitude, click Physical View on the sidebar.
2. On the Navigation Tree, click the system name.
3. From the Discovery tab, do the following:
   1. Under Cameras and Encoders, select DVTel Quasar Gen II (Latitude 7) or FLIR (Latitude 8).
   2. Click Start. The camera details are displayed in the Discovery table.
   3. If the camera was not discovered, click Discover Unit Manually.
   4. Enter the camera's IP address, select DVTel Quasar Gen II(Latitude 7) or FLIR and Auto Detect (Latitude 8).
   5. Click OK.
4. In the Discovery table, right-click the camera.
5. Click Attach.
6. Click the Archiver name to attach.
7. Click Save.
