Model No. SAE-P48

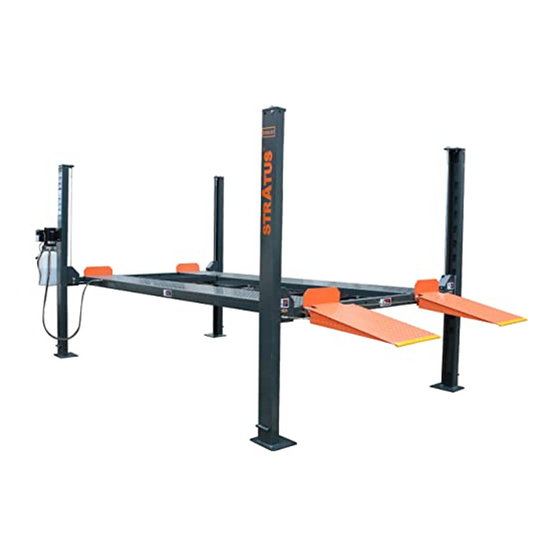

4 post Parking Lift
Single Point Manual Release
Lifting Capacity 8,000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stratus SAE-P48
Summary of Contents for Stratus SAE-P48
- Page 1 Model No. SAE-P48 Installation & Operation & Maintenance Instructions 4 post Parking Lift Single Point Manual Release Lifting Capacity 8,000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
-
Page 2: Table Of Contents
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions TABLE OF CONTENTS 1. Packing, transport and storage ............................5 1.1 Packing ....................................5 1.2 Transport ................................... 5 1.3 Storage ....................................5 2. Description of the machine ............................... 6 3. - Page 3 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 8. Troubleshooting ................................. 26 9. Parts list ....................................27 9.1 Explode drawing and parts list ............................. 27 9.2 Transverse beam and parts list ........................... 29 9.3 Power-side runway and parts list ..........................31 9.4 Hydraulic line and parts list ............................
- Page 4 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Foreword Notes on the operating instructions The present ORIGINAL OPERATING INSTRUCTIONS are designed to provide sufficient instruction for the safe operation of the product. The information is provided clearly and concisely. The chapters are arranged by letter and the pages are numbered continuously.
-
Page 5: Packing, Transport And Storage
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 1. Packing, transport and storage All packing, lifting, handling, transport and unpacking operations are to be performed exclusively by expert personnel with knowledge of the lift and the contents of this manual. -
Page 6: Description Of The Machine
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 2. Description of the machine The lift is suitable for lifting motor vehicles having maximum weight as described in the nameplate on the power side column of the lift. The electro hydraulic operation is described in detail in chapter 8. -
Page 7: Technical Specifications
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 3. Technical specifications CAPACITY 8,000 lbs (3,600kg) Max. lifting height with no pad extension 86 15/16” (2209mm) 4 15/16” (125mm) Min. adaptor height Overall height 96 1/16” (2440mm) Overall width 113 3/4”... - Page 8 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Fig.5 Layout Fig. 3...
-
Page 9: Safety
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 4. Safety Read this chapter carefully and completely because it contains important information for the safety of the operator and the person in charge of maintenance. The lift has been designed and built for lifting vehicles and making them stand above level in a closed area, any other use is forbidden. -
Page 10: Slipping Risks
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Fig. 5 4.5 Slipping risks The risk of slipping can be caused by oil or dirt on the floor near the lift. Keep the area under and around the lift clean. Remove all oil spills. -
Page 11: Installation
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5. Installation Only skilled technicians, appointed by the manufacturer, or by authorized dealers, must be allowed to carry out installation. Serious damage to people and to the lift can be caused if installations are made by unskilled personnel. -
Page 12: Checking For Room Suitability
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.2 Checking for room suitability The lift has been designed to be used in covered and sheltered places free of overhead obstructions. The place of installation must not be next to washing areas, painting workbenches, solvent or varnish deposits. The installation near to rooms, where a dangerous situation of explosion can occur, is strictly forbidden. -
Page 13: Connect The Platforms And Beams
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.6 Connect the platforms and beams • Place the two columns face to face with a distance of 102 15/16” and then push in the crossbeam from the top of the posts. -
Page 14: Mount On The Top Post Plate And Fix Safety Ratchets
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.7 Mount on the top post plate and fix safety ratchets • Fix ratchet with the top post plate with M20 hex nut and flat washer. Ensue the four safety ratchets are of the same height from the ground, this could be checked by measuring the distance of the lowest square hole reserved on the ratchet and the floor. - Page 15 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 2. Lift the platform with proper lifting equipment and place it onto the crossbeams. Fix the lifting platform and the crossbeam with M12*25 hex socket flat head screw. ① Hex socket flat head screw M12*25...
-
Page 16: Fix Transfer Bar
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 3. Fix the installation plate for drive-on ramps Fig. 14 ① Installation plate for drive-on ramp ② M16*25 hex head screw ③ Flat washer 5.9 Fix transfer bar Insert the two section of the transfer bar respectively to the swing shaft assemblies in both crossbeams. Connect the two sections into a whole with screws. -
Page 17: Routing Steel Cable
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.10 Routing steel cable Each cable must be routed through the column hole toward to the lift center. The lift cannot work properly and thus damage the cable if failure to do so. -
Page 18: Connection Of Hydraulic Hoses
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.12 Connection of hydraulic hoses When routing the hydraulic hose, make sure that the hose is clear of any moving part, make sure to keep the hose and fittings clean from dust. -
Page 19: Make Electrical Hookup To Power Unit
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Fig. 19 Item Description Item Description Latch release rod B Knob M10X33 Latch release rod A Nut M12 Nut M8 – left handed Coupler Spacer Nut M8 Long stud... -
Page 20: Oil Filling And Bleeding
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.15 Oil filling and bleeding DO NOT run power unit without oil. Damage to pump can occur. If motor gets hot or sounds peculiar, stop immediately and recheck the electric connection. -
Page 21: Locking Position Adjustment
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.16.2 Locking position adjustment All latches must be engaging uniformly before any attempt is made to work on or near the vehicle. • Raise the lift from bottom to top and verify if 12 locking latch clicks can be heard;... -
Page 22: Check Before Start-Up
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 5.18 Check before start-up During START UP procedure, observe all operating components and check for proper installation and adjustment. DO NOT attempt to raise vehicle until a thorough operation check has been completed. -
Page 23: Operation And Use
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 6. Operation and use Never operate the lift with any person or equipment below. Never exceed the rated lifting capacity. Always ensure that all latches are engaged well before any attempt is made to work on or near the vehicle. -
Page 24: Standing
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 6.1.2 Standing • Press the lowering handle to engage the nearest latch position; • Always ensure that the latch in each column is engaged before any attempt is made to work on or near the vehicle. -
Page 25: Maintenance
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 7. Maintenance Only trained people who know how the lift works, can be allowed to service the lift. To service properly the lift, the following has to be carried out: •... -
Page 26: Troubleshooting
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 8. Troubleshooting A list of possible troubles and solutions is given below: Trouble: Possible Cause: Solution: Check Power on to restore if There is no power necessary The electrical wires are... -
Page 27: Parts List
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 9. Parts list 9.1 Explode drawing and parts list... - Page 28 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z74A110000 Power-side column Z74A120000 Off-side column Z74A310000 Power-side platform assembly Z74A320100 Off-side platform assembly Z75A200000 Transverse beam assembly 0205020 Washer D.16 - GB/T97.1 0208011 Locking washer D.16 - GB/T93...
-
Page 29: Transverse Beam And Parts List
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z74A021200 Extension lever 0603017 Knob 0204005 Self-locking nut M10 Z72A300101 Angle plate Z72A300102 Rubber pad 0206025 Screw M5X18 - GB/T818 0203031 Nut M5 - GB/T6170... - Page 30 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z74A210000 Transverse beam Z72E200001 Shaft 1 Z72E200002 Shaft 2 Z72E200003 Bush Z72E220000 Safety pawl A Z72E200005 Spacer Z72E200004 Nylon roller Z74A310002 Cable pulley Z72E310003 Washer...
-
Page 31: Power-Side Runway And Parts List
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z74A200004 Spring Z71P211811 Spring Z74A200009 Shaft 0203029 Nut M8 Z74A200007 Cover 9.3 Power-side runway and parts list... - Page 32 STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z74A310100 Power-side platform Z74A310001 Washer Z72E310003 Washer Z74A310002 Cable pulley 0210119 Bush 3520 Z75A310102 Pulley shaft Z75A310101 Pulley shaft Z71P310002 Spacer Z75A310009 Shaft 0215021 Greaser M8X1...
-
Page 33: Hydraulic Line And Parts List
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 9.4 Hydraulic line and parts list Item Part No. Description 0302025 Hydraulic power unit Z74AY63000 Hydraulic cylinder 7532-B Valve housing 0303075 90° bulkhead fi tting 1/4 ZW1600 Hydraulic hose 1/4 L=1600... -
Page 34: Special Notes
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions 10. Special notes 10.1 Environmental damage Only appropriately trained personnel may dismantle and dispose of the unit. 10.2 Dismantling To dismantle the product, proceed as follows: ELECTRICAL HAZARD! When carrying out any decommissioning and dismantling work on the unit, switch off all power supply connections, ensure they cannot be switched on unintentionally and verify that they have been disconnected. -
Page 35: Noise Declaration
STRATUS 4 post parking Lift Installation & Operation & Maintenance Instructions separately according to material and in line with local laws and environmental regulations. 10.4 Noise declaration Sound power level: LWA<85dB Accompanied uncertainly K=4 dB This measurement made in according with EN ISO 3746:1995 Applied operating conditions are: With the rated load, the pump motor rotate.
