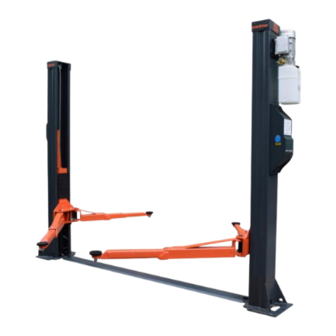

Model No. SAE-F10XE
Chain drive 2 post Lift
Single point electric release
Lifting Capacity 10,000 lbs
mportant Note
I
1.
This equipment can not be installed, operated or repaired without reading instructions.
2.
Electricity must be hooked up by certified electrician.
3.
Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stratus SAE-F10XE
Summary of Contents for Stratus SAE-F10XE
- Page 1 Model No. SAE-F10XE Installation & Operation & Maintenance Instructions Chain drive 2 post Lift Single point electric release Lifting Capacity 10,000 lbs mportant Note This equipment can not be installed, operated or repaired without reading instructions. Electricity must be hooked up by certified electrician.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Packing, transport and storage ............................. 4 Packing ................................. 4 Transport ................................4 Storage .................................. 4 Technical specifications ..............................5 Equipment layout ..............................6 Safety .................................... 7 Important notices ..............................7 Qualified personnel ............................. 7 Danger notices ..............................7 Training ................................ - Page 3 Vehicle positioning ............................17 Lifting .................................. 17 Standing ................................17 Lowering ................................17 Maintenance ................................18 Ordinary maintenance ............................18 Periodic maintenance ............................18 Troubleshooting ................................19 Parts list ..................................20 Main column and parts list ..........................20 Special notes ................................23 10.1 Environmental damage .............................
-
Page 4: Packing, Transport And Storage
Packing, transport and storage All packing, lifting, handling, transport and unpacking operations are to be performed exclusively by expert personnel with knowledge of the lift and the contents of this manual. Packing The packing of the lift is delivered in following components: a.1 base unit packed in a steel frame, wrapped up in non-scratch material, including all the accessories. -
Page 5: Technical Specifications
Technical specifications Machine model SAE-F10XE Driving mode Single Point Manual Release Lifting capacity 10,000lbs (4,500kg) Lifting Height 83.07"（2110MM） Minimum height 3.94"（100M） Lifting time About 50 sec Voltage 220V Frequency 60Hz power 2.2KW Hydraulic oil 46＃/68＃ working temperature 5-40℃ ambient humidity... -
Page 6: 2.1 Equipment Layout
2.1 Equipment layout... -
Page 7: Safety
Safety Important notices This ultra thin low lift is specially designed for lifting motor vehicles that weighs within its outmost lifting capacity. ➢ Users are not allowed to use it for any other purposes. Otherwise, we, as well as our sales agency, will not bear any responsibility for accidents or damages of the lift. -
Page 8: Training
Training Only these qualified people, who have been properly trained, can operate the lift. We are quite willing to provide ➢ professional training for the users when necessary. ➢ Attention: For environment protection, please dispose the disused oil in a proper way. Warning signs All safety warning signs attached on the machine are for the purpose of drawing the user’s attention to safety ➢... -
Page 9: Installation
Installation Only skilled technicians, appointed by the manufacturer, or by authorized dealers, must be allowed to carry out ➢ installation. Serious damage to people and to the lift can be caused if installations are made by unskilled personnel Always refer to the exploded views attached during installation. ➢... -
Page 10: Checking For Room Suitability
Checking for room suitability The lift has been designed to be used in covered and sheltered places free of overhead obstructions. ➢ The place of installation must not be next to washing areas, painting workbenches, solvent or varnish deposits. The ➢... -
Page 11: Assembly Diagram
Assembly diagram Install cables (2 Cables in total ) Note:four point five It is required that the two steel ropes be adjusted to a certain tension and consistent to ensure the synchronous movement of the two sliding tables. Hydraulic connector... - Page 12 Connect the pipe as shown in the figure and pay attention to the installation of oil pipe joint..
-
Page 13: Installation Of Power Unit
Installation of power unit Attach the power unit onto the bracket on the power side column; Secure it using nuts M10X20, the locking washers D.10 and washers D. Make the electrical connection 4.10 Make sure all wiring are same as below circuit diagram . ➢... -
Page 14: Oil Filling And Bleeding
Oil filling and bleeding 4.11 DO NOT run power unit without oil. Damage to pump can occur. If motor gets hot or sounds peculiar, stop ➢ immediately and recheck the electric connection. ➢ If the vented cap is lost or broken, order the replacement. The oil tank must be vented well. Add about 2.5 gallons of hydraulic oil to the hydraulic fluid reservoir, AW32 during winter time (cold weather), and ➢... -
Page 15: Check Before Start-Up
Check before start-up General checks Make sure that the columns are plumb; Make sure the lift anchored to the ground and all anchor bolts tightened. Make sure the electrical system feeding voltage is equal to that specified in the nameplate on the motor; ... -
Page 16: Operation And Use
Operation and use NEVER operate the lift with any person or equipment below. NEVER exceed the rate lifting capacity. NEVER lift a vehicle in any manner with less than four arms. Always ensure that the mechanical locks are engaged before any attempt is made to work on or near the vehicle. Always lift a vehicle on the lifting pads. -
Page 17: Vehicle Positioning
Vehicle positioning • Positioning the vehicle between columns; • Adjust lift arms so that the vehicle is positioned with the center gravity between the pads. Make sure the arm safeties are engaged; • Raise the lift by pressing the lifting button until the lifting adaptors contact underside of the vehicle; •... -
Page 18: Maintenance
Maintenance Only trained people who know how the lift works, can be allowed to service the lift. To service properly the lift, the following has to be carried out: use only genuine spare parts as well as equipment suitable for the work required; ... -
Page 19: Troubleshooting
Troubleshooting Troubleshooting and possible maintenance require all safety precautions specified in the absolute instructions. Problem Possible cause Solution The lift does non rise Burnt fuse Replace fuse Connect again when the pushbutton is Line current does not arrive Malfunction pressed Call Service Center in the electric plant: (motor does not run) -
Page 20: Parts List
Parts list Main column and parts list... -
Page 23: Special Notes
Special notes Environmental damage 10.1 Only appropriately trained personnel may dismantle and dispose of the unit. Dismantling 10.2 To dismantle the product, proceed as follows: ELECTRICAL HAZARD! When carrying out any decommissioning and dismantling work on the unit, switch off all power supply connections, ensure they cannot be switched on unintentionally and verify that they have been disconnected.
