Model No. SAE-UT8000
Full Rise Ultra Thin
Scissor Lift
Lifting Capacity 8000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stratus SAE-UT8000
Summary of Contents for Stratus SAE-UT8000
- Page 1 Model No. SAE-UT8000 Installation & Operation & Full Rise Ultra Thin Maintenance Instructions Scissor Lift Lifting Capacity 8000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
- Page 2 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions INDEX 1. Important safety instructions…………………………………………………………………………………..…2~3 1.1 Important notices 1.2 Qualified personnel 1.3 Danger notices 1.4 Training 1.5Warning signs 2. Overview of the lift………………………………………………….………….………………………………………..4 2.1 General descriptions 2.2 Technical data 2.3 Construction of the lift...
-
Page 3: Important Safety Instructions
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions IMPORTANT SAFETY INSTRUCTIONS 1.1 Important notices Every Lift will offer one-year's quality warranty for the whole machine，during which any quality problem will be properly solved to the user's satisfaction. However, we will not take any responsibility for whatever bad consequence resulted from improper installation and operation, overload running or unqualified ground condition. -
Page 4: Warning Signs
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions components from the lift. Do not use if safety related components are damaged or missing. 1.3.10 Do not rock the vehicle while on the lift or remove any heavy component from vehicle that may cause excessive weight shift. -
Page 5: General Descriptions

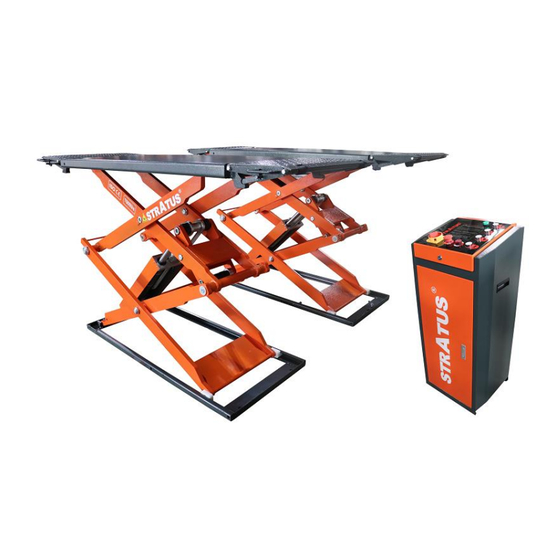

STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions OVERVIEW OF THE LIFT 2.1 General descriptions This full rise scissor lift is of pretty lower profile when at its lowest position. Its four cylinder structure makes the lowest 110mm clearance from ground come true. -
Page 6: Installation Instructions
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions INSTALLATION INSTRUCTIONS 3.1 Preparations before installation 3.1.1 Tools and equipment needed √ Electrical drill √ Open wrenches √ Screw drivers √Adjustable spanner 3.1.2 List for parts checking ---Annex 1（Packing list）... - Page 7 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Concrete thickness ≥7.87 inch Control cabinet Technical requirement: 1.concrete type 425#, 25 days’ drying period 2.concrete thickness ≥7.87 inch 3.evenness ≤0.2 inch 4.thickness and evenness of the concrete is very crucial.
- Page 8 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step3: Connect the wiring and air system Connect exterior wires as per the wiring diagram, with the black for phase wire, the blue for null wire, and the green -yellow for grounded conductor.
-
Page 9: Manual Leveling
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step4: Fill with hydraulic oil Pour into the oil tank with 16liters of anti-grinding oil. Level of the oil shall be 10mm to 40mm away from the top of the tank. (Users can... - Page 10 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions One valve open, the other closed: leveling condition A.1. Open both leveling valves and press the UP button to have both platforms raised to the highest positions. Repeat this step for two or three times.
- Page 11 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step8: Install oil hose protectors. 3.4 Items to be checked after installation. Check items Are two platforms adjusted with the same level? Are oil hose tightly connected? Are all electric connections correct?
-
Page 12: Descriptions Of Control Box
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 4.2 Descriptions of control box 4.3 Flow chart for operation Lowering Raising Turn on the power switch Press UP button Motor drives the gear pump work Cylinder piston drives the platform move up The lift is raised 4.4 Operation instructions... -
Page 13: Emergency Lowering In Case Of No Power
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 6. Having raised the vehicle to the required height, operators must press the “Emergency stop” button until the power indicator is off and check again the stability of the vehicle before performing maintenance or repair work, Lower the lift 1. -
Page 14: Troubleshooting
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 2. Connect the optional hand pump to hydraulic block at the point where the removable plug used to be fitted. 3. Press the handle of the optional hand pump to raise the platform to have the safety teeth unlocked. Then, pull up the safety teeth with steel rope to release the safety lock. -
Page 15: Maintenance
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Oil level is too low. Add oil. Motor runs but will not The oil hose became loose or dropped off. Tighten it. raise The cushion valve became loose or jammed. - Page 16 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 6.1. Daily checking items before operation The user must perform daily check. Daily check of safety system is very important – the discovery of device failure before action could save your time and prevent you from great loss, injury or casualty.
- Page 17 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex2, Overall diagram Annex 3, Hydraulic working system 1. Emergent unloading valve 2. Electrical unloading valve 3. One-way valve 4. Overflow valve 5. Lowering throttle valve 6. Oil supplementing ball valve 7.
- Page 18 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex4, Wiring diagram Single Phase...
-
Page 19: Three Phase
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Three Phase... - Page 20 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 21 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 22 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 23 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex5, Diagram for air supply connection Annex 6, Separated drawings for the lift For the pump: DESCRIPTION Motor Hydraulic block Overflow valve Fitting Cushion valve Absorbing oil hose Oil filter...
- Page 24 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions For mechanical assembly Material# Name Drawing# Property Note Base plate A ON-7801-A1-B1 Welded Rotor shaft ON-7801-A1-B5 Movable arm C ON-7801-A2-B3 Welded Hex head cone screw M6*10 GB/T78-2000 Standard Total qty...
- Page 25 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Material# Name Drawing# Property Note Joint shaft D ON-7801-A2-B12 Oil nozzle M8*1 JB/T7940.1-1985 Standard Same as item 11 Joint shaft C ON-7801-A2-B6 Bearing 3025 SF-1 Standard Same as item 9...
- Page 26 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Material# Name Drawing# Property Note Hex nut M16 GB/T41-2000 Standard With expansion bolt Washer 16 Standard With expansion bolt Expansion bolt M16*160 Standard Safety block connector ON-7801-A4-B18 Welded Cross cap screw M5*10...
- Page 27 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 7, Spare parts list Spare parts list-electrical system Material # Name Spec. Unit Qty/set Pictures Power switch LW26GS-20/04 Button Y090 Power indicator AD17-22G-AC24 Transformer JBK-63VA220V-24V Same outlook as item7...
- Page 28 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Material # Name Spec. Unit Qty/set Pictures Bridge rectifier KBPC5A-35A Capacitor 4700UF/50V Control box Bigger Relay MY4NJ/DC24 Relay holder PYF14AE Limits switch 8108（TZ8108） Spare parts list---mechanical part Material# Name...
