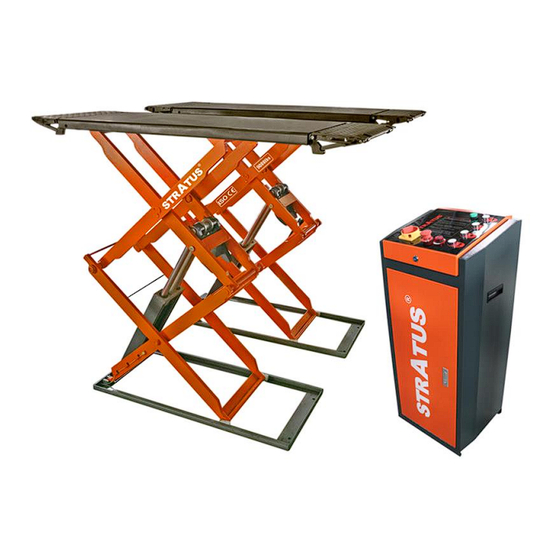

Model No. SAE-UT9000
Full Rise Ultra Thin
Scissor Lift
Lifting Capacity 9000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Table of Contents
Related Manuals for Stratus SAE-UT9000
Summary of Contents for Stratus SAE-UT9000
- Page 1 Model No. SAE-UT9000 Installation & Operation & Maintenance Instructions Full Rise Ultra Thin Scissor Lift Lifting Capacity 9000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
-
Page 2: Table Of Contents
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions TABLE OF CONTENTS 1. Safety instructions ................................4 1.1 Important declarations ..............................4 1.2 Qualified operator and user illustrations........................4 1.3 Danger notices ................................4 1.4 Warning signs ................................5 1.5 Noise standard ................................ - Page 3 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Foreword Notes on the operating instructions The present ORIGINAL OPERATING INSTRUCTIONS are designed to provide sufficient instruction for the safe operation of the product. The information is provided clearly and concisely. The chapters are arranged by letter and the pages are numbered continuously.
-
Page 4: Safety Instructions
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 1. Safety instructions 1.1 Important declarations During the warranty period, any quality problem will be properly solved to the user's satisfaction. However, we will not take any responsibility for whatever bad consequence resulted from improper installation and operation, overload running or unqualified floor foundation. -
Page 5: Warning Signs
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions • Make sure the safety latches are in lock position before any attempt to work near or under the vehicle. • Place the lifting pads to the positions suggested by vehicle makers. Operators are required to increase the vehicle slowly to make certain it will not slant, roll-over or fall off before lifting the vehicle to the desired height.1.3.11 Always keep checking the lift in case of any damage of the parts. -
Page 6: Product Overview
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 2. Product overview 2.1 Product description This model is on-ground design for user easy installation. Its four cylinders structure makes the lowest 120mm (4.7”) clearance from ground come true. Its platform extension deign is not only used as a ramp, but also serve as an extended part of the platform for much longer vehicles. -
Page 7: Installation Instructions
But if you do not contact us and proceed with installation after knowing lack of parts, Stratus as well as our dealers will not bear any responsibility for this and will charge for... - Page 8 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 3.1.3 Ground conditions The lift should be fixed on a smooth and solid concrete ground with its strength more than 3000psi, tolerance of flatness less than 5mm (0.2”) and minimum thickness of 200mm (7.9”). In addition, newly built concrete ground must undergo more than 28days’...
-
Page 9: Precautions During Installation
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 3.2 Precautions during Installation • Joints of oil hose and electric wire must be firmly connected in order to avoid leakage and wire loosing • All bolts should be firmly screwed up. - Page 10 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 11 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step3: Connect the electrical wire and air supply system Connect exterior wires as per the wiring diagram, with the black for phase wire, the blue for null wire, and the green -yellow for grounding wire.
- Page 12 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step4: Fill up hydraulic oil Pour into the oil tank with 18 liters of anti-grinding oil. The oil level shall be 10mm to 40mm away from the top of the tank. (Users can measure it by the feeler...
- Page 13 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Leveling method： 1. Open both leveling valves and press the UP button to have both platforms raised to the highest positions. Repeat this step for two or three t times. This step could take time because there’s air in cylinders and no load on platforms.
- Page 14 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Step8: Install oil hose protectors Place oil hose guard plates according the bellow picture. There is five pieces in total. Drill installation holes for expansion plugs according to the reserved holes on protectors of the oil horse. Remove the debris and dust.
-
Page 15: Operation Instructions
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 4. Operation instructions 4.1 Operation precautions 1. Check all the joints of oil hose. Only when there is no leakage, the lift can only be used. 2. If there is any problem with the safety device, the lift shall not be used. -
Page 16: Flow Chart For Operation
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 4.3 Flow chart for operation Rising Lowering Start Start Turn on the Power Switch Turn on the Power Switch Press UP Button Press Down Button I Motor Starts Pre ss DO WN b ut t o n when the... -
Page 17: Emergency Lowering
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Lower the lift 1. Switch on emergency stop switch. 2. Press the DOWN I button to lower the lift. It will stop lowering when clearance between the platforms and the ground reaches to 500mm. - Page 18 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Pneumatic safety lock is engaged. 1. Take down the removable plug from the hydraulic block. 2.Connect to the upper separate jack 3.Pull the safety lock teeth with certain tools to prevent it from engaging the teeth bar.
- Page 19 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Use a wench to unscrew loose the spool of the solenoid unloading valve fixed on the hydraulic station.
-
Page 20: Trouble Shooting
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 5. Trouble Shooting ATTENTION: If the trouble could not be fixed by yourself, please do not hesitate to contact us for help. We will offer our service at the earliest time we can. By the way, your troubles will be judged and solved much faster if you could provide us more details or pictures of the trouble. -
Page 21: Maintenance
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 6. Maintenance Easy and low cost routine maintenance can ensure the lift work normally and safely. Following are requirements for routine maintenance. You may choose the frequency of routine maintenance by consulting your lift’s working conditions and time. - Page 22 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 3. Monthly checking items • Check whether the expansion bolts well anchored. • Check the sealing of the hydraulic system and screw firm the joints if it leaks. •...
-
Page 23: Annex
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions 7. Annex Annex 1. Packing List of the whole lift Name Drawing#/Size Material# Description Note Low-profile scissor lift ON-7801/4 Assembly A pack Protection cover A ON-7801-A9 Q235A Protection cover B... -
Page 24: Annex 3. Hydraulic Working System
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 3. Hydraulic working system 1. Emergent unloading valve 2. Electrical unloading valve 3. One-way valve 4. Overflow valve 5. Lowering throttle valve 6. Oil supplementing ball valve 7. Oil supplementing ball valve 8. -
Page 25: Annex 4. Wiring Diagram
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 4. Wiring diagram Single phase... - Page 26 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Three phase...
- Page 27 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 28 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
- Page 29 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions...
-
Page 30: Annex 5. Diagram For Air Supply Connection
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 5. Diagram for air supply connection Air Filter Solenoid Unloading Valve Driving Cylinder Locking Assistant Cylinder Locking Annex 6. Exploded view of the whole lift For the pump:... - Page 31 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions For the Car Lift:...
- Page 32 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Material# Name Drawing# Property Note Base plate A ON-7801-A1-B1 Welded Rotor shaft ON-7801-A1-B5 Movable arm C ON-7801-A2-B3 Welded Hex head cone screw M6*10 GB/T78-2000 Standard Total qty Standard Self-lock screw...
- Page 33 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Rotor shaft ON-7801-A2-B15 Wheel ON-7801-A2-B16 Q235A ON-7801-A2-B17 Nylon1010 Movable arm B ON-7801-A2-B1 Welded Cylinder connector A ON-7801-A4-B11 Safety teeth ON-7801-A4-B2 Welded Oil connector B ON-7801-A4-B1 Oil nozzle M8*1 JB/T7940.1-1985...
- Page 34 STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Washer 16 Standard With expansion bolt Expansion bolt M16*160 Standard Safety block connector ON-7801-A4-B18 Welded Cross cap screw M5*10 GB/T78-2000 Standard Assembly Air cylinder CJPB 6*15* Swivel PL6-M5 Assembly...
-
Page 35: Annex 7. Common Spare Parts List
STRATUS Full Rise Scissor Lift Installation & Operation & Maintenance Instructions Annex 7. Common spare parts list Mechanical part: Material# Name Drawing# Qty/set Description Note JB/T7940.1-1985 Straight oil cup M8*1 Standard ON-7801-A2-B17 Pad block Nylon ON-7801-A2-B13 Positioning slider Nylon 1010...
