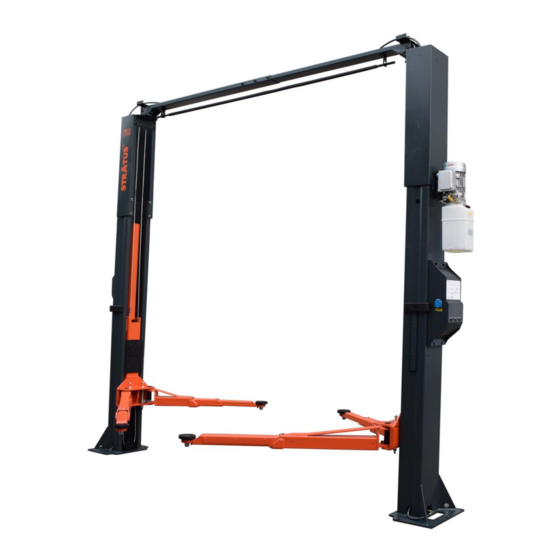

Direct drive 2 post lift single point electric release lifting capacity 10,000 lbs

Advertisement

Quick Links

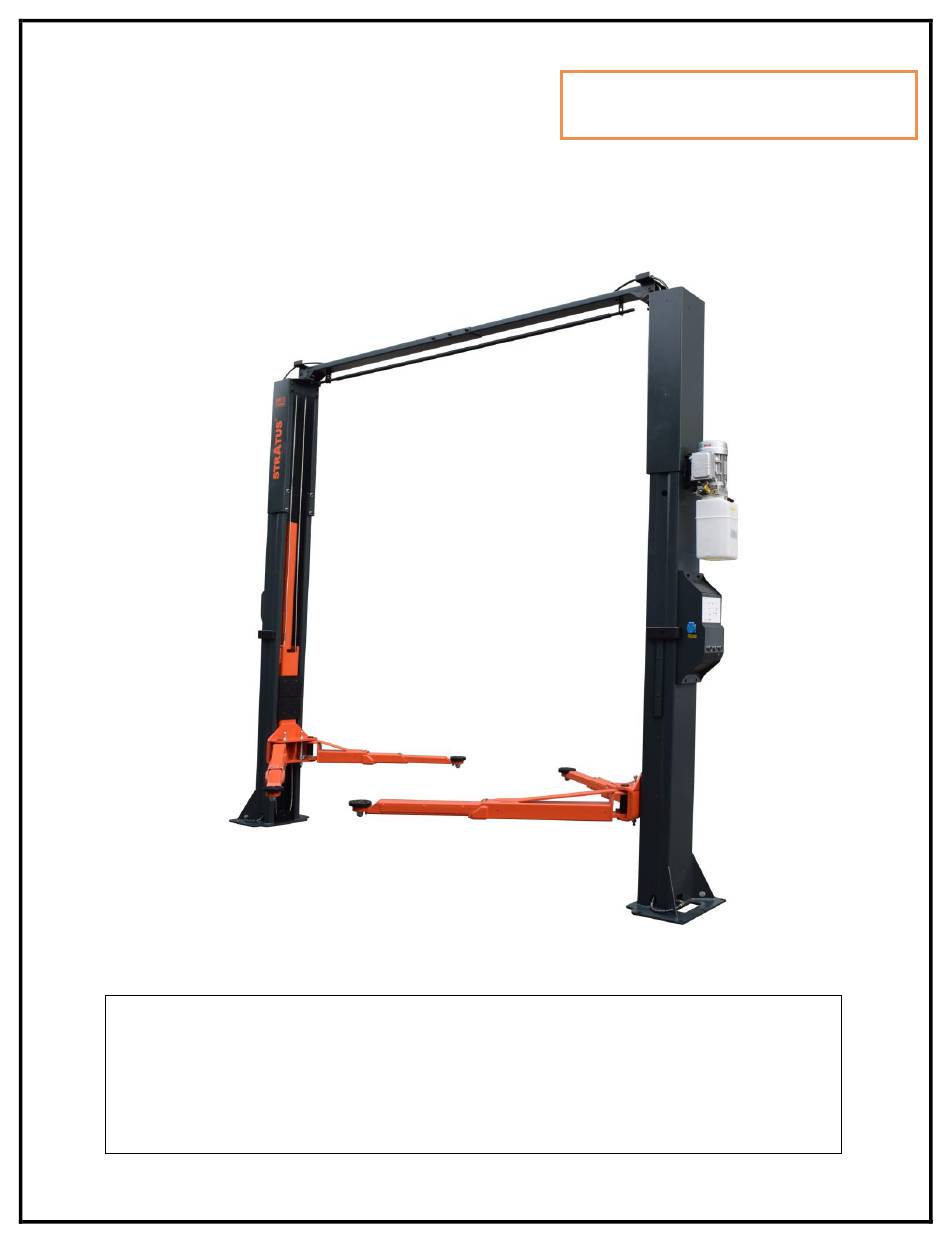

Model No. SAE-C10XE
Direct drive 2 post Lift
Single point electric release
Lifting Capacity 10,000 lbs
mportant Note
I
1.
This equipment can not be installed, operated or repaired without reading instructions.
2.
Electricity must be hooked up by certified electrician.
3.
Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAE-C10XE and is the answer not in the manual?

Questions and answers

Summary of Contents for Stratus SAE-C10XE

  • Page 1 Model No. SAE-C10XE Installation & Operation & Maintenance Instructions Direct drive 2 post Lift Single point electric release Lifting Capacity 10,000 lbs mportant Note This equipment can not be installed, operated or repaired without reading instructions. Electricity must be hooked up by certified electrician.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing, transport and storage ..........................4 Packing ................................. 4 Transport ................................4 Storage .................................. 4 Technical specifications .............................. 5 Equipment plan ..............................6 Safety .................................... 8 Important notices ..............................8 Qualified personnel ............................. 8 Danger notices ..............................8 Training ................................
  • Page 3 Operation and use ..............................19 Controls ................................19 Vehicle positioning ............................19 Lifting .................................. 20 Standing ................................20 Lowering ................................20 Maintenance................................21 Ordinary maintenance ............................21 Periodic maintenance ............................21 Troubleshooting ................................ 22 Parts list ..................................23 Main column and parts list ..........................23 Packing list .................................
  • Page 4: Packing, Transport And Storage

    Packing, transport and storage All packing, lifting, handling, transport and unpacking operations are to be performed exclusively by expert personnel with knowledge of the lift and the contents of this manual. Packing The packing of the lift is delivered in following components: a.1 base unit packed in a steel frame, wrapped up in non-scratch material, including all the accessories.
  • Page 5: Technical Specifications

    Technical specifications Machine model SAE-C10XE Installation method Symmetric Installation Asymmetric Installation Lifting capacity 10,000lbs (4,500kg) 10,000lbs (4,500kg) Lifting Height 83.07"(2110MM) 83.07"(2110MM) Minimum height 3.94"(100M) 3.94"(100M) Lifting time About 50 sec About 50 sec Voltage 220V 220V Frequency 60Hz 60Hz power 2.2KW...
  • Page 6: Equipment Plan

    Equipment plan Symmetric Installation...
  • Page 7 Asymmetric Installation...
  • Page 8: Safety

    Safety Important notices This ultra thin low lift is specially designed for lifting motor vehicles that weighs within its outmost lifting capacity. ➢ Users are not allowed to use it for any other purposes. Otherwise, we, as well as our sales agency, will not bear any responsibility for accidents or damages of the lift.
  • Page 9: Training

    Training Only these qualified people, who have been properly trained, can operate the lift. We are quite willing to provide ➢ professional training for the users when necessary. Attention: For environment protection, please dispose the disused oil in a proper way. ➢...
  • Page 10: Installation

    Installation ➢ Only skilled technicians, appointed by the manufacturer, or by authorized dealers, must be allowed to carry out installation. Serious damage to people and to the lift can be caused if installations are made by unskilled personnel ➢ Always refer to the exploded views attached during installation. Tool required Rotary Hammer Drill D.20 Carpenter’s Chalk...
  • Page 11: Checking For Room Suitability

    Checking for room suitability The lift has been designed to be used in covered and sheltered places free of overhead obstructions. ➢ The place of installation must not be next to washing areas, painting workbenches, solvent or varnish deposits. The ➢...
  • Page 12: Assembly Diagram

    Assembly diagram Symmetric Installation Asymmetric Installation Assemble columns Assemble main column & extension column, and then stand up the 2 columns (the column with the power unit base ➢ plate is the main column and the other one is the vice column) Note: Don't drill anchor bolts holes or install anchor bolts now.
  • Page 13: Installation Overhead Top Beam

    Installation overhead top beam 1. Assemble overhead top beam. NOTE: The bolts run from inside of the column and then fasten the nuts from outside of the column. 2. Install the overhead beam cable pulley Warning: Symmetrical installation and asymmetrical installation of the cable pulley positions are not universal. In-correct installation of the pulley positions may cause damage to the cable or the lift.
  • Page 14: Position Columns

    Position columns ➢ Check if the columns are vertical to the ground with level, insert thin shims (come with package) to adjust when necessary Symmetric installation Asymmetric installation Adjust carriage 4.10 Raise the carriage to the 1st locking position located at the bottom of the column . ➢...
  • Page 15: Install Cables (2 Cables In Total )

    Install cables (2 Cables in total ) 4.11 Symmetric Installation Cable Routing Asymmetric Installation Cable Routing Routing the safety release cable 4.12 The safety lock has been pre-installed. Install safety lock release cable to connect the safety lock on the main column and vice column. Install safety lock cover.
  • Page 16: Installation Of Power Unit

    Installation of power unit 4.13 Attach the power unit onto the bracket on the power side column; Secure it using nuts M10X20, the locking washers D.10 and washers D. Connection of hydraulic hoses 4.14 Connect the longer hose in between the 2 cylinders, connect the short hose in between the cylinder and the power unit.
  • Page 17: Oil Filling And Bleeding

    Oil filling and bleeding 4.16 DO NOT run power unit without oil. Damage to pump can occur. If motor gets hot or sounds peculiar, stop immediately and recheck the electric connection. If the vented cap is lost or broken, order the replacement. The oil tank must be vented well. Add about 2.5 gallons of hydraulic oil to the hydraulic fluid reservoir, AW32 during winter time (cold weather), and AW46 during summer time (hot weather).
  • Page 18: Check Before Start-Up

    Check before start-up General checks Make sure that the columns are plumb; Make sure the lift anchored to the ground and all anchor bolts tightened. Make sure the electrical system feeding voltage is equal to that specified in the nameplate on the motor; Make sure the electric system connection in conformity of the electric plan shown as the electric diagram and for proper grounding.
  • Page 19: Operation And Use

    Operation and use NEVER operate the lift with any person or equipment below. NEVER exceed the rate lifting capacity. NEVER lift a vehicle in any manner with less than four arms. Always ensure that the mechanical locks are engaged before any attempt is made to work on or near the vehicle. Always lift a vehicle on the lifting pads.
  • Page 20: Vehicle Positioning

    Vehicle positioning Positioning the vehicle between columns; Adjust lift arms so that the vehicle is positioned with the center gravity between the pads. Make sure the arm safeties are engaged; Raise the lift by pressing the lifting button until the lifting adaptors contact underside of the vehicle; Make sure the vehicle is secured Lifting Raise the lift by pushing the lifting button until reaching the desire height.
  • Page 21: Maintenance

    Maintenance Only trained people who know how the lift works, can be allowed to service the lift. To service properly the lift, the following has to be carried out: use only genuine spare parts as well as equipment suitable for the work required; follow the scheduled maintenance and check periods shown in the manual;...
  • Page 22: Troubleshooting

    Troubleshooting Troubleshooting and possible maintenance require all safety precautions specified in the absolute instructions. Problem Possible cause Solution The lift does non rise Burnt fuse Replace fuse Connect again when the pushbutton is Line current does not arrive Malfunction pressed Call Service Center in the electric plant: (motor does not run)
  • Page 23: Parts List

    Parts list Main column and parts list...
  • Page 26: Packing List

    Packing list...
  • Page 27: Special Notes

    Special notes Environmental damage 10.1 Only appropriately trained personnel may dismantle and dispose of the unit. Dismantling 10.2 To dismantle the product, proceed as follows: ELECTRICAL HAZARD! When carrying out any decommissioning and dismantling work on the unit, switch off all power supply connections, ensure they cannot be switched on unintentionally and verify that they have been disconnected.
