Model No. SAE-F10P

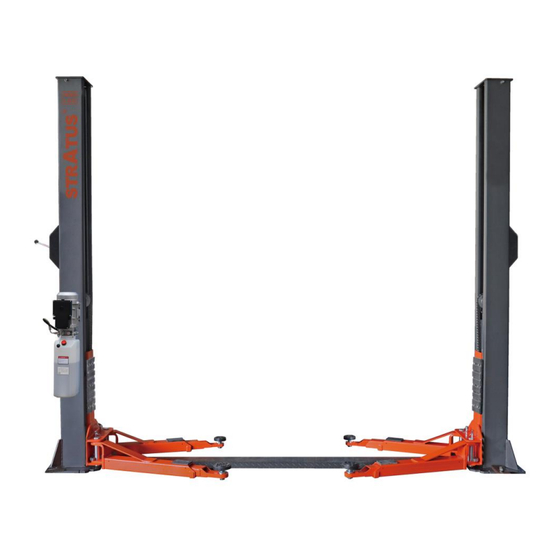

Chain drive 2 post Lift
Single Point Manual Release
Lifting Capacity 10,000 lbs
Important Note
1. This equipment can not be installed, operated or repaired without reading instructions.
2. Electricity must be hooked up by certified electrician.
3. Do not use this equipment beyond its rated capacity.
Installation & Operation &
Maintenance Instructions
Advertisement
Table of Contents
Related Manuals for Stratus SAE-F10P
Summary of Contents for Stratus SAE-F10P
- Page 1 Model No. SAE-F10P Installation & Operation & Maintenance Instructions Chain drive 2 post Lift Single Point Manual Release Lifting Capacity 10,000 lbs Important Note 1. This equipment can not be installed, operated or repaired without reading instructions. 2. Electricity must be hooked up by certified electrician.
-
Page 2: Table Of Contents
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions TABLE OF CONTENTS 1. Packing, transport and storage ............................5 1.1 Packing ....................................5 1.2 Transport ................................... 5 1.3 Storage ....................................5 2. Description of the machine ............................... 6 2.1 Fixed structure ................................. - Page 3 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 10.1 Environmental damage ............................... 42 10.2 Dismantling ................................... 42 10.3 Disposal ..................................42 10.4 Noise declaration ................................. 43...
- Page 4 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Foreword Notes on the operating instructions The present ORIGINAL OPERATING INSTRUCTIONS are designed to provide sufficient instruction for the safe operation of the product. The information is provided clearly and concisely. The chapters are arranged by letter and the pages are numbered continuously.
-
Page 5: Packing, Transport And Storage
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 1. Packing, transport and storage All packing, lifting, handling, transport and unpacking operations are to be performed exclusively by expert personnel with knowledge of the lift and the contents of this manual. -
Page 6: Description Of The Machine
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 2. Description of the machine The electro-hydraulic 2-post lift is a fixed installation. This means that it is anchored to the ground and built for lifting and positioning automobiles and vans at a certain height off the ground. -
Page 7: Safety Device
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions A maximum pressure valve. Oil tank An oil delivery and return flexible pipe to the cylinders feeding circuit Note: The oil delivery pipe may be under pressure. Fig.3 2.5 Safety device... -
Page 8: Technical Specifications
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3. Technical specifications CAPACITY 10,000 lbs (4,500kg) Max. lifting height with no pad extension 74 7/8” (1900mm) 3 15/16” (100mm) Min. adaptor height Overall height 111 1/4” (2824mm) Overall width 134 1/4”... - Page 9 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Fig.5 Layout Fig. 4...
-
Page 10: Safety
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 4. Safety 4.1 Important notices This 2-posts lift is specially designed for lifting motor vehicles that weighs within its outmost lifting capacity. Users are not allowed to use it for any other purposes. Otherwise, we, as well as our sales agency, will not bear any responsibility for accidents or damages of the lift. -
Page 11: Warning Signs
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 4.5 Warning signs All safety warning signs attached on the machine are for the purpose of drawing the user’s attention to safety operation. The labels must be kept clean and need to be replaced when they are worn-out or have dropped. Read... -
Page 12: Installation
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5. Installation Only skilled technicians, appointed by the manufacturer, or by authorized dealers, must be allowed to carry out installation. Serious damage to people and to the lift can be caused if installations are made by unskilled personnel. -
Page 13: Checking For Room Suitability
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5.2 Checking for room suitability The lift has been designed to be used in covered and sheltered places free of overhead obstructions. The place of installation must not be next to washing areas, painting workbenches, solvent or varnish deposits. The installation near to rooms, where a dangerous situation of explosion can occur, is strictly forbidden. -
Page 14: Anchoring Columns
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5.6 Anchoring columns Use the base plate on the column as a guide, drill each hole in the concrete approximately 6” deep with rotary • hammer drill D.20. To assure full holding power, do not ream the hole or allow drill to wobble;... -
Page 15: Routing The Equalizer Cables
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Note: Anchor bolts driven into the ground at least 150mm. Drilling Cleaning Bolting Fig. 7 5.7 Routing the equalizer cables The equalizer cables should be checked weekly for equal tension. Failure to do this will cause uneven lifting. -
Page 16: Install Limit Switch
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5.8 Install limit switch 1. View of the limiter switches (Fig.9): Limiter switch is installed inside of main column Connect to motor Wire# A1 & R Fig. 9 2. - Page 17 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3. Connect the limiter switch wire to the motor: 3.1 Open the cover of the motor (Fig. 11) Fig. 11 3.2 Disconnect the ground wire, take out the AC contactor (Fig. 12).
- Page 18 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3.3 Remove the wire between A1 and No.3 shows as above picture (Fig. 13). Fig. 13 3.4 Replace the original short power cord with your own power cord if necessary (Fig. 14).
- Page 19 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3.5 Connect the ground wire on the ground stud located at lower right corner (Fig. 15). Fig. 15 3.6 Remove the white wire sleeve on the right side of the motor (Fig. 16).
- Page 20 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3.7 Put the limiter switch wire sleeve on the left side of the motor (Fig.17). Fig. 17 3.8 Connect limiter switch wire# A1 to the A1 point of the AC contactor (Fig. 18).
- Page 21 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3.9 Connect the limiter switch wire# R to the NO.3 point of the power switch (Fig. 19). Fig. 19 3.10 Power cord from right side of the motor (Fig. 20).
-
Page 22: Routing The Safety Release Cable
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 3.11 Install the AC contactor and the cover of the motor back on (Fig. 21). Fig. 21 5.9 Routing the safety release cable 1.The safety lock has been pre-installed. -
Page 23: Installation Of Power Unit
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5.10 Installation of power unit • Attach the power unit onto the bracket on the power side column; • Secure it using nuts M10X20, the locking washers D.10 and washers D. 10. -
Page 24: Oil Filling And Bleeding
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Fig 25 Power Unit Wiring Diagram (Voltage: 220V) 5.13 Oil filling and bleeding DO NOT run power unit without oil. Damage to pump can occur. If motor gets hot or sounds peculiar, stop immediately and recheck the electric connection. -
Page 25: Installation Of Lifting Arms And Adjustment Of Arm Locks
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Fig 26 **Important Information** 7 Pressure Valve: Clockwise adjustment increases pressure to make the power unit to have more power, counterclockwise adjustment decreases pressure to make the power unit to have less power. - Page 26 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Loosen the Socket Bolt Fig. 27 Snap ring Fig. 28 Use the 8# socket head wrench Install lifting arms to loosen the socket bolt Locking the bolts after moon...
-
Page 27: Check Before Start-Up
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 5.15 Check before start-up 5.15.1 General checks • Make sure that the columns are plumb; • Make sure the lift anchored to the ground and all anchor bolts tightened. -
Page 28: Operation And Use
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 6. Operation and use NEVER operate the lift with any person or equipment below. NEVER exceed the rate lifting capacity. NEVER lift a vehicle in any manner with less than four arms. Always ensure that the mechanical locks are engaged before any attempt is made to work on or near the vehicle. -
Page 29: Standing
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 6.4 Standing • Press the lowering lever to engage the nearest lock position; • Always ensure that the lock in each column is engaged before any attempt is made to work on or near the vehicle. -
Page 30: Maintenance
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 7. Maintenance Only trained people who know how the lift works, can be allowed to service the lift. To service properly the lift, the following has to be carried out: •... -
Page 31: Troubleshooting
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 8. Troubleshooting Troubleshooting and possible repairs require absolute compliance with ALL THE SAFETY PRECAUTIONS indicated in chapter 7 “MAINTENANCE” and chapter 4 “SAFETY”. Problem Possible cause Solution The lift does non rise... -
Page 32: Parts List
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 9. Parts list 9.1 Explode drawing and parts list... - Page 33 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Item Part No. Description Z11G101000 Power-side column Z11G102000 Off-side column Z11G320000 Short arm assembly Z11G310000 Long arm assembly Z31B330000 Lifting adaptor Z11G500100 Arm shaft Z11G410101 Base plate Z11G510100...
-
Page 34: Power Side Column And Parts List
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 9.2 Power side column and parts list... - Page 35 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Power-Side Column Item Part No. Description Z11G111000 Main Column Z11G210000 Main carriage assembly Z11G131100 Top cover Z31A110004 Roller Z11G520000 Pulley base Z11B113000 Safety rack Z11B114000 Safety hook Z11B110002...
- Page 36 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 0201061 Screw M12X30 - GB/T5783 0205013 Washer D.12 - GB/T97.1 0204007 Nut M12 - GB/T889.1 0203023 Nut M12 - GB/T6170 0202136 Screw M5X65 - GB/T70.1 0204002 Nut M5 - GB/T889.1...
-
Page 37: Off Side Column And Parts List
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 9.3 Off side column and parts list... - Page 38 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions Off-Side Column Item Part No. Description Z11G121000 Slave Column Z11G220000 Slave carriage assembly Z11G131100 Top cover Z31A110004 Roller Z31A110003A ABS cover Z11G520000 Pulley base Z11G161100 Support Z11B122000 Safety rack...
- Page 39 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 0201061 Screw M12X30 - GB/T5783 0205013 Washer D.12 - GB/T97.1 0204007 Nut M12 - GB/T889.1 0206036 Screw M6X8 - GB/T818 0206001 Screw M8X12 - GB/T818 0202136 Screw M5X65 - GB/T70.1 0204002 Nut M5 - GB/T889.1...
-
Page 40: Carriage And Parts List
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 9.4 Carriage and parts list Item Part No. Description Z33A211000 Carriage Z11G210001 Slider Z23B711001 Rubber pad Z23A200003 Toothed gear Z11G200004 Arm lock release pin Z23A200005 Spring Z23A200006 Release ring... -
Page 41: Arm Assembly And Parts List
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 9.5 Arm assembly and parts list Arm Assembly + Adaptor Item Part No. Description Long arm frame – single extension Z11G311000 Z11G312000 Long arm outer extension Z23A310001 Anti-rotating gear... -
Page 42: Special Notes
STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions 10. Special notes 10.1 Environmental damage Only appropriately trained personnel may dismantle and dispose of the unit. 10.2 Dismantling To dismantle the product, proceed as follows: ELECTRICAL HAZARD! When carrying out any decommissioning and dismantling work on the unit, switch off all power supply connections, ensure they cannot be switched on unintentionally and verify that they have been disconnected. - Page 43 STRATUS Floor Plate 2 post Lift Installation & Operation & Maintenance Instructions separately according to material and in line with local laws and environmental regulations. 10.4 Noise declaration Sound power level: LWA<85dB Accompanied uncertainly K=4 dB This measurement made in according with EN ISO 3746:1995 Applied operating conditions are: With the rated load, the pump motor rotate.
