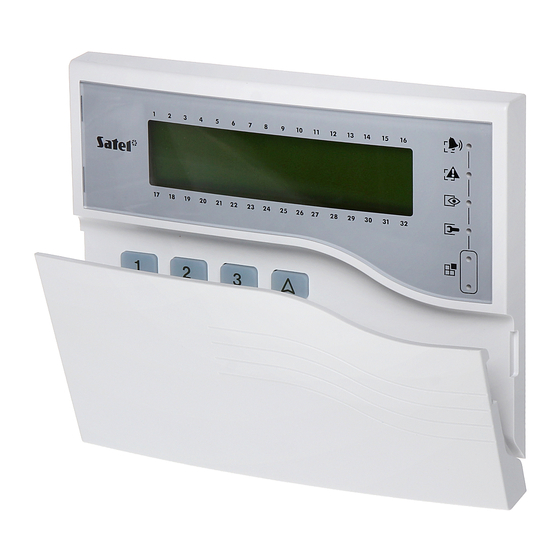

The INT-KLCDK-GR keypad is designed for operating and programming the
INTEGRA series and CA-64 control panels. It can also be used for programming the
ACU-100 wireless system controller.
The keypad comes with a large liquid-crystal display and 16 keys which enable the
operator to navigate through the menu, enter data, and start selected functions.
Backlighting is provided both for the display and the keys. The keypad is fitted with
a buzzer to confirm any keypad operations and signal events occurring in the alarm
system.
6 LED indicators show the current status of the system.
(red color) - steady light of the LED indicates alarm. When the alarm
ALARM
period expires, the alarm memory is signaled by the LED blinking. The LED
goes out after alarm reset.
(yellow color) – blinking LED indicates a failure in the alarm system.
TROUBLE
The LED is temporarily extinguished when partitions controlled by the keypad
are armed.
(green color) - the LED is blinking when some of the partitions are
ARMED
armed, and emitting steady light when all partitions controlled by the keypad
are armed.
®

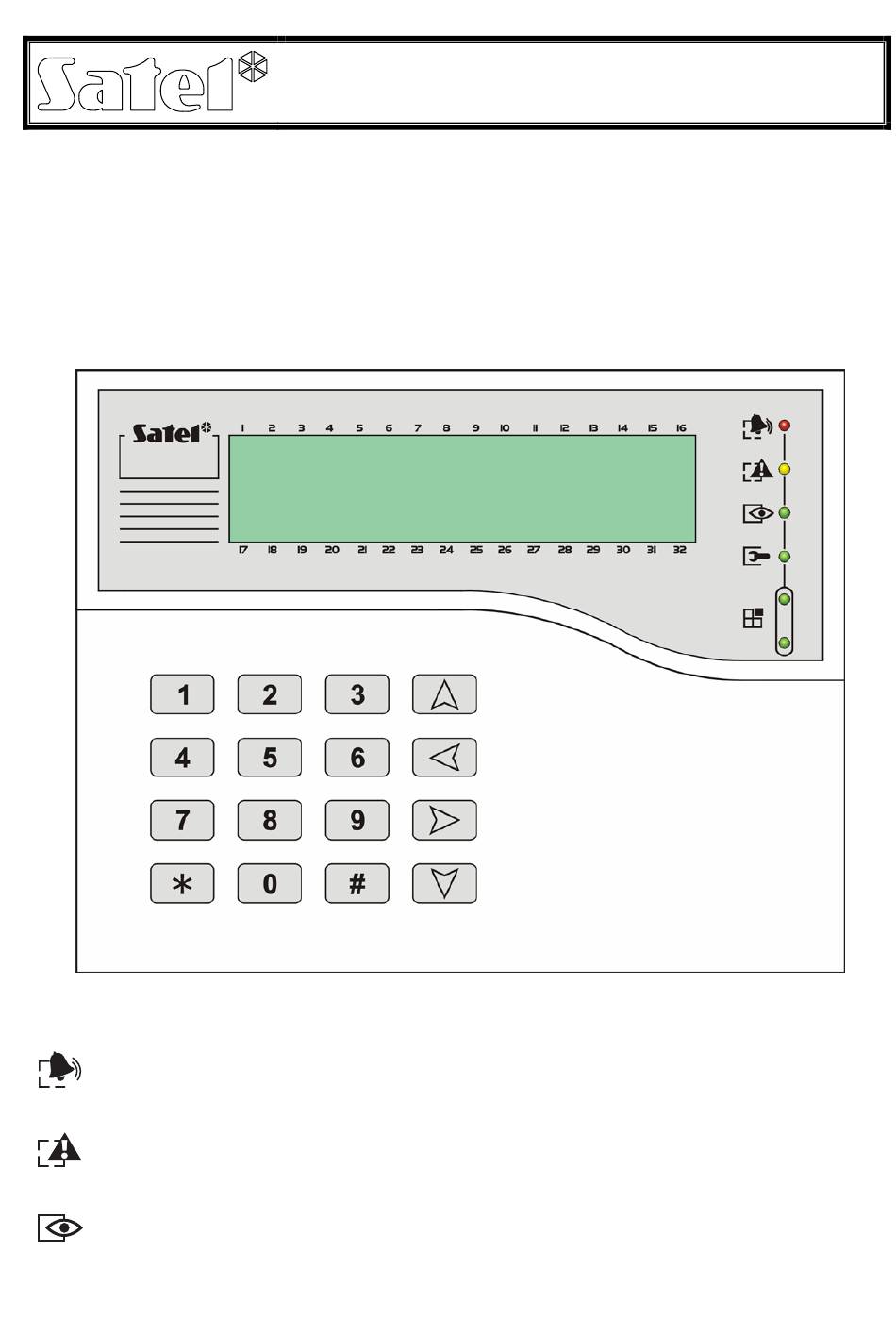

Fig. 1. View of the keypad.
KEYPAD
INT-KLCDK-GR
