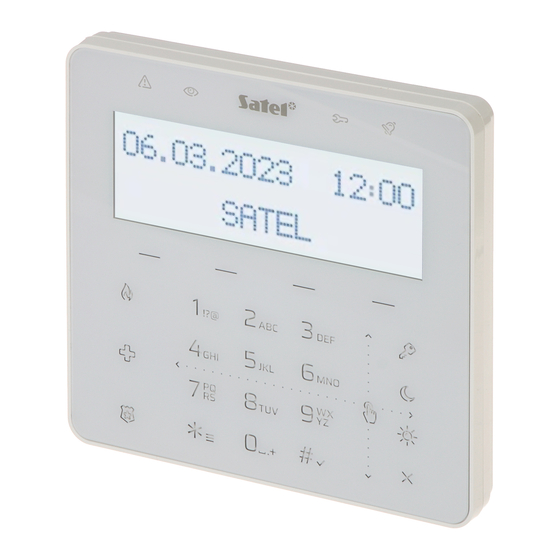

INT-KSG2R
Keypad with touch keys
Full manual is available on
our website and download the manual.
The device should be installed by qualified personnel.
Changes, modifications or repairs not authorized by the manufacturer shall void
your rights under the warranty.
Disconnect power before making any electrical connections.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.
1. Open the keypad enclosure (Fig. 1). The enclosure opening tool, shown in the illustration,
is included in the keypad delivery set.
Quick installation guide
www.satel.pl
. Scan the QR code to go to
int-ksg2r_sii_en 02/23
Advertisement
Table of Contents
Related Manuals for Satel INT-KSG2R
Summary of Contents for Satel INT-KSG2R
- Page 1 INT-KSG2R Keypad with touch keys int-ksg2r_sii_en 02/23 Quick installation guide www.satel.pl Full manual is available on . Scan the QR code to go to our website and download the manual. The device should be installed by qualified personnel. Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty.
- Page 2 INT-KSG2R SATEL 2. Place the enclosure base against the wall and mark location of the mounting holes (Fig. 2). 3. Drill the holes in the wall for wall plugs (anchors). 4. Pass the cables through the opening in the enclosure base (Fig. 2).
- Page 3 OC1, OC2 - terminals provided for future applications. Z1, Z2 - zones. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-KSG2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce SATEL sp.
